PRODUCT NAME

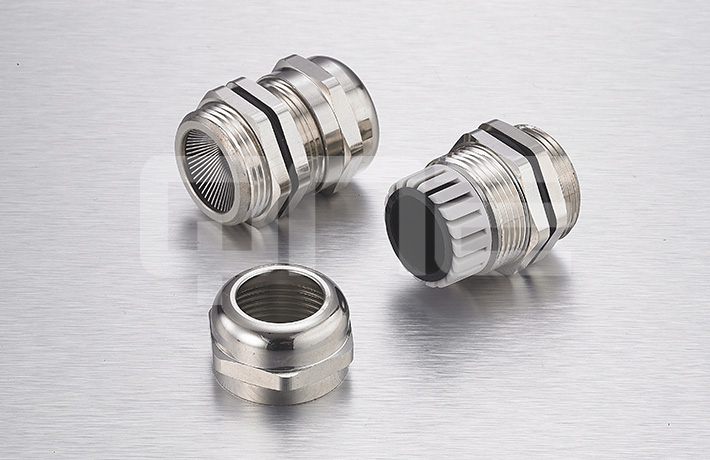

Spring type EMC brass cable glands
Thread: Metric, PG, G(PF), and NPT thread
Materials: Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
Protection degree: IP68，IP69K
Working temperature: -40℃to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
| Thread | Item.No. | Cable Range (mm) |
Thread O.D. C1 (mm) |
Thread Length C2 (mm) |
Spanner Size F1&A2 (mm) |
|---|---|---|---|---|---|
| M12x1.5 | BCGL-EMS-M12S-6.5 | 3-6.5 | 12 | 6.5 | 14/14 |
| M16x1.5 | BCGL-EMS-M16S-8 | 4-8 | 16 | 8 | 22/22 |
| M16x1.5 | BCGL-EMS-M16-10 | 5-10 | 16 | 8 | 24/22 |
| M20x1.5 | BCGL-EMS-M20S-12 | 6-12 | 20 | 8 | 22/22 |
| M20x1.5 | BCGL-EMS-M20-14 | 10-14 | 20 | 8 | 24/22 |
| M25x1.5 | BCGL-EMS-M25M-14 | 10-14 | 25 | 9 | 24/27 |
| M25x1.5 | BCGL-EMS-M25S-16 | 12-16 | 25 | 9 | 27/27 |
| M25x1.5 | BCGL-EMS-M25-18 | 14-18 | 25 | 9 | 30/27 |
| M32x1.5 | BCGL-EMS-M32-22 | 15-22 | 32 | 10 | 35/35 |
