PRODUCT NAME
EMC Metal BCG Cable Glands G(PF), NPT
Thread: Metric, PG, G(PF), and NPT thread

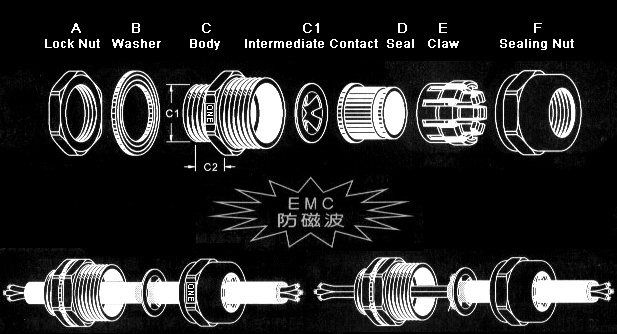

Materials: Brass with nickel plated for A. C. C1. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts.
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Application: To transfer the effect of EMI.
Seal Holes | Thread | Item. No. | Cable Range Ф |
Thread O.D. C1 |
Panel Mounting Hole |
Thread Length C2( |
Spanner Size A & F |
Std.Pkg. pcs |
---|---|---|---|---|---|---|---|---|
![]() |
G1/4 | EMC-FBA1/4-5.5 | 3-5.5 | 13.1 | 13.1~13.4 | 8 | 18/18 | 10 |
G1/4 | EMC-FBA1/4-7.8 | 4.5-8 | 13.1 | 13.1~13.4 | 8 | 18/18 | 10 | |
G3/8 | EMC-FBA3/8-07 | 4-7 | 16.6 | 16.6~16.9 | 9 | 22/22 | 10 | |
G3/8 | EMC-FBA3/8-10 | 6-10 | 16.6 | 16.6~16.9 | 9 | 22/22 | 10 | |
G1/2 | EMC-FBA1/2S-8.8 | 4-8.8 | 20.9 | 20.9~21.2 | 9.5 | 24/24 | 10 | |
G1/2 | EMC-FBA1/2S- 12.5 | 7-12.5 | 20.9 | 20.9~21.2 | 9.5 | 24/24 | 10 | |
G1/2 | EMC-FBA1/2-11 | 7-11 | 20.9 | 20.9~21.2 | 9.5 | 25/25 | 10 | |
G1/2 | EMC-FBA1/2-14 | 9-14 | 20.9 | 20.9~21.2 | 9.5 | 25/25 | 10 | |
G3/4 | EMC-FBA3/4-16 | 12-16 | 26.4 | 26.4~26.8 | 12 | 30/30 | 10 | |
G3/4 | EMC-FBA3/4-18 | 14-18 | 26.4 | 26.4~26.8 | 12 | 30/30 | 10 | |
G1 | EMC-FBA1-22 | 16-22 | 33.2 | 33.2~33.6 | 12.5 | 40/40 | 10 | |
G1 | EMC-FBA1-25 | 18-25 | 33.2 | 33.2~33.6 | 12.5 | 40/40 | 10 | |
G1 1/4 | EMC-FBA1 1/4-26 | 21-26 | 41.9 | 41.9~42.3 | 15 | 50/50 | 10 | |
G1 1/4 | EMC-FBA1 1/4-31 | 24-31 | 41.9 | 41.9~42.3 | 15 | 50/50 | 10 | |
G1 1/2 | EMC-FBA1 1/2-32 | 25-33 | 48 | 48~48.4 | 15 | 59/59 | 10 | |
G1 1/2 | EMC-FBA1 1/2-41 | 31-41 | 48 | 48~48.4 | 15 | 59/59 | 10 | |
G2 | EMC-FBA2-45 | 35-45 | 60 | 60~60.4 | 15 | 69/69 | 5 | |
G2 | EMC-FBA2-46 | 38-46 | 60 | 60~60.4 | 15 | 73/73 | 2 | |
G2 | EMC-FBA2-49 | 40-50 | 60 | 60~60.4 | 15 | 73/73 | 2 | |
NPT 1/4 | EMC-NBA1/4-5.5 | 3-5.5 | 13.1 | - | 8 | 18 | 10 | |
NPT 1/4 | EMC-NBA1/4-8 | 4.5-8 | 13.1 | - | 8 | 18 | 10 | |
NPT 3/8 | EMC-NBA3/8-07 | 4-7 | 16.6 | - | 9 | 22 | 10 | |
NPT 3/8 | EMC-NBA3/8-10 | 6-10 | 16.6 | - | 9 | 22 | 10 | |
NPT 1/2 | EMC-NBA1/2S-8.8 | 4-8.8 | 20.9 | - | 9.5 | 24 | 10 | |
NPT 1/2 | EMC-NBA1/2S-12.5 | 7-12.5 | 20.9 | - | 9.5 | 24 | 10 | |
NPT 1/2 | EMC-NBA1/2-11 | 7-11 | 20.9 | - | 9.5 | 25 | 10 | |
NPT 1/2 | EMC-NBA1/2-14 | 9-14 | 20.9 | - | 9.5 | 25 | 10 | |
NPT 3/4 | EMC-NBA3/4-16 | 12-16 | 26.4 | - | 12 | 30 | 10 | |
NPT 3/4 | EMC-NBA3/4-18 | 14-18 | 26.4 | - | 12 | 30 | 10 | |
NPT 1 | EMC-NBA1-22 | 16-22 | 33.2 | - | 12.5 | 40 | 10 | |
NPT 1 | EMC-NBA1-25 | 18-25 | 33.2 | - | 12.5 | 40 | 10 | |
NPT 1 1/4 | EMC-NBA1 1/4-26 | 21-26 | 41.9 | - | 15 | 50 | 10 | |
NPT 1 1/4 | EMC-NBA1 1/4-31 | 24-31 | 41.9 | - | 15 | 50 | 10 | |
NPT 1 1/2 | EMC-NBA1 1/2-33 | 25-33 | 48 | - | 15 | 59 | 10 | |
NPT 1 1/2 | EMC-NBA1 1/2-41 | 31-41 | 48 | - | 15 | 59 | 10 | |
NPT 2 | EMC-NBA2-45 | 35-45 | 60 | - | 17 | 69 | 5 |
