    PRODUCT NAME

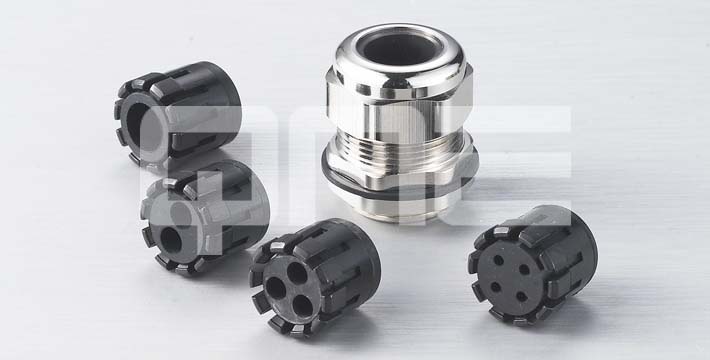

    Metal Cable Glands (Multi-hole & Flat-hole)

    Metric

    PG

    G(PF)

    NPT

    Thread: Metric, PG, G(PF), and NPT thread

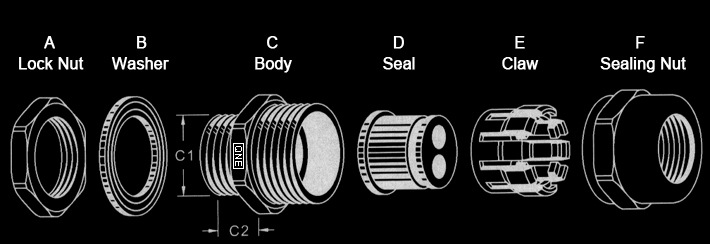

    Materials: Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts..
    Protection degree: IP68
    Working temperature: -40℃ to 100℃
    Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
    Seals: For cable outlet holes (several holes and flat), all the cables can not easily entangled and waterproof respectively.

    Seal
    Holes    		 Thread Cat No. Cable
    Range Ф    		 Thread 0.D.
    C1    		 Panel
    Mounting
    Hole    		 Cable
    Thread
    Length C2    		 Spanner
    Size
    A & F    		 Std.Pkg.
    pcs
    G1/4 FBA13 -H2-03 3~1.2 13.1 13.1~13.4 8 17/17 10
    G3/8 FBA17-H2-04 4~1.6 16.6 16.6~16.9 9 22/22 10
    G1/2 FBA21-H2-03 3.5~2 20.9 20.9~21.2 9.5 26/26 10
    G1/2 FBA21-H2-06 6~2.5 20.9 20.9~21.2 9.5 26/26 10
    G3/4 FBA26-H2-05 5~2 26.4 26.4~26.8 12 32/32 10
    G3/4 FBA26-H2-08 8.7~4.5 26.4 26.4~26.8 12 32/32 10
    G1 FBA33-H2-10 10~5 33.2 33.2~33.6 12.5 41/41 10
    NPT 3/8 NBA17-H2-04 4~1.6 17.1 - 13 22 10
    NPT 1/2 NBA21-H2-03 3.5~2 21.3 - 13 26 10
    NPT 1/2 NBA21-H2-06 6~2.5 21.3 - 13 26 10
    NPT 3/4 NBA26-H2-05 5~2 26.6 - 14 32 10
    NPT 3/4 NBA26-H2-08 8.7~4.5 26.6 - 14 32 10
    NPT 1 NBA33-H2-10 10~5 33.5 - 15 41 10
    G1/4 FBA13-H3-02 2.6~1.2 13.1 13.1~13.4 8 17/17 10
    G3/8 FBA17-H3-04 4~1.6 16.6 16.6~16.9 9 22/22 10
    G1/7 FBA21-H3-03 3.5~1.5 20.9 20.9~21.2 9.5 26/26 10
    G1/2 FBA21-H3-05 5~2 20.9 20.9~21.2 9.5 26/26 10
    G3/4 FBA26-H3-05 5~2 26.4 26.4~26.8 12 32/32 10
    G3/4 FBA26-H3-08 8~4 26.4 26.4~26.8 12 32/32 10
    G1 FBA33-H3-10 10~5 33.2 33.2~33.6 12.5 41/41 10
    NPT 3/8 NBA17-H3-04 4~1.6 17.1 - 13 22 10
    NPT 1/2 NBA21-H3-03 3.5~1.5 21.3 - 13 26 10
    NPT 1/2 NBA21-H3-05 5~2 21.3 - 13 26 10
    NPT 3/4 NBA26-H3-05 5~2 26.6 - 14 32 10
    NPT 3/4 NBA26-H3-08 8~4 26.6 - 14 32 10
    NPT 1 NBA33-H3-10 10~5 33.5 - 15 41 10
    G1/4 FBA13-H4-02 2.3~1 13.1 13.1~13.4 8 17/17 10
    G3/8 FBA17-H4-03 3~1.2 16.6 16.6~16.9 9 22/22 10
    G1/2 FBA21-H4-03 3.5~1.5 20.9 20.9~21.2 9.5 26/26 10
    G1/2 FBA21-H4-04 4.5~2 20.9 20.9~21.2 9.5 26/26 10
    G3/4 FBA26-H4-05 5~2 26.4 26.4~26.8 12 32/32 10
    G3/4 FBA26-H4-07 7~3.5 26.4 26.4~26.8 12 32/32 10
    G1 FBA33-H4-09 9~4.5 33.2 33.2~33.6 12.5 41/41 10
    NPT 3/8 NBA17-H4-03 3~1.2 17.1 - 13 22 10
    NPT 1/2 NBA21-H4-03 3.5~1.5 21.3 - 13 26 10
    NPT 1/2 NBA21-H4-04 4.5~2 21.3 - 13 26 10
    NPT 3/4 NBA26-H4-05 5~2 26.6 - 14 32 10
    NPT 3/4 NBA26-H4-07 7~3.5 26.6 -- 14 32 10
    NPT 1 NBA33-H4-09 9~4.5 33.5 - 15 41 10
    G3/8 FBA17-H5-02 2.5~1 16.6 16.6~16.9 9 22/22 10
    G1/2 FBA21-H5-03 3~1.2 20.9 20.9~21.2 9.5 26/26 10
    G1/2 FBA21-H5-04 4.2~1.7 20.9 20.9~21.2 9.5 26/26 10
    G3/4 FBA26-H5-03 3.5~1.5 26.4 26.4~26.8 12 32/32 10
    G3/4 FBA26-H5-06 6~3 26.4 26.4~26.8 12 32/32 10
    G1 FBA33-H5-08 8~4 33.2 33.2~33.6 12.5 41/41 10
    NPT 3/8 NBA17-H5-02 2.5~1 17.1 - 13 22 10
    NPT 1/2 NBA21-H5-03 3~1.2 21.3 - 13 26 10
    NPT 1/2 NBA21-H5-04 4.2~1.7 21.3 - 13 26 10
    NPT 3/4 NBA26-H5-03 3.5~1.5 26.6 - 14 32 10
    NPT 3/4 NBA26-H5-06 6~3 26.6 - 14 32 10
    NPT 1 NBA33-H5-08 8~4 33.5 - 15 41 10
    G3/8 FBA17-H6-02 2~1 16.6 16.6~16.9 9 22/22 10
    G1/2 FBA21-H6-03 3~1.2 20.9 20.9~21.2 9.5 26/26 10
    G3/4 FBA26-H6-03 3.5~1.5 26.4 26.4~26.8 12 32/32 10
    G3/4 FBA26-H6-05 5.3~2.4 26.4 26.4~26.8 12 32/32 10
    G1 FBA33-H6-07 7~3.5 33.2 33.2~33.6 12.5 41/41 10
    NPT 3/8 NBA17 -H6-02 2~1 17.1 - 13 22 10
    NPT 1/2 NBA21 -H6-03 3~1.2 21.3 - 13 26 10
    NPT 3/4 NBA26 -H6-03 3.5~1.5 26.6 - 14 32 10
    NPT 3/4 NBA26 -H6-05 5.3~2.4 26.6 - 14 32 10
    NPT 1 NBA33 -H6-07 7~3.5 33.5 - 15 41 10
    G1/2 FBA21-H7-03 3~1.2 20.9 20.9~21.2 9.5 26/26 10
    G3/4 FBA26-H7-03 3.5~1.5 26.4 26.4~26.8 12 32/32 10
    G1 FBA33-H7-06 6~3 33.2 33.2~33.6 12.5 41/41 10
    NPT 1/2 NBA21-H7-03 3~1.2 21.3 - 13 26 10
    NPT 3/4 NBA26-H7-03 3.5~1.5 26.6 - 14 32 10
    NPT 1 NBA33-H7-06 6~3 33.5 - 15 41 10
    G1/2 FBA21-H8-02 2.8~1 20.9 20.9~21.2 9.5 26/26 10
    G3/4 FBA26-H8-03 3.5~1.5 26.4 26.4~26.8 12 32/32 10
    NPT 1/2 NBA21-H8-02 2.8~1 21.3 - 13 26 10
    NPT 3/4 NBA26-H8-03 3.5~1.5 26.6 - 14 32 10
    G3/8 FBA17-0610 6~10 16.6 16.6~16.9 9 22/22 10
    G1/2 FBA21-0612 6.5~12 20.9 20.9~21.2 9.5 26/26 10
    G1/2 FBA21-0614 6~14 20.9 20.9~21.2 9.5 26/26 10
    G1/2 FBA21-0712 7~12 20.9 20.9~21.2 9.5 26/26 10
    G1/2 FBA21-0714 7~14 20.9 20.9~21.2 9.5 26/26 10
    G3/4 FBA26-0614 6~14 26.4 26.4~26.8 12 32/32 10
    G3/4 FBA26-0714 7~14 26.4 26.4~26.8 12 32/32 10
    G1 FBA33-0822 8~22 33.2 33.2~33.6 12.5 41/41 10
    G1 1/4 FBA42-1028 10~28.5 41.9 41.9~42.3 15 50/50 5
    G1 1/4 FBA42-0529 5.5~29 41.9 41.9~42.3 15 50/50 5
    NPT 3/8 NBA17-0610 6~10 17.1 - 13 22 10
    NPT 1/2 NBA21-0612 6.5~15 21.3 - 13 26 10
    NPT 1/2 NBA21-0614 6~14 21.3 - 13 26 10
    NPT 1/2 NBA21-0712 7~12 21.3 - 13 26 10
    NPT 1/2 NBA21-0714 7~14 21.3 - 13 26 10
    NPT 3/4 NBA26-0614 6~14 26.6 - 14 32 10
    NPT 3/4 NBA26-0714 7~14 26.6 - 14 32 10
    NPT 1 NBA33-0822 8~22 33.5 - 15 41 10
    NPT 1 1/4 NBA42-1028 10~28.5 42.2 - 15 50 5
    NPT 1 1/4 NBA42-0529 5.5~29 42.2 - 15 50 5
