Nylon Cable Glands (Standard Type G(PF),NPT)
G(PF)
NPT
Thread: Metric, PG, G(PF), and NPT thread

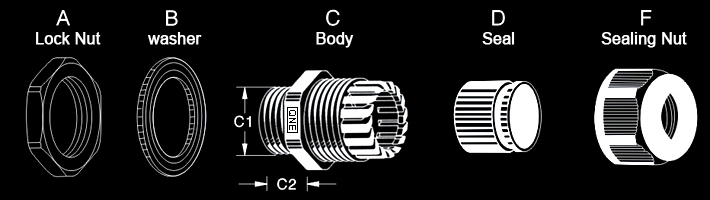

Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.
| Thread | Item. No. | Cable Range |
Thread O. D. |
Thread Length |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|---|---|
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | (pcs) | ||
| G(PF)1/4 | NCG-G1/4-5 | 3-5.3 | 13.157 | 8.5 | 19/19 | 50 |
| G(PF)1/4 | NCG-G1/4-8 | 4-8 | 13.157 | 8.5 | 19/19 | 50 |
| G(PF)3/8 | NCG-G3/8-7 | 3-7 | 16.662 | 10 | 22/22 | 50 |
| G(PF)3/8 | NCG-G3/8-10 | 5-10 | 16.662 | 10 | 22/22 | 50 |
| G(PF)1/2 | NCG-G1/2-9 | 5-9 | 20.955 | 10 | 27/24 | 50 |
| G(PF)1/2 | NCG-G1/2 -12.5 | 6-12.5 | 20.955 | 10 | 27/24 | 50 |
| G(PF)3/4 | NCG-G3/4-13 | 7-13 | 26.441 | 12 | 36/33 | 50 |
| G(PF)3/4 | NCG-G3/4-17.5 | 12.5-18 | 26.441 | 12 | 36/33 | 50 |
| G(PF)1 | NCG-G1-7.9 | 5-7.9 | 33.249 | 15 | 46/41 | 20 |
| G(PF)1 | NCG-G1-17.5 | 13-17.5 | 33.249 | 15 | 46/41 | 20 |
| G(PF)1 | NCG-G1-25 | 17-25 | 33.249 | 15 | 46/41 | 20 |
| G(PF)1 1/4 | NCG-G11/4-25.5 | 17-25.5 | 41.91 | 15 | 57/52 | 10 |
| G(PF)1 1/4 | NCG-G11/4-31 | 24-32 | 41.91 | 15 | 57/52 | 10 |
| G(PF)1 1/2 | NCG-G1 1/2 -32 | 25-32 | 48 | 16 | 60/62 | 10 |
| G(PF)1 1/2 | NCG-G1 1/2 -41 | 30-41 | 48 | 16 | 60/62 | 10 |
| NPT1/4 | NCG-NPT1/4 -5.5 | 3-5.5 | 13.157 | 8.5 | 19 | 50 |
| NPT1/4 | NCG-NPT1/4 -6.8 | 4-8 | 13.157 | 8.5 | 19 | 50 |
| NPT3/8 | NCG-NPT3/8-7 | 3-7 | 16.662 | 10 | 22 | 50 |
| NPT3/8 | NCG-NPT3/8-10 | 5-10 | 16.662 | 10 | 22 | 50 |
| NPT1/2 | NCG-NPT1/2-9 | 5-9 | 20.955 | 10 | 24 | 50 |
| NPT1/2 | NCG-NPT1/2-13 | 6-12.5 | 20.955 | 10 | 24 | 50 |
| NPT3/4 | NCG-NPT3/4-8.5 | 6-8.5 | 26.441 | 15 | 33 | 50 |
| NPT3/4 | NCG-NPT3/4-13 | 7-13 | 26.441 | 15 | 33 | 50 |
| NPT3/4 | NCG-NPT3/4-18 | 12.5-18 | 26.441 | 15 | 33 | 50 |
| NPT1 | NCG-NPT1-7.9 | 5-7.9 | 33.249 | 17 | 41 | 20 |
| NPT1 | NCG-NPT1-17.5 | 13-17.5 | 33.249 | 17 | 41 | 20 |
| NPT1 | NCG-NPT1 -25 | 17-25 | 33.249 | 17 | 41 | 20 |
| NPT1 1/4 | NCG-NPT1 1/4-25.5 | 17-25.5 | 41.91 | 17 | 52 | 20 |
| NPT1 1/4 | NCG-NPT1 1/4-31 | 24-32 | 41.91 | 17 | 52 | 20 |
