PRODUCT NAME
BCG Brass cable glands G(PF),NPT(UL)

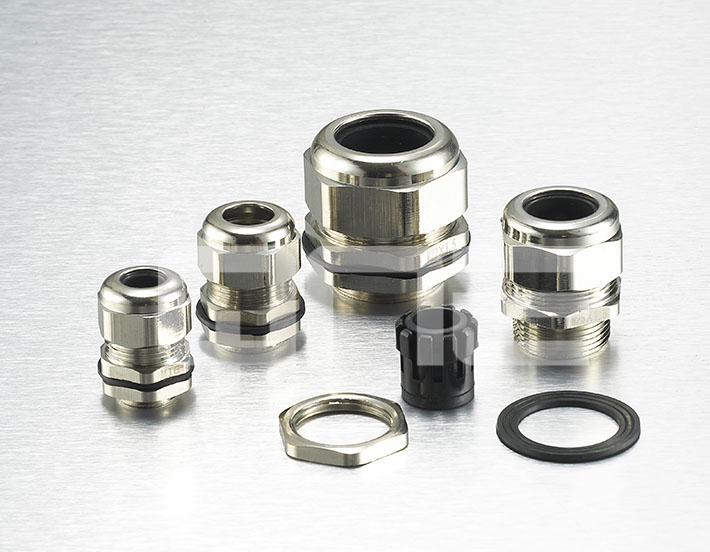

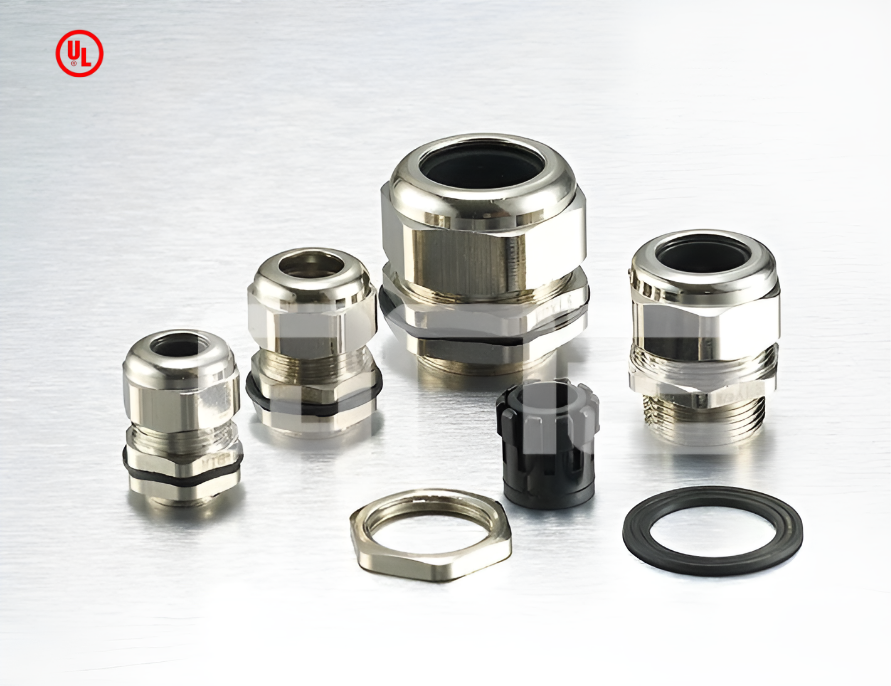

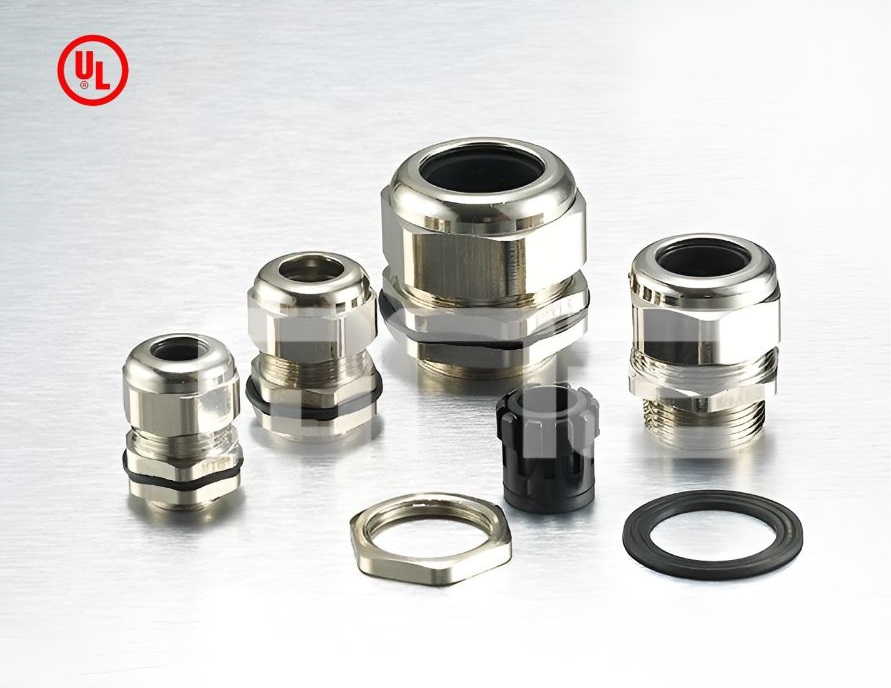

Brass cable glands
Thread: Metric, PG, G(PF), and NPT thread

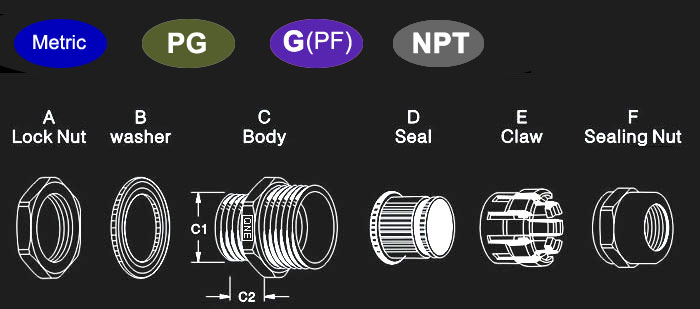

Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
| Thread | Item. No. | Cable Range |
Thread O. D. |
Thread Length |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|---|---|
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | (pcs) | ||
| G（PF） 1/4 | BCG-G1/4 -5.5 | 3-5.5 | 13.1 | 8 | 18/18 | 10 |
| G（PF） 1/4 | BCG-G1/4 -7.8 | 4.5-8 | 13.1 | 8 | 18/18 | 10 |
| G（PF） 3/8 | BCG-G3/8-7 | 4-7 | 16.6 | 9 | 22/22 | 10 |
| G（PF） 3/8 | BCG-G3/8-10 | 6-10 | 16.6 | 9 | 22/22 | 10 |
| G（PF） 1/2 | BCG-G1/2S-8.8 | 4-8.8 | 20.9 | 9.5 | 24/24 | 10 |
| G（PF） 1/2 | BCG-G1/2S-12.5 | 7-12.5 | 20.9 | 9.5 | 24/24 | 10 |
| G（PF） 1/2 | BCG-G1/2-11 | 7-11 | 20.9 | 9.5 | 25/25 | 10 |
| G（PF） 1/2 | BCG-G1/2-14 | 9-14 | 20.9 | 9.5 | 25/25 | 10 |
| G（PF） 3/4 | BCG-G3/4-16 | 12-16 | 26.4 | 12 | 30/30 | 10 |
| G（PF） 3/4 | BCG-G3/4-18 | 14-18 | 26.4 | 12 | 30/30 | 10 |
| G（PF） 1 | BCG-G1-22 | 16-22 | 33.2 | 12.5 | 40/40 | 10 |
| G（PF） 1 | BCG-G1-25 | 18-25 | 33.2 | 12.5 | 40/40 | 10 |
| G（PF） 1 1/4 | BCG-G1 1/4-26 | 21-26 | 41.9 | 15 | 50/50 | 10 |
| G（PF） 1 1/4 | BCG-G1 1/4-31 | 24-31 | 41.9 | 15 | 50/50 | 10 |
| G（PF）1 1/2 | BCG-G1 1/2-33 | 25-33 | 48 | 15 | 59/59 | 10 |
| G（PF）1 1/2 | BCG-G1 1/2-41 | 31-41 | 48 | 15 | 59/59 | 10 |
| G（PF）2 | BCG-G2-45 | 35-45 | 60 | 17 | 69/69 | 5 |
| NPT 1/4 | BCG-NPT1/4 -5.5 | 3-5.5 | 13.1 | 8 | 18 | 10 |
| NPT 1/4 | BCG-NPT1/4 -7.8 | 4.5-8 | 13.1 | 8 | 18 | 10 |
| NPT 3/8 | BCG-NPT3/8-7 | 4-7 | 16.6 | 9 | 22 | 10 |
| NPT 3/8 | BCG-NPT3/8-10 | 6-10 | 16.6 | 9 | 22 | 10 |
| NPT 1/2 | BCG-NPT1/2S-8.8 | 4-8.8 | 20.9 | 9.5 | 24 | 10 |
| NPT 1/2 | BCG-NPT1/2S-12.5 | 7-12.5 | 20.9 | 9.5 | 24 | 10 |
| NPT 1/2 | BCG-NPT1/2-11 | 7-11 | 20.9 | 9.5 | 25 | 10 |
| NPT 1/2 | BCG-NPT1/2-14 | 9-14 | 20.9 | 9.5 | 25 | 10 |
| NPT 3/4 | BCG-NPT3/4-16 | 12-16 | 26.4 | 12 | 30 | 10 |
| NPT 3/4 | BCG-NPT3/4-18 | 14-18 | 26.4 | 12 | 30 | 10 |
| NPT 1 | BCG-NPT1-22 | 16-22 | 33.2 | 12.5 | 40 | 10 |
| NPT 1 | BCG-NPT1-25 | 18-25 | 33.2 | 12.5 | 40 | 10 |
| NPT 1 1/4 | BCG-NPT1 1/4-26 | 21-26 | 41.9 | 15 | 50 | 10 |
| NPT 1 1/4 | BCG-NPT1 1/4-31 | 24-31 | 41.9 | 15 | 50 | 10 |
| NPT 1 1/2 | BCG-NPT1 1/2-33 | 25-33 | 48 | 15 | 59 | 10 |
| NPT 1 1/2 | BCG-NPT1 1/2-41 | 31-41 | 48 | 15 | 59 | 10 |
| NPT 2 | BCG-NPT2-45 | 35-45 | 60 | 17 | 69 | 5 |
