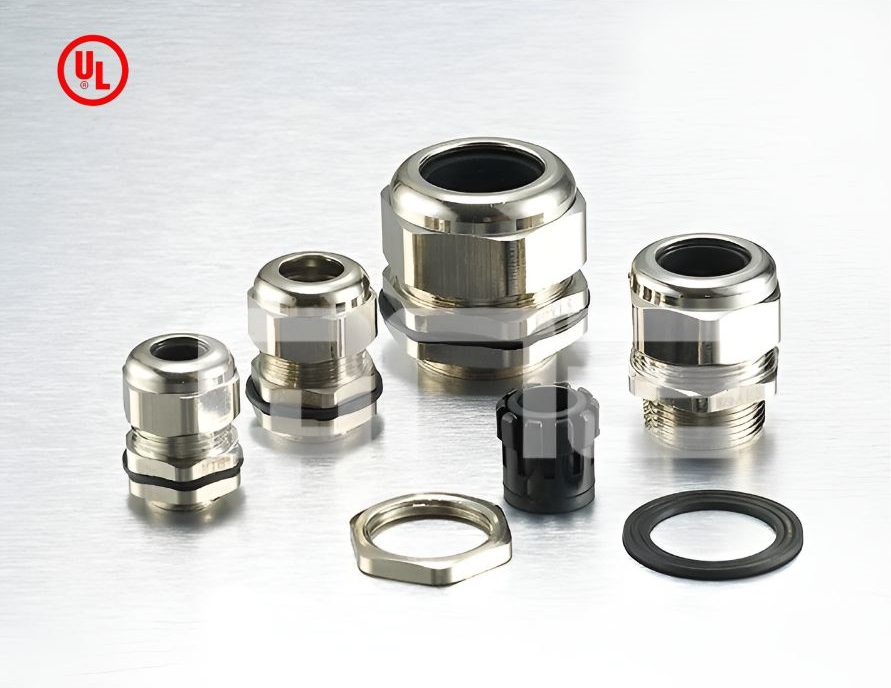

UL-BCG Brass cable glands M,PG

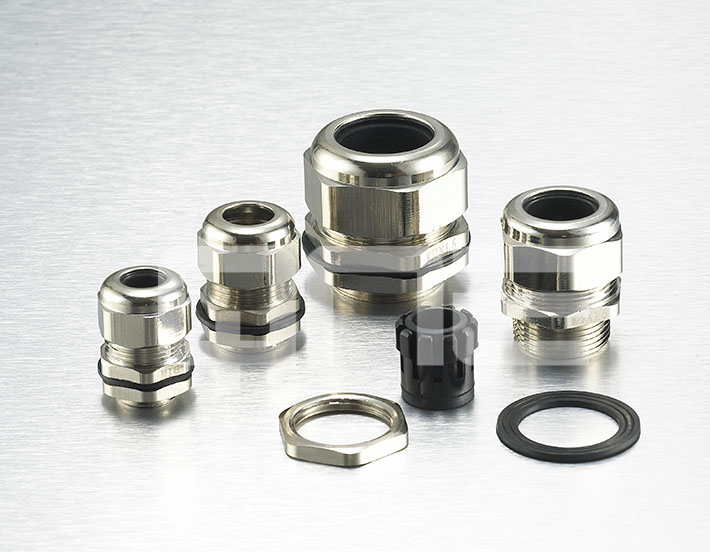

Brass cable glands
Thread: Metric, PG, G(PF), and NPT thread

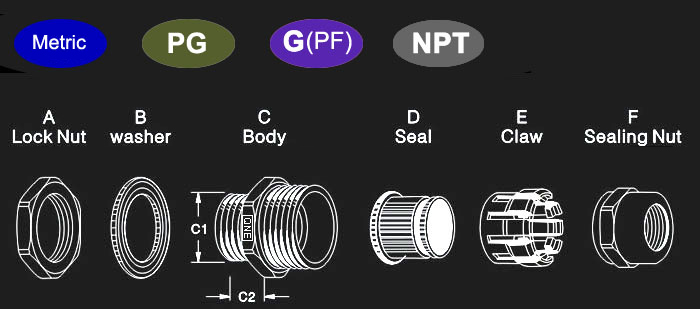

Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
| Thread | Item. No. | Cable Range |
Thread O. D. |
Thread Length |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|---|---|
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | (pcs) | ||
| M6 x 1 | BCG-M6 -3 | 2-3 | 6 | 5 | 9/9 | 20 |
| M8 x 1.25 | BCG-M8 -4.8 | 3-4.8 | 8 | 5.5 | 11/11 | 20 |
| M10 x 1.5 | BCG-M10-3.8 | 2-3.8 | 10 | 7 | 14/14 | 20 |
| M10 x 1.5 | BCG-M10 -5.5 | 3-5.5 | 10 | 7 | 14/14 | 20 |
| M12 x1.5 | BCG-M12S-5.5 | 3-6.5 | 12 | 7 | 14/14 | 20 |
| M12 x1.5 | BCG-M12 -5.5 | 3-5.5 | 12 | 8 | 17/17 | 10 |
| M12 x1.5 | BCG-M12 -7.8 | 4.5-8 | 12 | 8 | 17/17 | 10 |
| M12 x1.5 | BCG-M12SL-5.5 | 3-6.5 | 12 | 15 | 14/14 | 20 |
| M12 x1.5 | BCG-M12L -5.5 | 3-5.5 | 12 | 15 | 17/17 | 10 |
| M12 x1.5 | BCG-M12L -7.8 | 4.5-8 | 12 | 15 | 17/17 | 10 |
| M16 x 1.5 | BCG-M16S-5.5 | 3-5.5 | 16 | 8 | 18/18 | 10 |
| M16 x 1.5 | BCG-M16S-7.8 | 4.5-8 | 16 | 8 | 18/18 | 10 |
| M16 x 1.5 | BCG-M16SL-5.5 | 3-5.5 | 16 | 15 | 18/18 | 10 |
| M16 x 1.5 | BCG-M16SL-7.8 | 4.5-8 | 16 | 15 | 18/18 | 10 |
| M16 x 1.5 | BCG-M16 -7 | 4-7 | 16 | 8 | 22/22 | 10 |
| M16 x 1.5 | BCG-M16 -10 | 6-10 | 16 | 8 | 22/22 | 10 |
| M16 x 1.5 | BCG-M16L -7 | 4-7 | 16 | 15 | 22/22 | 10 |
| M16 x 1.5 | BCG-M16L -10 | 6-10 | 16 | 15 | 22/22 | 10 |
| M18 x 1.5 | BCG-M18 -7 | 4-7 | 18 | 8 | 22/22 | 10 |
| M18 x 1.5 | BCG-M18 -10 | 6-10 | 18 | 8 | 22/22 | 10 |
| M18 x 1.5 | BCG-M18L -7 | 4-7 | 18 | 15 | 22/22 | 10 |
| M18 x 1.5 | BCG-M18L -10 | 6-10 | 18 | 15 | 22/22 | 10 |
| M20 x 1.5 | BCG-M20S-8.8 | 4-8.8 | 20 | 9.5 | 24/24 | 10 |
| M20 x 1.5 | BCG-M20S-12.5 | 7-12.5 | 20 | 9.5 | 24/24 | 10 |
| M20 x 1.5 | BCG-M20SL-8.8 | 4-8.8 | 20 | 15 | 24/24 | 10 |
| M20 x 1.5 | BCG-M20SL-12.5 | 7-12.5 | 20 | 15 | 24/24 | 10 |
| M20 x 1.5 | BCG-M20 -11 | 7-11 | 20 | 9.5 | 25/25 | 10 |
| M20 x 1.5 | BCG-M20 -14 | 9-14 | 20 | 9.5 | 25/25 | 10 |
| M20 x 1.5 | BCG-M20L -11 | 7-11 | 20 | 15 | 25/25 | 10 |
| M20 x 1.5 | BCG-M20L -14 | 9-14 | 20 | 15 | 25/25 | 10 |
| M22 x 1.5 | BCG-M22 -11 | 7-11 | 22 | 9.5 | 25/25 | 10 |
| M22 x 1.5 | BCG-M22 -14 | 9-14 | 22 | 9.5 | 25/25 | 10 |
| M22 x 1.5 | BCG-M22L -11 | 7-11 | 22 | 15 | 25/25 | 10 |
| M22 x 1.5 | BCG-M22L -14 | 9-14 | 22 | 15 | 25/25 | 10 |
| M24 x 1.5 | BCG-M24 -16 | 12-16 | 24 | 12 | 30/30 | 10 |
| M24 x 1.5 | BCG-M24 -18 | 14-18 | 24 | 12 | 30/30 | 10 |
| M24 x 1.5 | BCG-M24L -16 | 12-16 | 24 | 15 | 30/30 | 10 |
| M24 x 1.5 | BCG-M24L -18 | 14-18 | 24 | 15 | 30/30 | 10 |
| M25 x 1.5 | BCG-M25S-11 | 7-11 | 25 | 12 | 25/25 | 10 |
| M25 x 1.5 | BCG-M25S-14 | 9-14 | 25 | 12 | 25/25 | 10 |
| M25 x 1.5 | BCG-M25SL-11 | 7-11 | 25 | 15 | 25/25 | 10 |
| M25 x 1.5 | BCG-M25SL-14 | 9-14 | 25 | 15 | 25/25 | 10 |
| M25 x 1.5 | BCG-M25 -16 | 12-16 | 25 | 12 | 30/30 | 10 |
| M25 x 1.5 | BCG-M25 -18 | 14-18 | 25 | 12 | 30/30 | 10 |
| M25 x 1.5 | BCG-M25L -16 | 12-16 | 25 | 15 | 30/30 | 10 |
| M25 x 1.5 | BCG-M25L -18 | 14-18 | 25 | 15 | 30/30 | 10 |
| M32 x 1.5 | BCG-M32 -22 | 16-22 | 32 | 12.5 | 40/40 | 10 |
| M32 x 1.5 | BCG-M32 -25 | 18-25 | 32 | 12.5 | 40/40 | 10 |
| M32 x 1.5 | BCG-M32L -22 | 16-22 | 32 | 15 | 40/40 | 10 |
| M32 x 1.5 | BCG-M32L -25 | 18-25 | 32 | 15 | 40/40 | 10 |
| M40 x 1.5 | BCG-M40 -26 | 21-26 | 40 | 15 | 50/50 | 10 |
| M40 x 1.5 | BCG-M40 -31 | 24-31 | 40 | 15 | 50/50 | 10 |
| M40 x 1.5 | BCG-M40L -26 | 21-26 | 40 | 20 | 50/50 | 10 |
| M40 x 1.5 | BCG-M40L -31 | 24-31 | 40 | 20 | 50/50 | 10 |
| M50 x 1.5 | BCG-M50 -33 | 25-33 | 50 | 15 | 59/59 | 5 |
| M50 x 1.5 | BCG-M50 -41 | 31-41 | 50 | 15 | 59/59 | 5 |
| M50 x 1.5 | BCG-M50L -33 | 25-33 | 50 | 22 | 59/59 | 5 |
| M50 x 1.5 | BCG-M50L -41 | 31-41 | 50 | 22 | 59/59 | 5 |
| M63 x 1.5 | BCG-M63 -45 | 35-45 | 63 | 17 | 69/69 | 1 |
| M63 x 1.5 | BCG-M63L-46 | 39-46 | 63 | 17 | 75/75 | 1 |
| M63 x 1.5 | BCG-M63L-51 | 44-51 | 63 | 17 | 75/75 | 1 |
| M75 x 2 | BCG-M75 -56 | 50-56 | 75 | 22 | 93/93 | 1 |
| M75 x 2 | BCG-M75 -66 | 56-66 | 75 | 22 | 93/93 | 1 |
| M80 x 2 | BCG-M80 -56 | 50-56 | 80 | 22 | 93/93 | 1 |
| M80 x 2 | BCG-M80 -66 | 56-66 | 80 | 22 | 93/93 | 1 |
| M90 x 2 | BCG-M90 -68 | 58-68 | 90 | 24 | 110/110 | 1 |
| M90 x 2 | BCG-M90 -77 | 66-77 | 90 | 24 | 110/110 | 1 |
| M100 x 2 | BCG-M100 -68 | 58-68 | 100 | 24 | 110/110 | 1 |
| M100 x 2 | BCG-M100 -77 | 66-77 | 100 | 24 | 110/110 | 1 |
| PG7 | BCG-PG7S-6.5 | 3-6.5 | 12.5 | 7 | 14/14 | 20 |
| PG7 | BCG-PG7 -5.5 | 3-5.5 | 12.5 | 8 | 17/17 | 10 |
| PG7 | BCG-PG7 -7.8 | 4.5-8 | 12.5 | 8 | 17/17 | 10 |
| PG7 | BCG-PG7SL-5.5 | 3-6.5 | 12.5 | 15 | 14/14 | 20 |
| PG7 | BCG-PG7L -5.5 | 3-5.5 | 12.5 | 15 | 17/17 | 10 |
| PG7 | BCG-PG7L -7.8 | 4.5-8 | 12.5 | 15 | 17/17 | 10 |
| PG9 | BCG-PG9 -5.5 | 3-5.5 | 15.2 | 8 | 18/18 | 10 |
| PG9 | BCG-PG9 -7.8 | 4.5-8 | 15.2 | 8 | 18/18 | 10 |
| PG9 | BCG-PG9L -5.5 | 3-5.5 | 15.2 | 15 | 18/18 | 10 |
| PG9 | BCG-PG9L -7.8 | 4.5-8 | 15.2 | 15 | 18/18 | 10 |
| PG11 | BCG-PG11-7 | 4-7 | 18.6 | 9 | 22/22 | 10 |
| PG11 | BCG-PG11-10 | 6-10 | 18.6 | 9 | 22/22 | 10 |
| PG11 | BCG-PG11L-7 | 4-7 | 18.6 | 15 | 22/22 | 10 |
| PG11 | BCG-PG11L-10 | 6-10 | 18.6 | 15 | 22/22 | 10 |
| PG11 | BCG-PG11-10_C2_20mm | 6-10 | 18.6 | 20 | 22/22 | 10 |
| PG13.5 | BCG-PG13.5-8.8 | 4-8.8 | 20.4 | 9.5 | 24/24 | 10 |
| PG13.5 | BCG-PG13.5-12.5 | 7-12.5 | 20.4 | 9.5 | 24/24 | 10 |
| PG13.5 | BCG-PG13.5L-8.8 | 4-8.8 | 20.4 | 15 | 24/24 | 10 |
| PG13.5 | BCG-PG13.5L-12.5 | 7-12.5 | 20.4 | 15 | 24/24 | 10 |
| PG16 | BCG-PG16S-8.8 | 4-8.8 | 22.5 | 9.5 | 25/25 | 10 |
| PG16 | BCG-PG16-11 | 7-11 | 22.5 | 9.5 | 25/25 | 10 |
| PG16 | BCG-PG16-14 | 9-14 | 22.5 | 9.5 | 25/25 | 10 |
| PG16 | BCG-PG16L-11 | 7-11 | 22.5 | 15 | 25/25 | 10 |
| PG16 | BCG-PG16L-14 | 9-14 | 22.5 | 15 | 25/25 | 10 |
| PG21 | BCG-PG21-16 | 12-16 | 28.3 | 12 | 30/30 | 10 |
| PG21 | BCG-PG21-18 | 14-18 | 28.3 | 12 | 30/30 | 10 |
| PG21 | BCG-PG21L-16 | 12-16 | 28.3 | 15 | 30/30 | 10 |
| PG21 | BCG-PG21L-18 | 14-18 | 28.3 | 15 | 30/30 | 10 |
| PG29 | BCG-PG29-22 | 16-22 | 37 | 12.5 | 40/40 | 10 |
| PG29 | BCG-PG29-25 | 18-25 | 37 | 12.5 | 40/40 | 10 |
| PG29 | BCG-PG29L-22 | 16-22 | 37 | 15 | 40/40 | 10 |
| PG29 | BCG-PG29L-25 | 18-25 | 37 | 15 | 40/40 | 10 |
| PG36 | BCG-PG36-26 | 21-26 | 47 | 15 | 50/50 | 10 |
| PG36 | BCG-PG36-31 | 24-31 | 47 | 15 | 50/50 | 10 |
| PG42 | BCG-PG42-33 | 25-33 | 54 | 15 | 59/59 | 10 |
| PG42 | BCG-PG42-41 | 31-41 | 54 | 15 | 59/59 | 10 |
| PG48 | BCG-PG48-45 | 35-45 | 59.3 | 17 | 69/69 | 5 |
