PRODUCT NAME

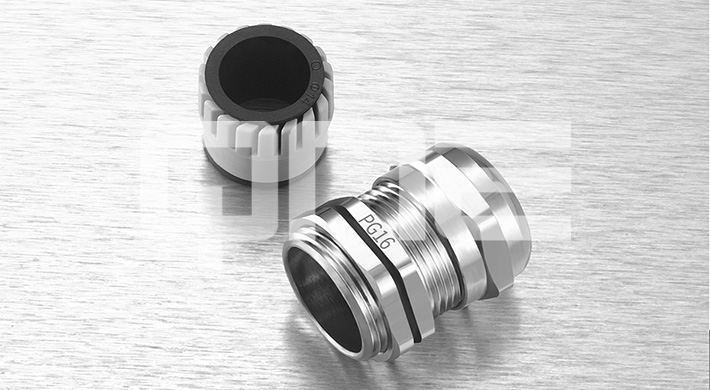

BCGL Brass cable glands M、PG、G(PF)、NPT
Brass cable glands
Thread: Metric, PG, G(PF), and NPT thread

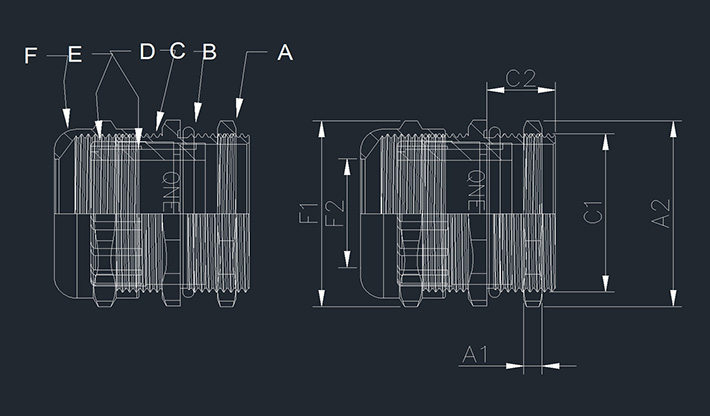

Materials: Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
| Thread | Item. No. | Cable Range ФF2 Ф(mm) |
Thread O.D.C1 (mm) |
Thread Length C2 (mm) |
Spanner SizeF1&A2 (mm) |
Std.Pkg (pcs) |
|---|---|---|---|---|---|---|
| M10×1.5 | BCGL-M10-6.5 | 3-6.5 | 10 | 6.5 | 14/14 | 20 |
| M12x1.5 | BCGL-M12S-6.5 | 3-6.5 | 12 | 6.5 | 14/14 | 20 |
| BCGL-M12-8 | 4.5-8 | 12 | 8 | 17/14 | 20 | |
| M16×1.5 | BCGL-M16S-8 | 4.5-8 | 16 | 8 | 17/18 | 20 |
| BCGL-M16-10 | 6-10 | 16 | 8 | 20/18 | 20 | |
| M18×1.5 | BCGL-M18S-8 | 4.5-8 | 16 | 8 | 17/20 | 20 |
| BCGL-M18-10 | 6-10 | 16 | 8 | 20/20 | 20 | |
| M20×1.5 | BCGL-M20M-10 | 6-10 | 20 | 8 | 17/22 | 20 |
| BCGL-M20S-12 | 8-12 | 20 | 8 | 22/22 | 20 | |
| BCGL-M20-14 | 9-14 | 20 | 8 | 24/22 | 20 | |
| M22×1.5 | BCGL-M22S-12 | 7-12 | 22 | 8 | 22/24 | 20 |
| BCGL-M22-14 | 9-14 | 22 | 8 | 24/24 | 20 | |
| M24×1.5 | BCGL-M24S-14 | 9-14 | 24 | 9 | 24/27 | 20 |
| BCGL-M24-16 | 12-16 | 24 | 9 | 27/27 | 20 | |
| M25×1.5 | BCGL-M25M-14 | 9-14 | 25 | 9 | 24/27 | 20 |
| BCGL-M25S-16 | 12-16 | 25 | 9 | 27/27 | 20 | |
| BCGL-M25-18 | 14-18 | 25 | 9 | 30/27 | 20 | |
| M27×1.5 | BCGL-M27-18 | 14-18 | 27 | 9 | 30/30 | 20 |
| M30×1.5 | BCGL-M30-18 | 14-18 | 30 | 9 | 30/32 | 20 |
| M32×1.5 | BCGL-M32S-18 | 14-18 | 32 | 10 | 30/35 | 20 |
| BCGL-M32-22 | 18-22 | 32 | 10 | 35/35 | 20 | |
| BCGL-M32Z--25 | 20-25 | 32 | 10 | 40/35 | 20 | |
| M36×1.5 | BCGL-M36-25 | 18-22 | 36 | 10 | 40/40 | 20 |
| M40×1.5 | BCGL-M40M--22 | 18-22 | 40 | 11 | 35/45 | 10 |
| BCGL-M40S-25 | 20-25 | 40 | 11 | 45/40 | 10 | |
| BCGL-M40-30 | 24-30 | 40 | 11 | 45/45 | 10 | |
| M50×1.5 | BCGL-M50-33 | 25-33 | 50 | 13 | 50/55 | 5 |
| BCGL-M50-38 | 32-38 | 50 | 13 | 57/55 | 5 | |
| M60×1.5 | BCGL-M60-44 | 37-44 | 60 | 14 | 64/68 | 5 |
| M63×1.5 | BCGL-M63-44 | 37-44 | 63 | 14 | 64/69 | 5 |
| PG7 | BCGL-PG7S-6.5 | 3-6.5 | 12.5 | 6.5 | 14/14 | 20 |
| BCGL-PG7-8 | 4.5-8 | 12.5 | 8 | 14/14 | 20 | |
| PG9 | BCGL-PG9-8 | 4.5-8 | 15.2 | 8 | 17/18 | 20 |
| PG11 | BCGL-PG11-8 | 4.5-8 | 18.6 | 8 | 17/22 | 20 |
| BCGL-PG11-10 | 6-10 | 18.6 | 8 | 20/22 | 20 | |
| PG13.5 | BCGL-PG13.5-10 | 6-10 | 20.4 | 8 | 20/24 | 20 |
| BCGL-PG13.5-12 | 7-12 | 20.4 | 8 | 22/24 | 20 | |
| PG16 | BCGL-PG16-11 | 7-12 | 22.5 | 8 | 22/25 | 20 |
| BCGL-PG16-14 | 9-14 | 22.5 | 8 | 24/25 | 20 | |
| PG19 | BCGL-PG19-14 | 9-14 | 24 | 9 | 24/27 | 20 |
| BCGL-PG19-16 | 12-16 | 24 | 9 | 27/27 | 20 | |
| PG21 | BCGL-PG21-16 | 12-16 | 28.3 | 9 | 27/30 | 20 |
| BCGL-PG21-18 | 14-18 | 28.3 | 9 | 30/30 | 20 | |
| PG25 | BCGL-PG25-18 | 14-18 | 30 | 10 | 30/35 | 20 |
| BCGL-PG25-22 | 18-22 | 30 | 10 | 35/35 | 20 | |
| PG29 | BCGL-PG29-18 | 15-18 | 37 | 10 | 40/30 | 20 |
| BCGL-PG29-20 | 16-20 | 37 | 10 | 40/35 | 20 | |
| BCGL-PG29-22 | 16-22 | 37 | 10 | 35/40 | 20 | |
| BCGL-PG29-25 | 18-25 | 37 | 10 | 40/40 | 20 | |
| PG36 | BCGL-PG36-26 | 22-26 | 47 | 11 | 50/50 | 10 |
| BCGL-PG36-30 | 24-30 | 47 | 11 | 45/50 | 10 | |
| BCGL-PG36-33 | 25-33 | 47 | 11 | 50/50 | 10 | |
| PG42 | BCGL-PG42-33 | 25-33 | 54 | 13 | 50/57 | 5 |
| BCGL-PG42-38 | 32-38 | 54 | 13 | 57/57 | 5 | |
| PG48 | BCGL-PG48-44 | 37-44 | 59.3 | 14 | 64/64 | 5 |
| G1/4 | BCGL- G1/4-6.5 | 3-6.5 | 13.1 | 6.5 | 14/15 | 20 |
| G3/8 | BCGL-G3/8-8 | 4.5-8 | 16.6 | 8 | 17/20 | 20 |
| G1/2 | BCGL-G1/2-12 | 7-12 | 20.9 | 8 | 20/24 | 20 |
| G3/4 | BCGL-G3/4-18 | 14-18 | 26.4 | 9 | 30/30 | 20 |
| G1 | BCGL-G1-25 | 18-25 | 33.2 | 10 | 40/40 | 20 |
| G1-1/4 | BCGL-G1-1/4-33 | 25-33 | 41.9 | 11 | 50/50 | 10 |
| G1-1/2 | BCGL-G1-1/2-38 | 32-38 | 48 | 12 | 57/57 | 5 |
| G2 | BCGL-G2-44 | 37-44 | 60 | 14 | 64/64 | 5 |
| NPT1/4 | BCGL-NPT1/4-6.5 | 3-6.5 | 13.1 | 6.5 | 14 | 20 |
| NPT3/8 | BCGL-NPT3/8-8 | 4.5-8 | 16.6 | 8 | 17 | 20 |
| NPT1/2 | BCGL-NPT1/2-12 | 6-12 | 20.9 | 8 | 20 | 20 |
| NPT3/4 | BCGL-NPT3/4-18 | 13-18 | 26.4 | 9 | 30 | 20 |
| NPT1-25 | BCGL-NPT1-25 | 18-25 | 33.2 | 10 | 40 | 20 |
| NPT1-1/4 | BCGL-NPT1-1/4-33 | 25-33 | 41.9 | 11 | 50 | 10 |
| NPT1-1/2 | BCGL-NPT1-1/2-38 | 32-38 | 48 | 12 | 57 | 5 |
| NPT2 | BCGL-NPT2-44 | 37-44 | 60 | 14 | 64 | 5 |
