PRODUCT NAME

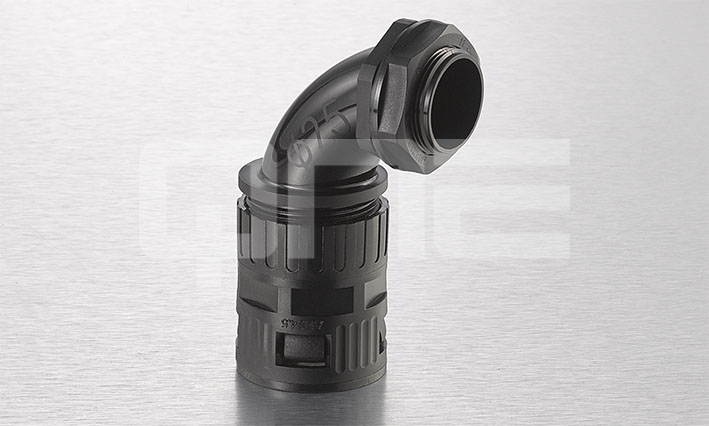

Large arc 90°degree double fixed for cables and flexible pipes gland
Thread: Metric, PG, G (PF), and NPT thread

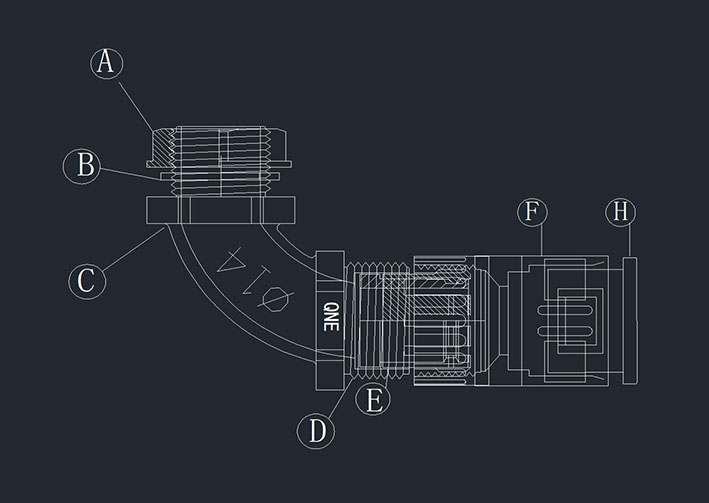

Materials: UL approved Halogen-Free Nylon PA66(Flammability UL 94V-2)for A.C.E.F.H parts;, (Accept to make flammability UL 94V-0 );Weather-resistant EPDM rubber for B.D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Working temperature: -40℃ to 100℃ in static state,or instantaneous heat resistance up to 120℃.
Product features: The corner shape is used in the corner environment. Can fasten cable and conduit at the same time.
Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.
| Accommodated Pipes | Item. No. | Cable Range Ф(mm) |
Thread O.D. | Thread Length |
|---|---|---|---|---|
| AD13 | ITF-AD13+QECG-M12E-5.5-ST | 4-5.5mm | 12mm | 10mm |
| AD13 | ITF-AD13+QECG-M12E-8-ST | 6-8mm | 12mm | 10mm |
| AD15.8 | ITF-AD15.8+QECG-M16E-7-ST | 4-7mm | 16mm | 10mm |
| AD15.8 | ITF-AD15.8+QECG-M16E-10-ST | 6-10mm | 16mm | 10mm |
| AD21.2 | ITF-AD21.2+QECG-M20E-11 | 6-11mm | 20mm | 15mm |
| AD21.2 | ITF-AD21.2+QECG-M20E-14 | 9-14mm | 20mm | 15mm |
| AD25.0 | ITF-AD25.0+QECG-M25E-16 | 10-16mm | 25mm | 15mm |
| AD25.0 | ITF-AD25.0+QECG-M25E-18 | 13-18mm | 25mm | 15mm |
| AD34.5 | ITF-AD34.5+QECG-M32E-22 | 15-22mm | 32mm | 15mm |
| AD34.5 | ITF-AD34.5+QECG-M32E-25 | 18-25mm | 32mm | 15mm |
| AD42.5 | ITF-AD42.5+QECG-M40E-26 | 20-26mm | 32mm | 15mm |
| AD42.5 | ITF-AD42.5+QECG-M40E-31 | 24-31mm | 32mm | 15mm |
| AD54.5 | ITF-AD54.5+QECG-M50E-36 | 25-33mm | 50mm | 20mm |
| AD54.5 | ITF-AD54.5+QECG-M50E-41 | 33-41mm | 50mm | 20mm |
