90°Elbow double fixed for cables and flexible pipes

Thread: Metric, PG, G (PF), and NPT thread

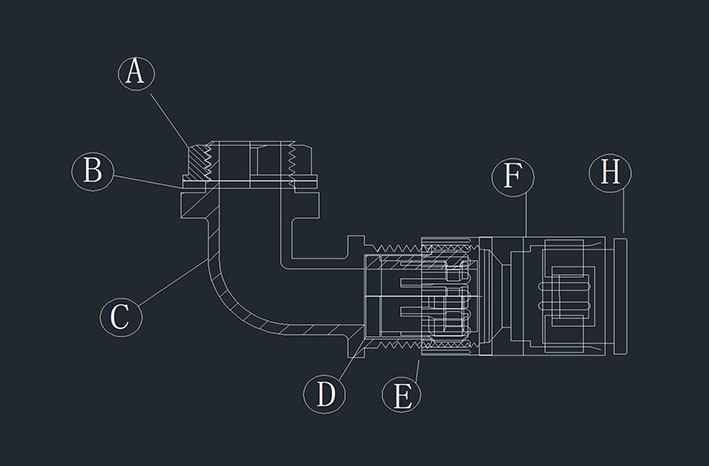

Materials: UL approved Halogen-Free Nylon PA66(Flammability UL 94V-2)for A.C.E.F.H parts;, (Accept to make flammability UL 94V-0 );Weather-resistant EPDM rubber for B.D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Working temperature: -40℃ to 100℃ in static state,or instantaneous heat resistance up to 120℃.
Product features: The corner shape is used in the corner environment. Can fasten cable and conduit at the same time.
Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.

Accommodated Pipes Item. No. Cable Range
Ф(mm)
Thread O.D. Thread Length
AD13 ITF-AD13+ECG-M12A-5.5-ST 4-5.5mm 12mm 10mm
AD13 ITF-AD13+ECG-M12A-8-ST 6-8mm 12mm 10mm
AD13 ITF-AD13+ECG-PG7A-5.5-ST 4-5.5mm 12.5 mm 10mm
AD13 ITF-AD13+ECG-PG7A-8-ST 6-8mm 12.5 mm 10mm
AD15.8 ITF-AD15.8+ECG-M16A-7-ST 4-7mm 16mm 10mm
AD15.8 ITF-AD15.8+ECG-M16A-10-ST 6-10mm 16mm 10mm
AD21.2 ITF-AD21.2+ECG-M20A-11 6-11mm 20mm 15mm
AD21.2 ITF-AD21.2+ECG-M20A-14 9-14mm 20mm 15mm
AD21.2 ITF-AD21.2+ECG-PG13.5A-11 6-11mm 20.4 mm 15mm
AD21.2 ITF-AD21.2+ECG-PG13.5A-14 9-14mm 20.4 mm 15mm
AD21.2 ITF-AD21.2+ECG-PF1/2A-11 9-14mm 20.955mm 15mm
AD21.2 ITF-AD21.2+ECG-PF1/2A-14 7-12mm 20.955mm 15mm
AD25.0 ITF-AD25.0+ECG-M25A-16 10-16mm 25mm 15mm
AD25.0 ITF-AD25.0+ECG-M25A-18 13-18mm 25mm 15mm
AD25.0 ITF-AD25.0+ECG-NPT1/2A-11 6-11mm 20.955mm 15mm
AD25.0 ITF-AD25.0+ECG-NPT1/2A-14 9-14mm 20.955mm 15mm
AD25.0 ITF-AD25.0+ECG-PF1/2AZ-12 10-15mm 20.955mm 15mm
AD25.0 ITF-AD25.0+ECG-PF1/2AZ-15 7-12mm 20.955mm 15mm
AD28.5 ITF-AD28.5+ECG-M25A-16 15-22mm 25mm 15mm
AD28.5 ITF-AD28.5+ECG-M25A-18 18-25mm 25mm 15mm
AD28.5 ITF-AD28.5+ECG-NPT1/2A-11 6-11mm 20.955mm 15mm
AD28.5 ITF-AD28.5+ECG-NPT1/2A-14 9-14mm 20.955mm 15mm
AD28.5 ITF-AD28.5+ECG-PF1/2AZ-12 7-12mm 20.955mm 15mm
AD28.5 ITF-AD28.5+ECG-PF1/2AZ-15 10-15mm 20.955mm 15mm
AD34.5 ITF-AD34.5+ECG-M32A-22 15-22mm 32mm 15mm
AD34.5 ITF-AD34.5+ECG-M32A-25 18-25mm 32mm 15mm
