PRODUCT NAME

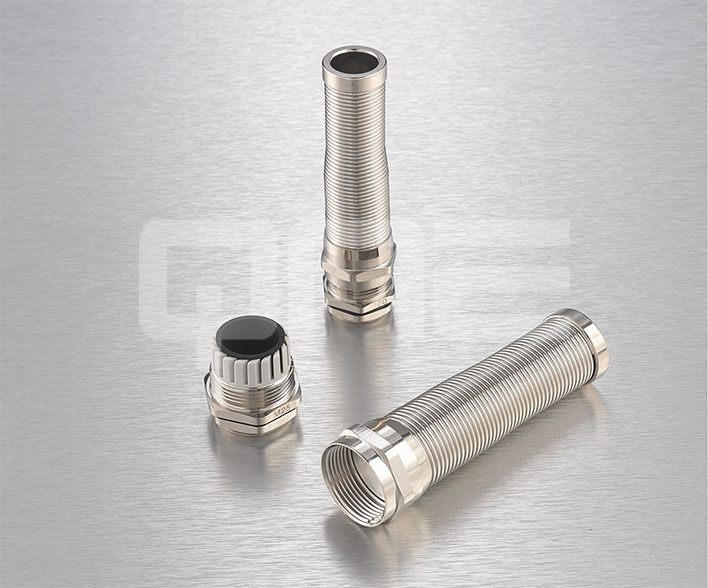

NBCGL Spiral Metal Cable Glands
Thread: Metric, PG, G(PF), and NPT thread

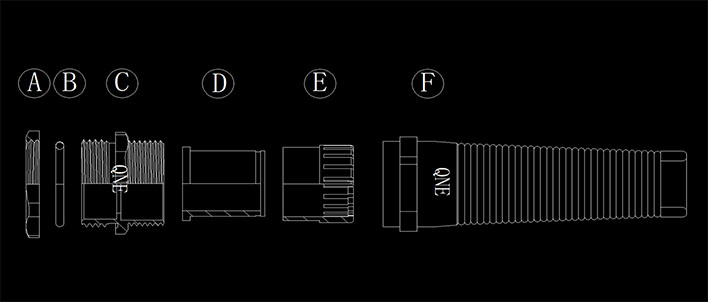

Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: Special elastic design for better cable protection
Thread specification: can be customized any threads
| Thread | Item. No. | Cable Range |
Thread O. D. |
Thread Length |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|---|---|
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | (pcs) | ||
| M10×1.5 | NBCGL-M10-6.5 | 3--6.5 | 10 | 6.5 | 14/14 | |
| M12x1.5 | NBCGL-M12S-6.5 | 3--6.5 | 12 | 6.5 | 14/14 | |
| M12x1.5 | NBCGL-M12-8 | 4--8 | 12 | 8 | 17/14 | |
| M16×1.5 | NBCGL-M16S-8 | 4--8 | 16 | 8 | 17/18 | |
| M16×1.5 | NBCGL-M16-10 | 6--10 | 16 | 8 | 20/18 | |
| M18×1.5 | NBCGL-M18S-8 | 4--8 | 18 | 8 | 17/20 | |
| M18×1.5 | NBCGL-M18-10 | 6--10 | 18 | 8 | 20/20 | |
| M20×1.5 | NBCGL-M20M-10 | 6--10 | 20 | 8 | 17/22 | |
| M20×1.5 | NBCGL-M20S-12 | 8--12 | 20 | 8 | 22/22 | |
| M20×1.5 | NBCGL-M20-14 | 9--14 | 20 | 8 | 24/22 | |
| M22×1.5 | NBCGL-M22S-12 | 8--12 | 22 | 8 | 22/24 | |
| M22×1.5 | NBCGL-M22-14 | 10--14 | 22 | 8 | 24/24 | |
| M24×1.5 | NBCGL-M24S-14 | 10--14 | 24 | 9 | 24/27 | |
| M24×1.5 | NBCGL-M24-16 | 12--16 | 24 | 9 | 27/27 | |
| M25×1.5 | NBCGL-M25M-14 | 10--14 | 25 | 9 | 24/27 | |
| M25×1.5 | NBCGL-M25S-16 | 12--16 | 25 | 9 | 27/27 | |
| M25×1.5 | NBCGL-M25-18 | 14--18 | 25 | 9 | 30/27 | |
| M27×1.5 | NBCGL-M27-18 | 14--18 | 27 | 9 | 30/30 | |
| M30×1.5 | NBCGL-M30-18 | 14--18 | 30 | 9 | 30/32 | |
| PG7 | NBCGL-PG7S-6.5 | 3-6.5 | 12.5 | 6.5 | 14/14 | |
| PG7 | NBCGL-PG7-8 | 4--8 | 12.5 | 8 | 17/14 | |
| PG9 | NBCGL-PG9-8 | 4--8 | 15.2 | 8 | 17/18 | |
| PG11 | NBCGL-PG11-8 | 4--8 | 18.6 | 8 | 17/22 | |
| PG11 | NBCGL-PG11-10 | 6--10 | 18.6 | 8 | 20/22 | |
| PG13.5 | NBCGL-PG13.5-10 | 6--10 | 20.4 | 8 | 20/24 | |
| PG13.5 | NBCGL-PG13.5-12 | 8--12 | 20.4 | 8 | 22/24 | |
| PG16 | NBCGL-PG16-11 | 8--12 | 22.5 | 8 | 22/25 | |
| PG16 | NBCGL-PG16-14 | 10--14 | 22.5 | 8 | 24/25 | |
| PG19 | NBCGL-PG19-14 | 10--14 | 24 | 9 | 24/27 | |
| PG19 | NBCGL-PG19-16 | 12--16 | 24 | 9 | 27/27 | |
| PG21 | NBCGL-PG21-16 | 12--16 | 28.3 | 9 | 27/30 | |
| PG21 | NBCGL-PG21-18 | 14--18 | 28.3 | 9 | 30/30 | |
| PG25 | NBCGL-PG25-18 | 14--18 | 30 | 10 | 30/35 | |
| G1/4 | NBCGL- G1/4--6.5 | 3--6.5 | 13.1 | 6.5 | 14/15 | |
| G3/8 | NBCGL-G3/8--8 | 4--8 | 16.6 | 8 | 17/20 | |
| G1/2 | NBCGL-G1/2--12 | 8--12 | 20.9 | 8 | 20/24 | |
| G3/4 | NBCGL-G3/4--18 | 14--18 | 26.4 | 9 | 30/30 | |
| NPT1/4 | NBCGL-NPT1/4--6.5 | 3--6.5 | 13.1 | 6.5 | 14 | |
| NPT3/8 | NBCGL-NPT3/8--8 | 4--8 | 16.6 | 8 | 17 | |
| NPT1/2 | NBCGL-NPT1/2--12 | 8--12 | 20.9 | 8 | 20 | |
| NPT3/4 | NBCGL-NPT3/4--18 | 13--18 | 26.4 | 9 | 30 |
