PRODUCT NAME

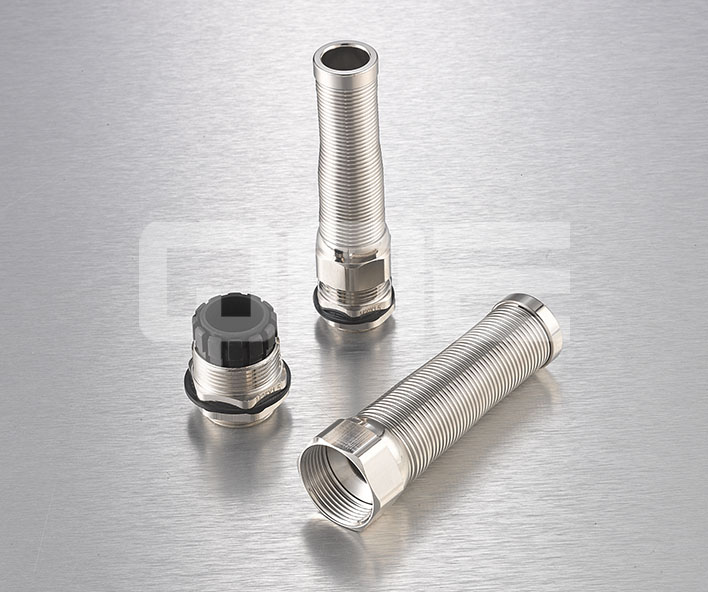

NBCG Spiral Metal Cable Glands
Brass cable glands
Thread: Metric, PG, G(PF), and NPT thread

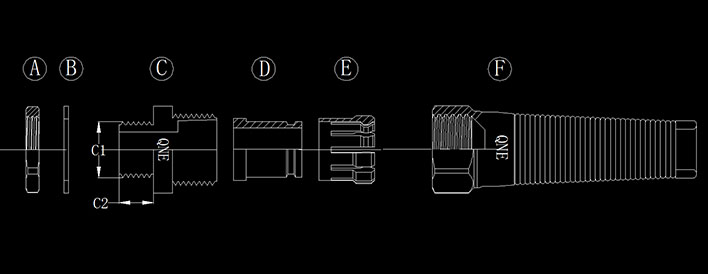

Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
| Thread | Item. No. | Cable Range |
Thread O. D. |
Thread Length |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|---|---|
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | (pcs) | ||
| M12 x1.5 | NBCG-M12S-6.5 | 3-6.5 | 12 | 7 | 14/14 | 20 |
| M12 x1.5 | NBCG-M12 -5.5 | 3-5.5 | 12 | 8 | 17/17 | 10 |
| M12 x1.5 | NBCG-M12 -7.8 | 4.5-8 | 12 | 8 | 17/17 | 10 |
| M12 x1.5 | NBCG-M12SL-5.5 | 3-6.5 | 12 | 15 | 14/14 | 20 |
| M12 x1.5 | NBCG-M12 -5.5L | 3-5.5 | 12 | 15 | 17/17 | 10 |
| M12 x1.5 | NBCG-M12 -7.8L | 4.5-8 | 12 | 15 | 17/17 | 10 |
| M16 x 1.5 | NBCG-M16S-5.5 | 3-5.5 | 16 | 8 | 17/18 | 10 |
| M16 x 1.5 | NBCG-M16S-7.8 | 4.5-8 | 16 | 8 | 17/18 | 10 |
| M16 x 1.5 | NBCG-M16 -7 | 4/7 | 16 | 8 | 22/22 | 10 |
| M16 x 1.5 | NBCG-M16 -10 | 6/10 | 16 | 8 | 22/22 | 10 |
| M16 x 1.5 | NBCG-M16SL-5.5 | 3-5.5 | 16 | 15 | 17/18 | 10 |
| M16 x 1.5 | NBCG-M16SL-7.8 | 4.5-8 | 16 | 15 | 17/18 | 10 |
| M16 x 1.5 | NBCG-M16L -7 | 4/7 | 16 | 15 | 22/22 | 10 |
| M16 x 1.5 | NBCG-M16L -10 | 6/10 | 16 | 15 | 22/22 | 10 |
| M20 x 1.5 | NBCG-M20S-8.8 | 4-8.8 | 20 | 9.5 | 24/24 | 10 |
| M20 x 1.5 | NBCG-M20S-12.5 | 7-12.5 | 20 | 9.5 | 24/24 | 10 |
| M20 x 1.5 | NBCG-M20 -11 | 7/11 | 20 | 9.5 | 25/25 | 10 |
| M20 x 1.5 | NBCG-M20 -14 | 9/14 | 20 | 9.5 | 25/25 | 10 |
| M20 x 1.5 | NBCG-M20SL-8.8 | 4-8.8 | 20 | 15 | 24/24 | 10 |
| M20 x 1.5 | NBCG-M20SL-12.5 | 7-12.5 | 20 | 15 | 24/24 | 10 |
| M20 x 1.5 | NBCG-M20L -11 | 7/11 | 20 | 15 | 25/25 | 10 |
| M20 x 1.5 | NBCG-M20L -14 | 9/14 | 20 | 15 | 25/25 | 10 |
| M25 x 1.5 | NBCG-M25S-11 | 7/11 | 25 | 12 | 25/25 | 10 |
| M25 x 1.5 | NBCG-M25S-14 | 9/14 | 25 | 12 | 25/25 | 10 |
| M25 x 1.5 | NBCG-M25 -16 | 12/16 | 25 | 12 | 30/30 | 10 |
| M25 x 1.5 | NBCG-M25 -18 | 14-18 | 25 | 12 | 30/30 | 10 |
| M25 x 1.5 | NBCG-M25SL-11 | 7/11 | 25 | 15 | 25/25 | 10 |
| M25 x 1.5 | NBCG-M25SL-14 | 9/14 | 25 | 15 | 25/25 | 10 |
| M25 x 1.5 | NBCG-M25L -16 | 12/16 | 25 | 15 | 30/30 | 10 |
| M25 x 1.5 | NBCG-M25L -18 | 14-18 | 25 | 15 | 30/30 | 10 |
