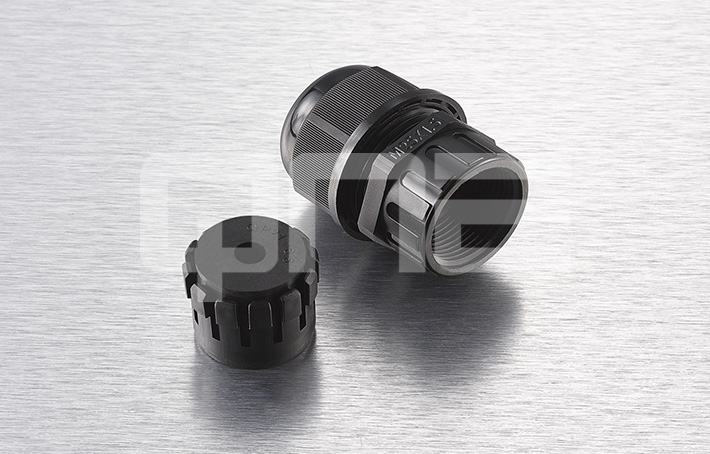

Inner Thread cable gland
Metric
G(PF)
Thread: M、G(PF)

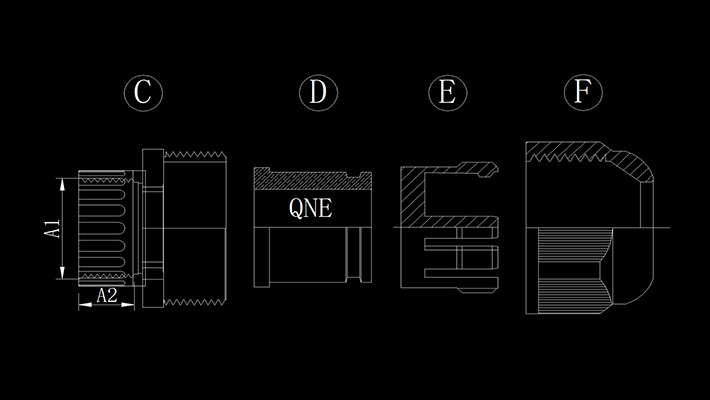

Materials: UL approved Halogen-Free Nylon PA66PA 66(Flammability UL 94V-2)for C. F parts; (Accept to make flammability UL 94V-0); Weather-resistant EPDM rubber for . D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Product features: Standard female cable glands, suitable for corresponding parts male thread articulation.
Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.
| Item. No. | Cable Range Ф(mm) |
thread inside diameter A1(MM) |
Thread Length A2(mm) |
|---|---|---|---|
| NNCGD-M16-H1-5.5 | 3--5.5 | M16X1.5 | 13 |
| NNCGD-M16-H1-8 | 4--8 | M16X1.5 | 13 |
| NNCGD-M20-H1-7 | 3--7 | M20X1.5 | 14 |
| NNCGD-M20-H1-10 | 6--10 | M20X1.5 | 14 |
| NNCGD-M22-H1-9 | 5--9 | M22X1.5 | 14 |
| NNCGD-M22-H1-12.5 | 8--12.5 | M22X1.5 | 14 |
| NNCGD-M25-H1-11 | 6--11 | M25x1.5 | 15 |
| NNCGD-M25-H1-14 | 9--14 | M25x1.5 | 15 |
| NNCGD-M30-H1-16 | 10--16 | M30x2 | 15 |
| NNCGD-M30-H1-18 | 13--18 | M30x2 | 15 |
| NNCGD-G1/2-H1-11 | 6--11 | PF1/2 | 16 |
| NNCGD-G1/2-H1-14 | 9--14 | PF1/2 | 16 |
| NNCGD-G3/4-H1-11 | 6--11 | PF3/4 | 16 |
| NNCGD-G3/4-H1-14 | 9--14 | PF3/4 | 16 |
