PRODUCT NAME

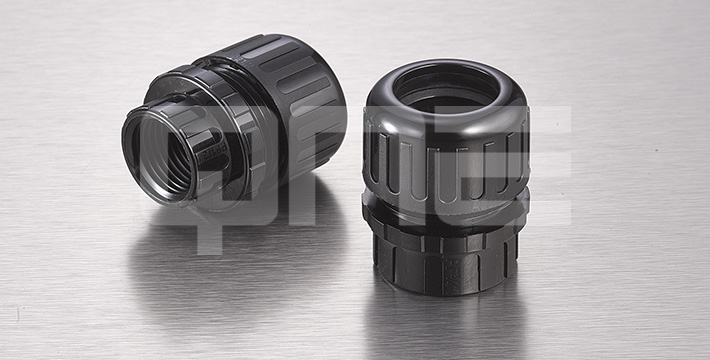

Inner Thread Watertight Corrugated Conduit Fitting
Thread: G(PF)

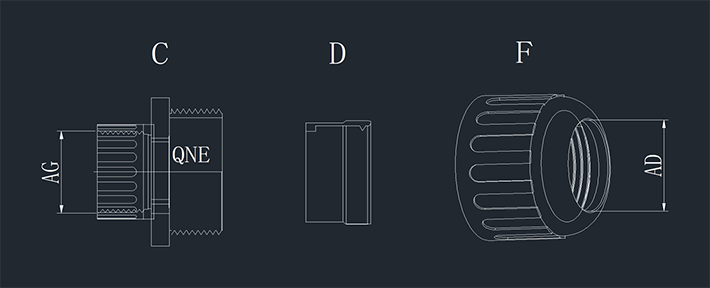

Materials: UL approved Nylon PA66PA 66(Flammability UL 94V-2)for C. F parts, Weather-resistant EPDM rubber for . D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Working temperature: -40℃ to 100℃
Features: The Powerful Watertight Fittings build the best tightening power by a very high and active compression force to resist the ingress of high pressure water jet from any angle which can provide 100% dynamic waterproof and airtight performance over the widest range of corrugated tubings.
The product can widely applied to resist water impact or immersion as a tough cable protection system for any machines, devices and equipments with the very specific demands.
| Accommodated Pipes |
Item. No. | Thread | AG Outer diameter (mm) |
Thread Length GL (mm) |
Std. Pkg(pcs) |
|---|---|---|---|---|---|
| AD21.2 | NWTFL-PF1/2-21.2 | G(PF)1/2 | 20.9 | 16 | 50 |
| AD21.2 | NWTFL-PF3/4-21.2 | G(PF)3/4 | 26.4 | 16 | 50 |
| AD21.2 | NWTFL-M25-21.2 | M25X1.5 | 25 | 16 | 50 |
| AD25.0 | NWTFL-PF3/4-25 | G(PF)3/4 | 26.4 | 16 | 50 |
| AD28.5 | NWTFL-PF3/4-28.5 | G(PF)3/4 | 26.4 | 16 | 50 |
| AD34.5 | NWTFL-PF1-34.5 | G(PF)1 | 33.2 | 16 | 20 |
