PRODUCT NAME
Two Size Connect Nylon Cable Gland
· Thread: Metric
· Material: UL approved Halogen-free Nylon PA66(Flamability UL 94V-2), (Accept to make flammability UL 94V-0 ); EPDM rubber(Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
· Protection degree: IP68
· Working temperature: -40℃-100℃ in static state, or instantaneous heat resistant up to 120℃; -20℃-80℃ in dynamic state, or instantaneous heat resistant up to 100℃
· Features: The two side connect type has a proper space for wire connect, which can keep the wire tightly connect and waterproof. It is widely used in waterproof equipment, waterproof, oil resistant
· Colours: Black(RAl9005), gray(RAL7035), other color available upon request
| Item. No. | Cable Range |
Cable Range (Refer to United and Divided Type Cable Gland) |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|

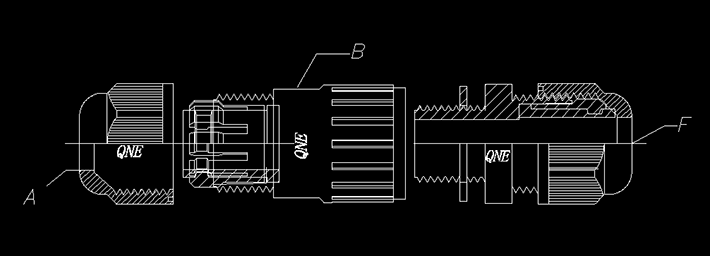

| Ф(mm)A | Ф(mm)F | A&F&B(mm) | (pcs) | |
| TNCG-M20-7-7 | 3-7 | 3-7 （NCG-M20M -7 ) | 22/22/23 | 50 |
| TNCG-M20-7-7 | 3-7 | 6-10 （NCG-M20M -10） | 22/22/23 | 50 |
| TNCG-M20-7-9 | 3-7 | 5-9 （NCG-M20S -9） | 22/24/23 | 50 |
| TNCG-M20-7-9 | 3-7 | 8-12.5（NCG-M20S -12.5） | 22/44/23 | 50 |
| TNCG-M20-7-11 | 3-7 | 5-11 （NCG-M20 -11） | 22/27/23 | 50 |
| TNCG-M20-7-14 | 3-7 | 9-13.5 （NCG-M20 -13.5） | 22/27/23 | 50 |
| TNCG-M20-10-10 | 5-10 | 6-10 （NCG-M20M -10） | 22/22/23 | 50 |
| TNCG-M20-10-9 | 5-10 | 5-9 （NCG-M20S -9） | 22/24/23 | 50 |
| TNCG-M20-10-9 | 5-10 | 8-12.5（NCG-M20S -12.5） | 22/24/23 | 50 |
| TNCG-M20-7-11 | 5-10 | 5-11 （NCG-M20 -11） | 22/27/23 | 50 |
| TNCG-M20-7-14 | 5-10 | 9-14 （NCG-M20 -12.5） | 22/27/23 | 50 |
| TNCG-M25-11-9 | 5-11 | 5-9 (NCG-M25M-9) | 27/24/23 | 50 |
| TNCG-M25-11-12.5 | 5-11 | 6-12.5 (NCG-M25M-12.5) | 27/24/23 | 50 |
| TNCG-M25-11-11 | 5-11 | 5-11 (NCG-M25S -11) | 27/27/27 | 50 |
| TNCG-M25-11-14 | 5-11 | 8.5-14 (NCG-M25S -14) | 27/27/27 | 50 |
| TNCG-M25-11-13 | 5-11 | 7-13 (NCG-M25 -13) | 27/33/27 | 50 |
| TNCG-M25-11-17.5 | 5-11 | 12.5-18(NCG-M25 -17.5) | 27/33/27 | 50 |
| TNCG-M25-14-9 | 5-11 | 5-9 (NCG-M25M-9) | 27/24/27 | 50 |
| TNCG-M25-14-12.5 | 5-11 | 6-12.5 (NCG-M25M-12.5) | 27/24/27 | 50 |
| TNCG-M25-14-11 | 5-11 | 5-11 (NCG-M25S -11) | 27/27/27 | 50 |
| TNCG-M25-14-14 | 5-11 | 8.5-14 (NCG-M25S -14) | 27/27/27 | 50 |
| TNCG-M25-14-13 | 5-11 | 7-13 (NCG-M25 -13) | 27/33/27 | 50 |
| TNCG-M25-14-17.5 | 5-11 | 12.5-18(NCG-M25 -17.5) | 27/33/27 | 50 |
