PRODUCT NAME

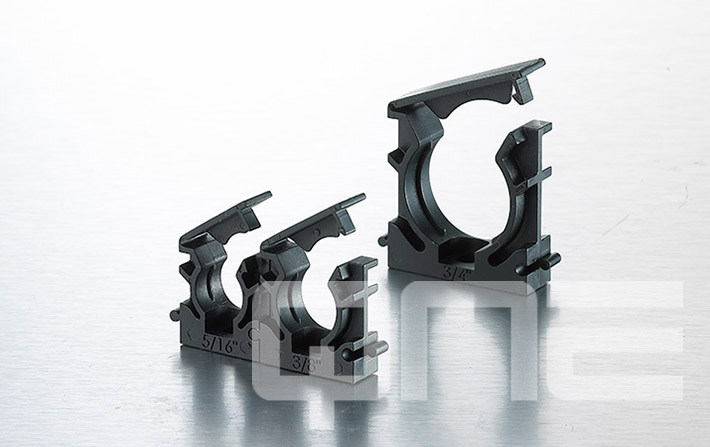

Bracket for Nylon Flexible Conduit-patent
Material:UL approved Halogen-Free Nylon PA66 flammability UL 94V-2 );
Working temperature:-40℃ to 100℃
Colours:Black(RAL9005), other color available upon request.
High-tensile strength corrugated tubing fittings(Strong resistance to pull, Quick-fit)

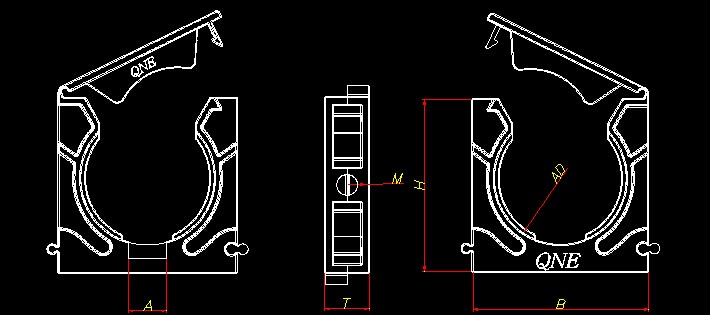

| Size | Accommodated Pipes | H(mm) | B(mm) | T(mm) | M(mm) | A(mm) | |
|---|---|---|---|---|---|---|---|
| QNE-ZJ-10.0 | AD10.0 | 1/4 | 30 | 23 | 12.5 | 4 | 6.5 |
| QNE-ZJ-13.0 | AD13.0 | 5/16 | 30 | 23 | 12.5 | 4 | 6.5 |
| QNE-ZJ-15.8 | AD15.8 | 3/8 | 30 | 23 | 12.5 | 4 | 6.5 |
| QNE-ZJ-18.5 | AD18.5 | - | 35 | 30 | 15.0 | 5 | 6.5 |
| QNE-ZJ-21.2 | AD21.2 | 1/2 | 35 | 30 | 15.0 | 5 | 6.5 |
| QNE-ZJ-25.0 | AD25.0 | - | 35 | 30 | 15 | 5 | 6.5 |
| QNE-ZJ-28.5 | AD28.5 | 3/4 | 42 | 38 | 16.0 | 6 | 11.5 |
| QNE-ZJ-34.5 | AD34.5 | 1 | 51 | 43 | 16.0 | 6 | 11.5 |
| QNE-ZJ-42.5 | AD42.5 | 1 1/4 | 61 | 51 | 16.0 | 6 | 11.5 |
| QNE-ZJ-54.5 | AD54.5 | 2 | 74 | 64 | 20 | 6 | 11.5 |
