    PRODUCT NAME

    Nylon Cable Glands (Standard Type M,PG)

    Metric

    PG



    Thread: Metric, PG, G(PF), and NPT thread

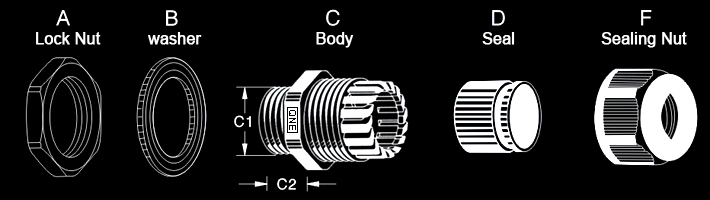

    Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
    Protection degree: IP68
    Working temperature: -40℃ to 100℃
    Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
    Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.


    Thread Item. No. Cable
    Range    		 Thread
    O. D.    		 Thread
    Length    		 Spanner
    Size    		 Std. Pkg
    Ф(mm) C1(mm) C2(mm) A&F(mm) (pcs)
    M8x1.25 NCG-M8-2.5 1-2.5 8 7.5 12/13 50
    M8x1.25 NCG-M8-4.8 2-4.8 8 7.5 12/13 50
    M10x1.5 NCG-M10 -3 1-3 10 8 15/13 50
    M10x1.5 NCG-M10 -6 3-6 10 8 15/13 50
    M12x1.5 NCG-M12S -3 1-3 12 8.5 18/15 50
    M12x1.5 NCG-M12S-6 3-6.5 12 8.5 18/15 50
    M12x1.5 NCG-M12SL-3 1-3 12 15 18/15 50
    M12x1.5 NCG-M12SL-6 3-6.5 12 15 18/15 50
    M12x1.5 NCG-M12 -3 1.5-3 12 8.5 18/19 50
    M12x1.5 NCG-M12 -5 3-5.5 12 8.5 18/19 50
    M12x1.5 NCG-M12 -7 4-8 12 8.5 18/19 50
    M12x1.5 NCG-M12L-5 3-5.5 12 15 18/19 50
    M12x1.5 NCG-M12L-7 4-8 12 15 18/19 50
    M16x1.5 NCG-M16S-5 3-5.5 16 10 22/19 50
    M16x1.5 NCG-M16S-8 4-8 16 10 22/19 50
    M16x1.5 NCG-M16SL-5 3-5.5 16 15 22/19 50
    M16x1.5 NCG-M16SL-8 4-8 16 15 22/19 50
    M16x1.5 NCG-M16-7 3-7 16 10 22/22 50
    M16x1.5 NCG-M16-10 5-10 16 10 22/22 50
    M16x1.5 NCG-M16L-7 3-7 16 15 22/22 50
    M16x1.5 NCG-M16L-10 5-10 16 15 22/22 50
    M18x1.5 NCG-M18-7 3-7 18 10 24/22 50
    M18x1.5 NCG-M18-10 5-10 18 10 24/22 50
    M18x1.5 NCG-M18L-7 3-7 18 15 24/22 50
    M18x1.5 NCG-M18L-10 5-10 18 15 24/22 50
    M20x1.5 NCG-M20M-7 3-7 20 10 27/22 50
    M20x1.5 NCG-M20M-10 5-10 20 10 27/22 50
    M20x1.5 NCG-M20S-9 5-9 20 10 27/24 50
    M20x1.5 NCG-M20S-12.5 6-12.5 20 10 27/24 50
    M20x1.5 NCG-M20SL-9 5-9 20 15 27/24 50
    M20x1.5 NCG-M20SL-12.5 6-12.5 20 15 27/24 50
    M20x1.5 NCG-M20-11 5-11 20 11 27/27 50
    M20x1.5 NCG-M20-13.5 8.5-14 20 11 27/27 50
    M20x1.5 NCG-M20L-11 5-11 20 15 27/27 50
    M20x1.5 NCG-M20L-13.5 8.5-14 20 15 27/27 50
    M22X1.5 NCG-M22-11 5-11 22 11 30/27 50
    M22X1.5 NCG-M22-13.5 8.5-14 22 11 30/27 50
    M24X1.5 NCG-M24-11 5-11 24 11 30/27 50
    M24X1.5 NCG-M24 -14 8.5-14 24 11 30/27 50
    M25x1.5 NCG-M25S-11 5-11 25 11.6 33/27 50
    M25x1.5 NCG-M25S -14 8.5-14 25 11.6 33/27 50
    M25x1.5 NCG-M25-7.9 5-7.9 25 11.6 33/33 50
    M25x1.5 NCG-M25-8.5 6-8.5 25 11.6 33/33 50
    M25x1.5 NCG-M25 -13 7-13 25 11.6 33/33 50
    M25x1.5 NCG-M25 -18 12.5-18 25 11.6 33/33 50
    M25x1.5 NCG-M25L-8.5 6-8.5 25 15 33/33 50
    M25x1.5 NCG-M25L-13 7-13 25 15 33/33 50
    M25x1.5 NCG-M25L-18 12.5-18 25 15 33/33 50
    M27x2 NCG-M27-18 14-18 27 15 33/33 50
    M32x1.5 NCG-M32-17.5 13-17.5 32 15 41/42 20
    M32x1.5 NCG-M32-25 17-25 32 15 41/42 20
    M36x1.5 NCG-M36-17.5 13-17.5 36 12 45/42 20
    M36x1.5 NCG-M36-25 17-25 36 12 45/42 20
    M40x1.5 NCG-M40M-13 9-13 40 15 37/33 10
    M40x1.5 NCG-M40-26.5 18-25 40 15 50/52 10
    M40x1.5 NCG-M40-31 23-32 40 15 50/52 10
    M50x1.5 NCG-M50-32 25-32 50 15 62/62 10
    M50x1.5 NCG-M50-41 30-41 50 15 62/62 10
    M63x1.5 NCG-M63-41 29-38 63 18 75/65 10
    M63x1.5 NCG-M63-45 35-45 63 18 75/65 10
    PG7 NCG-PG7S-3 1-3 12.5 8 17/15 50
    PG7 NCG-PG7S-6 3-6.5 12.5 8 17/15 50
    PG7 NCG-PG7SL-3 1-3 12.5 15 17/15 50
    PG7 NCG-PG7SL-6 3-6.5 12.5 15 17/15 50
    PG7 NCG-PG7-5 3-5.5 12.5 8 17/19 50
    PG7 NCG-PG7-8 4-8 12.5 8 17/19 50
    PG9 NCG-PG9-5.5 3-5.5 15.2 8.2 22/19 50
    PG9 NCG-PG9-7.5 4-8 15.2 8.2 22/19 50
    PG9 NCG-PG9L-5.5 3-5.5 15.2 15 22/19 50
    PG9 NCG-PG9L-7.5 4-8 15.2 15 22/19 50
    PG11 NCG-PG11-7 3-7 18.6 10 24/22 50
    PG11 NCG-PG11-10 5-10 18.6 10 24/22 50
    PG11 NCG-PG11L-7 3-7 18.6 15 24/22 50
    PG11 NCG-PG11L-10 5-10 18.6 15 24/22 50
    PG13.5 NCG-PG13.5-9 5-9 20.4 10 27/24 50
    PG13.5 NCG-PG13.5-12.5 6-12.5 20.4 10 27/24 50
    PG13.5 NCG-PG13.5L-9 5-9 20.4 15 27/24 50
    PG13.5 NCG-PG13.5L-12.5 6-12.5 20.4 15 27/24 50
    PG16 NCG-PG16-11 5-11 22.5 10.8 30/27 50
    PG16 NCG-PG16-14 8.5-14 22.5 10.8 30/27 50
    PG16 NCG-PG16L-11 5-11 22.5 15 30/27 50
    PG16 NCG-PG16L-14 8.5-14 22.5 15 30/27 50
    PG19 NCG-PG19-11 5-11 24 11 30/27 50
    PG19 NCG-PG19-14 8.5-14 24 11 30/27 50
    PG21 NCG-PG21-7.9 5-7.9 28.3 12 36/33 50
    PG21 NCG-PG21-8.5 6-8.5 28.3 12 36/33 50
    PG21 NCG-PG21-13 7-13 28.3 12 36/33 50
    PG21 NCG-PG21-16 13-16 28.3 12 36/33 50
    PG21 NCG-PG21-17.5 12.5-18 28.3 12 36/33 50
    PG21 NCG-PG21L-8.5 6-8.5 28.3 15 36/33 50
    PG21 NCG-PG21L-13 7-13 28.3 15 36/33 50
    PG21 NCG-PG21L-16 13-16 28.3 15 36/33 50
    PG21 NCG-PG21L-17.5 12.5-18 28.3 15 36/33 50
    PG25 NCG-PG25-20 14-20 30 13 36/37 50
    PG29 NCG-PG29-17.5 13-17.5 37 12 46/41 20
    PG29 NCG-PG29-25 17-25 37 12 46/41 20
    PG36 NCG-PG36-25.5 17-25.5 47 15 57/52 10
    PG36 NCG-PG36-31 24-32 47 15 57/52 10
    PG42 NCG-PG42-32 25-32 54 15 64/62 10
    PG42 NCG-PG42-41 30-41 54 15 64/62 10
    PG48 NCG-PG48-38 29-38 59.3 18.2 70/65 10
    PG48 NCG-PG48-45 35-45 59.3 18.2 70/65 10
