PRODUCT NAME

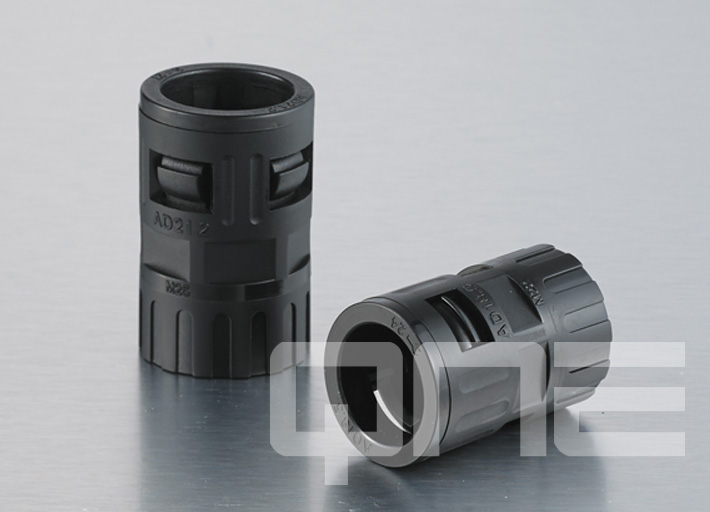

Inner thread quick connector for flexible pipes
Materials: UL approved Nylon PA66 (Flammability UL 94V-2)；（Accept to make flammability UL 94V-0 ）
Working temperature: -40℃ to 100℃
Features: “Inner screw thread”; The claws
of excellent design, to provide a fast & safe connection with the
tubing and to get an excellent result of the pullout strength to be the
best balanced performers for cable protection system.
Color: Black(RAL9005), other colors are available upon request.

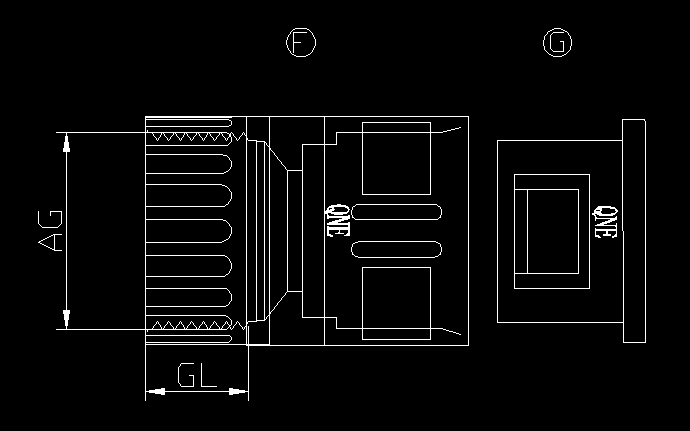

| Item. No. | Accommodated Pipes |
AG Inner diameter |
Thread Length GL |
|---|---|---|---|
| ITF-AD10-M13 | AD10 | M13X1.5 | 13 |
| ITF-AD13-M16 | AD13 | M16X1.5 | 16 |
| ITF-AD15.8-M20 | AD15.8 | M20X1.5 | 16 |
| ITF-AD18.5-M22 | AD18.5 | M22X1.5 | 16 |
| ITF-AD21.2-M25 | AD21.2 | M25X1.5 | 17 |
| ITF-AD28.5-M30 | AD28.5 | M30X1.5 | 17 |
