PRODUCT NAME

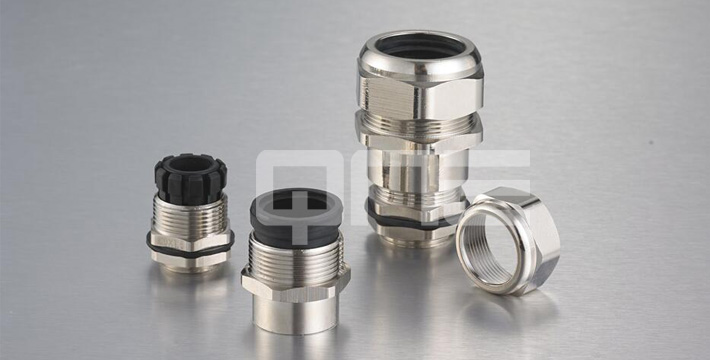

Metal Flexible Conduit Gland
hread: Metric, PG, G (PF), and NPT thread

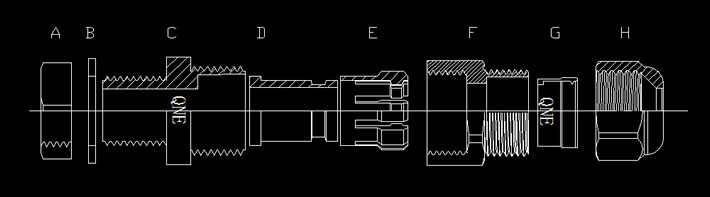

Materials: Brass with nickel plated for A, C, F, H parts, UL approved nylon PA66 (flammability UL94V-2) for
E part, EPDM rubber for B, D, G parts.
Protection Degree: IP68
Working Temperature: -40℃ to 100℃ in static state, or instantaneous heat resistance up to 120℃
Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open,
can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid,
Alcohol, oil, grease and common solvency.
Note: Special size and type, please contact us
| Thread | Item. No. | Cable Range (mm) |
Accomodated Pipes |
Thread O.D. D1 (mm) |
Thread Length L1 (mm) |
Spanner Size |
Std. Pkg (pcs) |
|---|---|---|---|---|---|---|---|
| M12×1.5 | M12-AD10.0 | 3-6 | AD10.0 | 12 | 6 | 16 | 100 |
| M14×1.5 | M14-AD10.0 | 3-6 | AD10.0 | 14 | 6 | 16 | 100 |
| M16×1.5 | M16-AD13.0 | 4-8 | AD13.0 | 16 | 7 | 18 | 100 |
| M18×1.5 | M18-AD15.8 | 6-10 | AD15.8 | 18 | 8 | 20 | 100 |
| M20×1.5 | M20-AD15.8 | 8-12 | AD15.8 | 20 | 8 | 22 | 100 |
| M20×1.5 | M20-AD18.5 | 8-12 | AD18.5 | 20 | 8 | 22 | 100 |
| M20×1.5 | M20-AD21.2 | 8-12 | AD21.2 | 20 | 8 | 22 | 100 |
| M22×1.5 | M22-AD21.2 | 10-14 | AD21.2 | 22 | 9 | 24 | 100 |
| M24×1.5 | M24-AD21.2 | 10-14 | AD21.2 | 24 | 10 | 27 | 100 |
| M25×1.5 | M25-AD21.2 | 10-14 | AD21.2 | 25 | 10 | 28 | 100 |
| M25×1.5 | M25-AD28.5 | 10-14 | AD28.5 | 25 | 10 | 28 | 100 |
| M27×1.5 | M27-AD28.5 | 13-18 | AD28.5 | 27 | 11 | 30 | 100 |
| M30×1.5 | M30-AD34.5 | 13-18 | AD34.5 | 30 | 11 | 32 | 50 |
| M32×1.5 | M32-AD34.5 | 15-22 | AD34.5 | 32 | 11 | 36 | 50 |
| M33×1.5 | M33-AD34.5 | 15-22 | AD34.5 | 33 | 11 | 36 | 50 |
| M36×1.5 | M36-AD34.5 | 18-25 | AD34.5 | 36 | 11 | 42 | 50 |
| M40×1.5 | M40-AD42.5 | 18-25 | AD42.5 | 40 | 12 | 45 | 50 |
| M50×1.5 | M50-AD54.5 | 26-32 | AD54.5 | 50 | 13 | 56 | 20 |
| M63×1.5 | M63-AD54.5 | 37-44 | AD54.5 | 63 | 14 | 70 | 20 |
| PG7 | PG7-AD10.0 | 3-6 | AD10.0 | 12.5 | 6 | 16 | 100 |
| PG9 | PG9-AD13.0 | 4-8 | AD13.0 | 15.2 | 7 | 16 | 100 |
| PG11 | PG11-AD15.8 | 6-10 | AD15.8 | 18.6 | 8 | 20 | 100 |
| PG13.5 | PG13.5-AD15.8 | 8-12 | AD15.8 | 20.4 | 8 | 22 | 100 |
| PG13.5 | PG13.5-AD18.5 | 8-12 | AD18.5 | 20.4 | 8 | 22 | 100 |
| PG13.5 | PG13.5-AD21.2 | 8-12 | AD21.2 | 20.4 | 8 | 22 | 100 |
| PG16 | PG16-AD21.2 | 10-14 | AD21.2 | 22.5 | 9 | 24 | 100 |
| PG21 | PG21-AD28.5 | 13-18 | AD28.5 | 28.3 | 11 | 30 | 100 |
| PG29 | PG29-AD34.5 | 18-25 | AD34.5 | 37 | 11 | 42 | 50 |
| PG36 | PG36-AD42.5 | 26-32 | AD42.5 | 47 | 13 | 52 | 50 |
| PG48 | PG48-AD54.5 | 37-44 | AD54.5 | 59.3 | 14 | 64 | 50 |
| G(PF)1/4 | G(PF)1/4-AD10.0 | 3-6 | AD10.0 | 13.2 | 6 | 16 | 100 |
| G(PF)3/8 | G(PF)3/8-AD13.0 | 4-8 | AD13.0 | 16.5 | 7 | 18 | 100 |
| G(PF)1/2 | G(PF)1/2-AD15.8 | 8-12 | AD15.8 | 21.3 | 8 | 22 | 100 |
| G(PF)1/2 | G(PF)1/2-AD18.5 | 8-12 | AD18.5 | 21.3 | 8 | 22 | 100 |
| G(PF)1/2 | G(PF)1/2-AD21.2 | 8-12 | AD21.2 | 21.3 | 8 | 22 | 100 |
| G(PF)3/4 | G(PF)3/4-AD28.5 | 13-18 | AD28.5 | 26.6 | 11 | 30 | 100 |
| G(PF)1 | G(PF)1-AD28.5 | 15-22 | AD28.5 | 33.4 | 11 | 36 | 50 |
| G(PF)1 1/4 | G(PF)1 1/4-AD34.5 | 22-28 | AD34.5 | 42.1 | 12 | 48 | 50 |
| G(PF)1 1/2 | G(PF)1 1/2-AD42.5 | 26-32 | AD42.5 | 47.8 | 13 | 52 | 50 |
| G(PF)2 | G(PF)2-AD54.5 | 37-44 | AD54.5 | 59.6 | 14 | 64 | 50 |
| NPT3/8 | NPT3/8-AD13.0 | 4-8 | AD13.0 | 16.5 | 7 | 18 | 100 |
| NPT1/2 | NPT1/2-AD15.8 | 8-12 | AD15.8 | 21.3 | 8 | 22 | 100 |
| NPT1/2 | NPT1/2-AD18.5 | 8-12 | AD18.58 | 21.3 | 8 | 22 | 100 |
| NPT1/2 | NPT1/2-AD21.2 | 8-12 | AD21.2 | 21.3 | 8 | 22 | 100 |
| NPT3/4 | NPT3/4-AD21.2 | 13-18 | AD21.2 | 26.6 | 11 | 30 | 100 |
| NPT3/4 | NPT3/4-AD28.5 | 13-18 | AD28.5 | 26.6 | 11 | 30 | 50 |
| NPT1 | NPT1-AD34.5 | 15-22 | AD34.5 | 33.4 | 11 | 36 | 50 |
