PRODUCT NAME
Brass Watertight Corrugated Tubing Fittings
Thread: Metric, PG, G(PF), and NPT thread

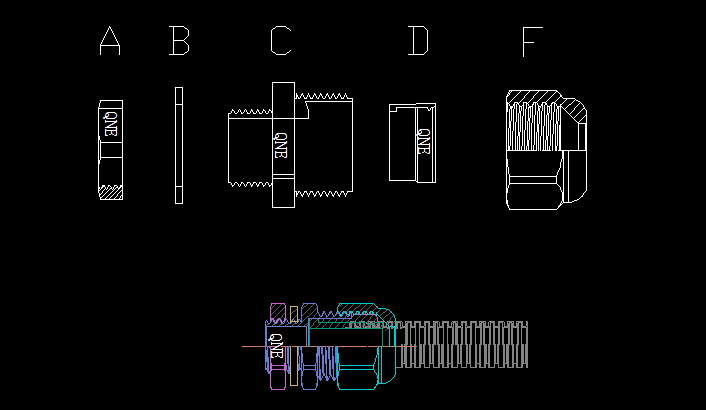

Brass with nickel plated for A. C. F parts, UL approved Nylon PA66
(Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept
to make super rubber: resist high temperature rubber, resist strong
acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The Powerful Watertight Fittings build the best tightening
power by a very high and active compression force to resist the ingress
of high pressure water jet from any angle which can provide 100% dynamic
waterproof and airtight performance over the widest range of corrugated
tubings.
The product can widely applied to resist water impact or immersion as a
tough cable protection system for any machines, devices and equipments
with the very specific demands
| Accommodated Pipes |
Item. No. | Thread | AG Outer diameter (mm) |
Thread Length GL (mm) |
Std. Pkg(pcs) |
|---|---|---|---|---|---|
| AD10.0 | BCWTF-M12-10.0 | M12 x 1.5 | 12 | 9 | 20 |
| AD10.0 | BCWTF-M16S-10.0-ST | M16 x 1.5 | 16 | 10 | 20 |
| AD13.0 | BCWTF-M16-13.0-ST | M16 x 1.5 | 16 | 10 | 20 |
| AD13.0 | BCWTF-M16-13.0 | M16 x 1.5 | 16 | 15 | 20 |
| AD13.0 | BCWTF-M20M-13.0-ST | M20 x 1.5 | 20 | 10 | 20 |
| AD13.0 | BCWTF-M20M-13.0 | M20 x 1.5 | 20 | 15 | 20 |
| AD15.8 | BCWTF-M16-15.8-ST | M16 x 1.5 | 16 | 10 | 20 |
| AD15.8 | BCWTF-M16-15.8 | M16 x 1.5 | 16 | 15 | 20 |
| AD15.8 | BCWTF-M20-15.8-ST | M20 x 1.5 | 20 | 10 | 20 |
| AD15.8 | BCWTF-M20-15.8 | M20 x 1.5 | 20 | 15 | 20 |
| AD15.8 | BCWTF-M22-15.8-ST | M22 x 1.5 | 22 | 10 | 20 |
| AD15.8 | BCWTF-M22-15.8 | M22 x 1.5 | 22 | 15 | 20 |
| AD15.8 | BCWTF-M25-15.8-ST | M25 x 1.5 | 25 | 12 | 20 |
| AD15.8 | BCWTF-M25-15.8 | M25 x 1.5 | 25 | 15 | 20 |
| AD18.5 | BCWTF-M16-18.5-ST | M16 x 1.5 | 16 | 10 | 20 |
| AD18.5 | BCWTF-M16-18.5 | M16 x 1.5 | 16 | 15 | 20 |
| AD18.5 | BCWTF-M20-18.5-ST | M20 x 1.5 | 20 | 10 | 20 |
| AD18.5 | BCWTF-M20-18.5 | M20 x 1.5 | 20 | 15 | 20 |
| AD18.5 | BCWTF-M22-18.5-ST | M22 x 1.5 | 22 | 10 | 20 |
| AD18.5 | BCWTF-M22-18.5 | M22 x 1.5 | 22 | 15 | 20 |
| AD18.5 | BCWTF-M25-18.5-ST | M25 x 1.5 | 25 | 12 | 20 |
| AD21.2 | BCWTF-M20-21.2-ST | M20 x 1.5 | 20 | 10 | 10 |
| AD21.2 | BCWTF-M20-21.2 | M20 x 1.5 | 20 | 15 | 10 |
| AD21.2 | BCWTF-M25-21.2-ST | M25 x 1.5 | 25 | 10 | 10 |
| AD21.2 | BCWTF-M25-21.2 | M25 x 1.5 | 25 | 15 | 10 |
| AD25.0 | BCWTF-M25-25.0-ST | M25 x 1.5 | 25 | 10 | 10 |
| AD25.0 | BCWTF-M25-25.0 | M25 x 1.5 | 25 | 15 | 10 |
| AD26.2 | BCWTF-M25-26.2-ST | M25 x 1.5 | 25 | 10 | 10 |
| AD26.2 | BCWTF-M25-26.2 | M25 x 1.5 | 25 | 15 | 10 |
| AD28.5 | BCWTF-M25-28.5-ST | M25 x 1.5 | 25 | 10 | 10 |
| AD28.5 | BCWTF-M25-28.5 | M25 x 1.5 | 25 | 15 | 10 |
| AD34.5 | BCWTF-M32-34.5-ST | M32 x 1.5 | 32 | 10 | 5 |
| AD34.5 | BCWTF-M32-34.5 | M32 x 1.5 | 32 | 15 | 5 |
| AD42.5 | BCWTF-M40-42.5 | M40 x 1.5 | 40 | 15 | 5 |
| AD42.5 | BCWTF-M50-42.5 | M50 x 1.5 | 50 | 15 | 5 |
| AD48 | BCWTF-M50-48 | M50 x 1.5 | 50 | 15 | 1 |
| AD54.5 | BCWTF-M50-54.5 | M50 x 1.5 | 50 | 22 | 1 |
| AD54.5 | BCWTF-M63-54.5 | M63 x 1.5 | 63 | 25 | 1 |
| AD60 | BCWTF-M50-60 | M50 x 1.5 | 50 | 22 | 1 |
| AD60 | BCWTF-M50-60 | M63 x 1.5 | 63 | 25 | 1 |
| AD10.0 | BCWTF-PG7-10.0 | PG7 | 12.5 | 9 | 20 |
| AD10.0 | BCWTF-PG9-10.0 | PG9 | 15.2 | 9 | 20 |
| AD13.0 | BCWTF-PG11-13.0 | PG11 | 18.6 | 10 | 20 |
| AD15.8 | BCWTF-PG13.5-15.8 | PG13.5 | 20.4 | 10 | 20 |
| AD15.8 | BCWTF-PG16-15.8 | PG16 | 22.5 | 10.8 | 20 |
| AD18.5 | BCWTF-PG13.5-18.5 | PG13.5 | 20.4 | 10 | 20 |
| AD18.5 | BCWTF-PG16-18.5 | PG16 | 22.5 | 10.8 | 20 |
| AD21.2 | BCWTF-PG16-21.2 | PG16 | 22.5 | 13 | 10 |
| AD21.2 | BCWTF-PG21-21.2 | PG21 | 28.3 | 13 | 10 |
| AD28.5 | BCWTF-PG21-28.5 | PG21 | 28.3 | 13 | 10 |
| AD34.5 | BCWTF-PG29-34.5 | PG29 | 37 | 13 | 5 |
| AD42.5 | BCWTF-PG36-42.5 | PG36 | 47 | 13 | 5 |
| AD54.5 | BCWTF-PG48-54.5 | PG48 | 59.3 | 16 | 1 |
| AD60 | BCWTF-PG48-60 | PG48 | 59.3 | 16 | 1 |
| AD10.0 | BCWTF-PF1/4-10.0 | G(PF)1/4 | 13.1 | 9 | 20 |
| AD13.0 | BCWTF-PF3/8-13.0 | G(PF)3/8 | 16.6 | 15 | 20 |
| AD15.8 | BCWTF-PF1/2-15.8 | G(PF)1/2 | 20.9 | 15 | 20 |
| AD18.5 | BCWTF-PF1/2-18.5 | G(PF)1/2 | 20.9 | 15 | 20 |
| AD21.2 | BCWTF-PF1/2-21.2 | G(PF)1/2 | 20.9 | 15 | 10 |
| AD21.2 | BCWTF-PF1/2-21.2 | G(PF)3/4 | 26.4 | 15 | 10 |
| AD28.5 | BCWTF-PF3/4-28.5 | G(PF)3/4 | 26.4 | 15 | 10 |
| AD34.5 | BCWTF-PF1-34.5 | G(PF)1 | 33.2 | 15 | 5 |
| AD42.5 | BCWTF-PF1 1/4-42.5 | G(PF)1 1/4 | 41.9 | 15 | 5 |
| AD54.5 | BCWTF-PF1 1/2-54.5 | G(PF)1 1/2 | 48 | 15 | 1 |
| AD54.5 | BCWTF-PF2-54.5 | G(PF)2 | 60 | 15 | 1 |
| AD60 | BCWTF-PF1 1/2-60 | G(PF)1 1/2 | 48 | 15 | 1 |
| AD60 | BCWTF-PF2-60 | G(PF)2 | 60 | 15 | 1 |
