PRODUCT NAME

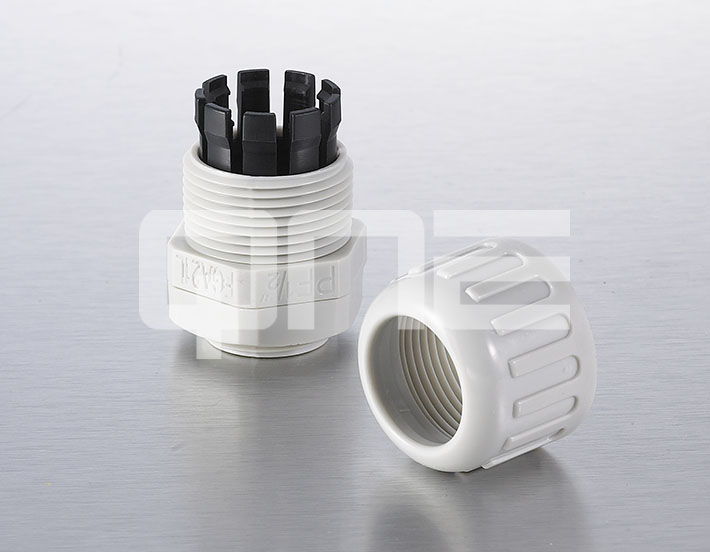

Corrugated Tubing Fittings (Superb Pullout Strength)
Thread: Metric、PG、G(PF) and NPT thread
Material: UL approved Halogen-Free Nylon PA66 (Flammability UL 94V-2)

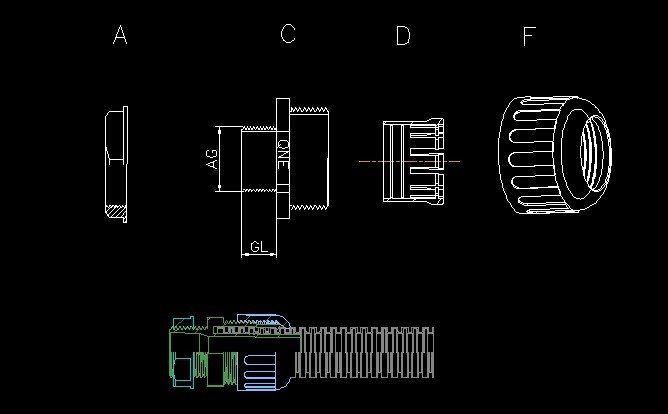

for A. C. D. F parts, (Accept to make flammability UL 94V-0 );
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: suitable for different materials and hardness of the Plastic Flexible Pipes.
Colours: Black(RAL9005)、grey(RAL7035), other color available upon request.
High-tensile strength corrugated tubing fittings(Strong resistance to pull, Quick-fit)
| Accommodated Pipes |
Item. No. | Thread | AG Outer diameter (mm) |
Thread Length GL (mm) |
Std. Pkg(pcs) |
|---|---|---|---|---|---|
| AD10.0 | STF-M12-10.0 | M12 x 1.5 | 12 | 9 | 50 |
| AD10.0 | STF-M16-10.0-ST | M16 x 1.5 | 16 | 10 | 50 |
| AD13.0 | STF-M16-13.0-ST | M16 x 1.5 | 16 | 10 | 50 |
| AD13.0 | STF-M16-13.0 | M16 x 1.5 | 16 | 15 | 50 |
| AD15.8 | STF-M16-15.8-ST | M16 x 1.5 | 16 | 10 | 50 |
| AD15.8 | STF-M16-15.8 | M16 x 1.5 | 16 | 15 | 50 |
| AD15.8 | STF-M20-15.8-ST | M20 x 1.5 | 20 | 10 | 50 |
| AD15.8 | STF-M20-15.8 | M20 x 1.5 | 20 | 15 | 50 |
| AD15.8 | STF-M22-15.8-ST | M22 x 1.5 | 22 | 10 | 50 |
| AD15.8 | STF-M22-15.8 | M22 x 1.5 | 22 | 15 | 50 |
| AD15.8 | STF-M25-15.8-ST | M25 x 1.5 | 25 | 12 | 50 |
| AD18.5 | STF-M16-18.5-ST | M16 x 1.5 | 16 | 10 | 50 |
| AD18.5 | STF-M16-18.5 | M16 x 1.5 | 16 | 15 | 50 |
| AD18.5 | STF-M20-18.5-ST | M20 x 1.5 | 20 | 10 | 50 |
| AD18.5 | STF-M20-18.5 | M20 x 1.5 | 20 | 15 | 50 |
| AD18.5 | STF-M22-18.5-ST | M22 x 1.5 | 22 | 10 | 50 |
| AD18.5 | STF-M22-18.5 | M22 x 1.5 | 22 | 15 | 50 |
| AD18.5 | STF-M25-18.5-ST | M25 x 1.5 | 25 | 12 | 50 |
| AD21.2 | STF-M20-21.2-ST | M20 x 1.5 | 20 | 10 | 50 |
| AD21.2 | STF-M20-21.2 | M20 x 1.5 | 20 | 15 | 50 |
| AD21.2 | STF-M25-21.2-ST | M25 x 1.5 | 25 | 10 | 50 |
| AD21.2 | STF-M25-21.2 | M25 x 1.5 | 25 | 15 | 50 |
| AD25.0 | STF-M25-25.0-ST | M25 x 1.5 | 25 | 10 | 50 |
| AD25.0 | STF-M25-25.0 | M25 x 1.5 | 25 | 15 | 50 |
| AD26.2 | STF-M25-26.2-ST | M25 x 1.5 | 25 | 10 | 50 |
| AD26.2 | STF-M25-26.2 | M25 x 1.5 | 25 | 15 | 50 |
| AD28.5 | STF-M25-28.5-ST | M25 x 1.5 | 25 | 10 | 50 |
| AD28.5 | STF-M25-28.5 | M25 x 1.5 | 25 | 15 | 50 |
| AD34.5 | STF-M32-34.5-ST | M32 x 1.5 | 32 | 10 | 20 |
| AD34.5 | STF-M32-34.5 | M32 x 1.5 | 32 | 15 | 20 |
| AD42.5 | STF-M40-42.5 | M40 x 1.5 | 40 | 15 | 10 |
| AD42.5 | STF-M50-42.5 | M50 x 1.5 | 50 | 15 | 10 |
| AD48 | STF-M50-48 | M50 x 1.5 | 50 | 15 | 10 |
| AD54.5 | STF-M50-54.5 | M50 x 1.5 | 50 | 22 | 10 |
| AD54.5 | STF-M63-54.5 | M63 x 1.5 | 63 | 25 | 10 |
| AD60 | STF-M50-60 | M50 x 1.5 | 50 | 22 | 10 |
| AD60 | STF-M63-60 | M63 x 1.5 | 63 | 25 | 10 |
| AD10.0 | STF-PG7-10.0 | PG7 | 12.5 | 9 | 50 |
| AD10.0 | STF-PG9-10.0 | PG9 | 15.2 | 9 | 50 |
| AD13.0 | STF-PG11-13.0 | PG11 | 18.6 | 10 | 50 |
| AD15.8 | STF-PG13.5-15.8 | PG13.5 | 20.4 | 10 | 50 |
| AD15.8 | STF-PG16-15.8 | PG16 | 22.5 | 10.8 | 50 |
| AD18.5 | STF-PG13.5-18.5 | PG13.5 | 20.4 | 10 | 50 |
| AD18.5 | STF-PG16-18.5 | PG16 | 22.5 | 10.8 | 50 |
| AD21.2 | STF-PG16-21.2 | PG16 | 22.5 | 13 | 50 |
| AD21.2 | STF-PG21-21.2 | PG21 | 28.3 | 13 | 50 |
| AD26.2 | STF-PG21-26.2 | PG21 | 28.3 | 13 | 50 |
| AD28.5 | STF-PG21-28.5 | PG21 | 28.3 | 13 | 50 |
| AD34.5 | STF-PG29-34.5 | PG29 | 37 | 13 | 20 |
| AD42.5 | STF-PG36-42.5 | PG36 | 47 | 13 | 10 |
| AD48 | STF-PG42-48 | PG42 | 59.3 | 16 | 10 |
| AD54.5 | STF-PG48-54.5 | PG48 | 59.3 | 16 | 10 |
| AD60 | STF-PG48-60 | PG48 | 59.3 | 16 | 10 |
| AD10.0 | STF-1/4-10.0 | PF 1/4 | 13.1 | 9 | 50 |
| AD13.0 | STF-PF3/8-13.0 | PF 3/8 | 16.6 | 15 | 50 |
| AD15.8 | STF-PF1/2-15.8 | PF 1/2 | 20.9 | 15 | 50 |
| AD18.5 | STF-PF1/2-18.5 | PF 1/2 | 20.9 | 15 | 50 |
| AD21.2 | STF-PF1/2-21.2 | PF 1/2 | 20.9 | 15 | 50 |
| AD21.2 | STF-PF3/4-21.2 | PF 3/4 | 26.4 | 15 | 50 |
| AD26.2 | STF-PF3/4-26.2 | PF 3/4 | 26.4 | 15 | 50 |
| AD28.5 | STF-PF3/4-28.5 | PF 3/4 | 26.4 | 15 | 50 |
| AD34.5 | STF-PF1-34.5 | PF 1 | 33.2 | 15 | 20 |
| AD42.5 | STF-PF1 1/4-42.5 | PF1 1/4 | 41.9 | 15 | 10 |
| AD54.5 | STF-PF1 1/2-54.5 | PF1 1/2 | 48 | 15 | 10 |
| AD54.5 | STF-PF2-54.5 | PF 2 | 60 | 15 | 10 |
| AD60 | STF-PF1 1/2-60 | PF1 1/2 | 48 | 15 | 10 |
| AD60 | STF-PF2-60 | PF 2 | 60 | 15 | 10 |
