Inner Thread Watertight Corrugated Conduit Fitting ( IP68, Superb Pullout, ROHS)
· Thread: Metric
· Material: UL approved Halogen-free Nylon PA66(Flamability UL 94V-2), (Accept to make flammability UL 94V-0 ); EPDM rubber(Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
· Protection degree: IP68
· Working temperature: -40℃-100℃ in static state, or instantaneous heat resistant up to 120℃; -20℃-80℃ in dynamic state, or instantaneous heat resistant up to 100℃
· Features: The powerful watertight conduit fittings build the perfect tightening power to resist ingress of high pressure water jet, which can connect the curragated conduit tightly and waterproof
· Colours: Black(RAl9005), gray(RAL7035), other color available upon request

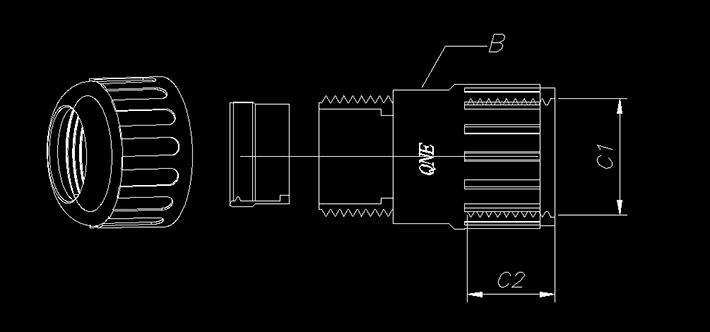

| Item. No. | Accommodated Pipes |
ThreadIinside Diameter C1 |
Thread Length C2 (mm) |
Spanner Size B (mm) |
|---|---|---|---|---|
| NWTF-M20-AD13 | AD13 | 20x1.5 | 15 | 23 |
| NWTF-M25-AD15.8 | AD15.8 | 25x1.5 | 15 | 27 |
| NWTF-M25-AD18.5 | AD18.5 | 25x1.5 | 15 | 27 |
