PRODUCT NAME

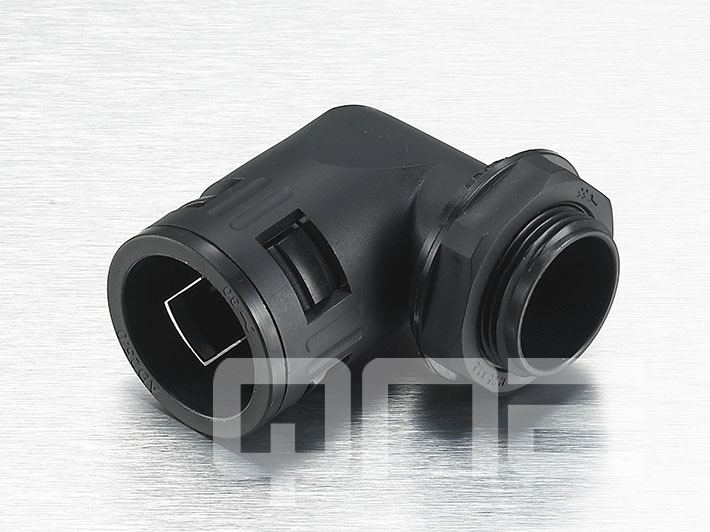

Right Angle Connector for Flexible Pipes
Thread: Metric and PG 、G (PF / BSP / PS)
Material: Nylon PA66
Working temperature: -40℃ to 100℃
Colour: Black, other color available upon request.
Features: Right angle connector is the fitting of
flexible corrugated pipes, but accession equipment case at the body, can
select for use thread insert imports and exports at interior electronic
apparatus of thread too, only need the hose to insert the interface.
| Accommodated Pipes |

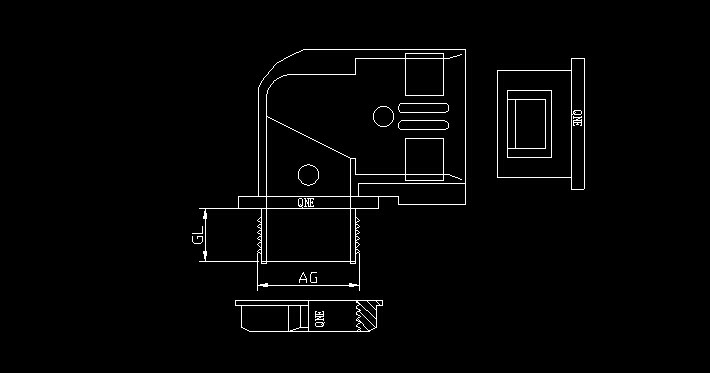

Item. No. | Thread | AG OuterL.D. diameter (mm) |
Thread Length C (mm) |
|---|---|---|---|---|
| AD10.0 | RTF-M10-10.0 | M10 x 1.5 | 10 | 10 |
| AD10.0 | RTF-M12-10.0 | M12 x 1.5 | 12 | 10 |
| AD13.0 | RTF-M16-13.0 | M16 x 1.5 | 16 | 10 |
| AD13.0 | RTF-M18-13.0 | M18 x 1.5 | 18 | 10 |
| AD13.0 | RTF-M20-13.0 | M20 x 1.5 | 20 | 10 |
| AD15.8 | RTF-M16-15.8 | M16 x 1.5 | 16 | 10 |
| AD15.8 | RTF-M18-15.8 | M18 x 1.5 | 18 | 10 |
| AD15.8 | RTF-M20-15.8 | M20 x 1.5 | 20 | 10 |
| AD18.5 | RTF-M16-18.5 | M16 x 1.5 | 16 | 11.5 |
| AD18.5 | RTF-M18-18.5 | M18 x 1.5 | 18 | 11.5 |
| AD18.5 | RTF-M20-18.5 | M20 x 1.5 | 20 | 11.5 |
| AD21.2 | RTF-M20-21.2 | M20 x 1.5 | 20 | 13 |
| AD21.2 | RTF-M24-21.2 | M24 x 1.5 | 24 | 13 |
| AD21.2 | RTF-M25-21.2 | M25 x 1.5 | 25 | 13 |
| AD25.0 | RTF-M25-25.0 | M25 x 1.5 | 25 | 13 |
| AD28.5 | RTF-M25-28.5 | M25 x 1.5 | 25 | 13 |
| AD28.5 | RTF-M27-28.5 | M27 x 1.5 | 27 | 13 |
| AD28.5 | RTF-M30-28.5 | M30 x 1.5 | 30 | 13 |
| AD34.5 | RTF-M32-34.5 | M32 x 1.5 | 32 | 14.5 |
| AD34.5 | RTF-M36-34.5 | M36 x 1.5 | 36 | 14.5 |
| AD34.5 | RTF-M40-34.5 | M40 x 1.5 | 40 | 14.5 |
| AD42.5 | RTF-M40-42.5 | M40 x 1.5 | 40 | 14.5 |
| AD42.5 | RTF-M48-42.5 | M48 x 1.5 | 48 | 14.5 |
| AD42.5 | RTF-M50-42.5 | M50 x 1.5 | 50 | 14.5 |
| AD54.5 | RTF-M50-54.5 | M50 x 1.5 | 50 | 16 |
| AD54.5 | RTF-M63-54.5 | M63 x 1.5 | 63 | 16 |
| AD10.0 | RTF-PG7-10.0 | PG7 | 12.5 | 10 |
| AD13.0 | RTF-PG9-13.0 | PG9 | 15.2 | 10 |
| AD15.8 | RTF-PG11-15.8 | PG11 | 18.6 | 10 |
| AD15.8 | RTF-PG13.5-15.8 | PG13.5 | 20.4 | 10 |
| AD18.5 | RTF-PG13.5-18.5 | PG13.5 | 20.4 | 11 |
| AD21.2 | RTF-PG16-21.2 | PG16 | 22.5 | 13 |
| AD25.0 | RTF-PG21-25 | PG21 | 28.3 | 13 |
| AD28.5 | RTF-PG21-28.5 | PG21 | 28.3 | 13 |
| AD34.5 | RTF-PG29-34.5 | PG29 | 37 | 14.5 |
| AD42.5 | RTF-PG36-42.5 | PG36 | 47 | 14.5 |
| AD54.5 | RTF-PG42-54.5 | PG42 | 54 | 16 |
| AD54.5 | RTF-PG48-54.5 | PG48 | 59.3 | 16 |
| AD10.0 | RTF-G1/4-10.0 | G(PF) 1/4 | 13.157 | 10 |
| AD13.0 | RTF-G3/8-13.0 | G(PF) 3/8 | 16.662 | 10 |
| AD15.8 | RTF-G1/2-15.8 | G(PF) 1/2 | 20.955 | 10 |
| AD18.5 | RTF-G1/2-18.5 | G(PF) 1/2 | 20.955 | 11 |
| AD21.2 | RTF-G1/2-21.2 | G(PF) 1/2 | 20.955 | 13 |
| AD25.0 | RTF-G3/4-25.0 | G(PF) 3/4 | 26.441 | 13 |
| AD28.5 | RTF-G3/4-28.5 | G(PF)3/4 | 26.441 | 13 |
| AD34.5 | RTF-G1-34.5 | G(PF)1 | 33.2 | 14.5 |
| AD42.5 | RTF-G1 1/4-42.5 | G(PF)1 1/4 | 41.9 | 14.5 |
| AD42.5 | RTF-G1 1/2-42.5 | G(PF)1 1/2 | 48 | 15 |
| AD54.5 | RTF-G1 1/2-54.5 | G(PF)1 1/2 | 48 | 16 |
| AD54.5 | RTF-G2-54.5 | G(PF)2 | 60 | 16 |
