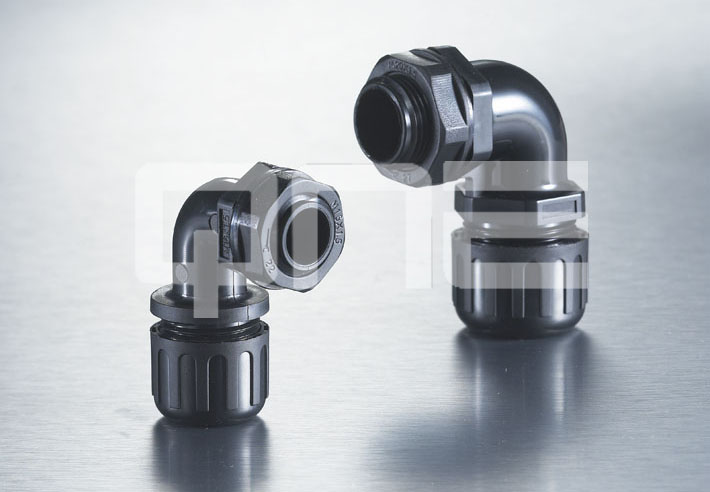

90°Elbow Powerful Watertight Corrugated Tubing Fittings
90°Elbow Powerful Watertight Corrugated Tubing Fittings
Thread: Metric, PG, G(PF), and NPT thread

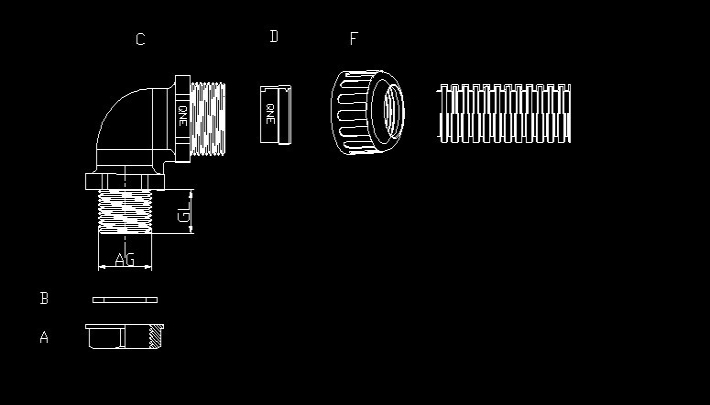

Materials: UL approved Nylon PA66PA 66(Flammability UL
94V-2)for A. C. F parts, Weather-resistant EPDM rubber for B. D parts.
(Accept to make super rubber: resist high temperature rubber, resist
strong acid/alkali,etc).
Working temperature: -40℃ to 100℃
Features: The elbow tubing fitting is a best 90°connector for the
housing panel and conduit,that is commonly used when the conduit system
is run in parallel to the housing wall and protect conduit from sharp
bending. In addition, The product build the best tightening power by a
very high and active compression force to resist the ingress of high
pressure water jet from any angle which can provide 100% dynamic
waterproof and airtight performance over the widest range of corrugated
tubings.
The product can widely applied to resist water impact or immersion as a
tough cable protection system for any machines, devices and equipments
with the very specific demands.
| Accommodated Pipes | Item. No. | Thread | AG Outer diameter (mm) |
Thread Length GL (mm) |
Body Min. L.D. (mm) |
Std. Pkg(pcs) |
|---|---|---|---|---|---|---|
| AD10.0 | EWTF-M12-10.0-ST | M12 x 1.5 | 12.0 | 10.0 | 8 | 50 |
| AD13.0 | EWTF-M16-13.0-ST | M16 x 1.5 | 16.0 | 10.0 | 10.7 | 50 |
| AD15.8 | EWTF-M16-15.8-ST | M16 x 1.5 | 16.0 | 10.0 | 11.1 | 50 |
| AD15.8 | EWTF-M16-15.8 | M16 x 1.5 | 16.0 | 15.0 | 11.0 | 50 |
| AD15.8 | EWTF-M20-15.8-ST | M20 x 1.5 | 20.0 | 10.0 | 14.7 | 50 |
| AD15.8 | EWTF-M20-15.8 | M20 x 1.5 | 20.0 | 15.0 | 14.7 | 50 |
| AD18.5 | EWTF-M16-18.5-ST | M16 x 1.5 | 16.0 | 10.0 | 11.0 | 50 |
| AD18.5 | EWTF-M16-18.5 | M16 x 1.5 | 16.0 | 15.0 | 11.0 | 50 |
| AD18.5 | EWTF-M20-18.5-ST | M20 x 1.5 | 20.0 | 10.0 | 14.7 | 50 |
| AD18.5 | EWTF-M20-18.5 | M20 x 1.5 | 20.0 | 15.0 | 14.7 | 50 |
| AD21.2 | EWTF-M20-21.2-ST | M20 x 1.5 | 20.0 | 10.0 | 14.8 | 50 |
| AD21.2 | EWTF-M20-21.2 | M20 x 1.5 | 20.0 | 15.0 | 14.8 | 50 |
| AD25.0 | EWTF-M25-25.0-ST | M25 x 1.5 | 25.0 | 10.0 | 19.2 | 50 |
| AD25.0 | EWTF-M25-25.0 | M25 x 1.5 | 25.0 | 15.0 | 19.2 | 50 |
| AD28.5 | EWTF-M25-28.5-ST | M25 x 1.5 | 25.0 | 10.0 | 19.9 | 50 |
| AD28.5 | EWTF-M25-28.5 | M25 x 1.5 | 25.0 | 15.0 | 19.9 | 50 |
| AD34.5 | EWTF-M32-34.5 | M32 x 1.5 | 32.0 | 15.0 | 26.2 | 20 |
| AD42.5 | EWTF-M40-42.5 | M40 x 1.5 | 40.0 | 20.0 | 34.0 | 10 |
| AD48 | EWTF-M50-48 | M50 x 1.5 | 50.0 | 20.0 | 41.0 | 1 |
