    PRODUCT NAME

    Powerful Watertight Corrugated Tubing Fittings


    Thread: Metric, PG, G(PF), and NPT thread

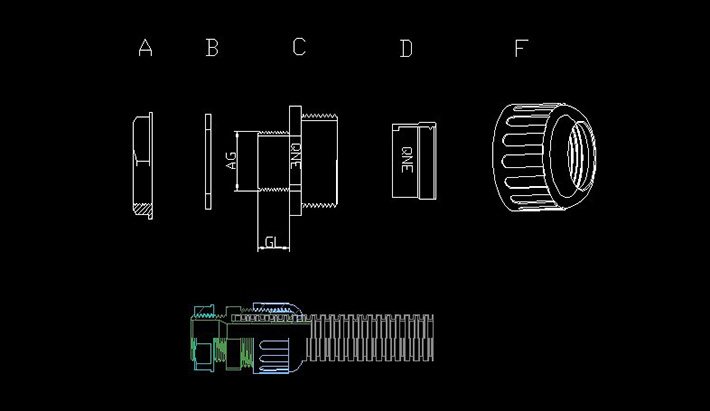

    Materials: UL approved Nylon PA66PA 66(Flammability UL 94V-2)for A. C. F parts, Weather-resistant EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
    Working temperature: -40℃ to 100℃
    Features: The Powerful Watertight Fittings build the best tightening power by a very high and active compression force to resist the ingress of high pressure water jet from any angle which can provide 100% dynamic waterproof and airtight performance over the widest range of corrugated tubings.

    The product can widely applied to resist water impact or immersion as a tough cable protection system for any machines, devices and equipments with the very specific demands.


    Accommodated
    Pipes    		 Item. No. Thread AG Outer
    diameter
    (mm)    		 Thread
    Length GL
    (mm)    		 Std.
    Pkg(pcs)
    AD10.0 WTF-M12-10.0 M12 x 1.5 12 9 50
    AD10.0 WTF-M16S-10.0-ST M16 x 1.5 16 10 50
    AD13.0 WTF-M16-13.0-ST M16 x 1.5 16 10 50
    AD13.0 WTF-M16-13.0 M16 x 1.5 16 15 50
    AD13.0 WTF-M20M-13.0-ST M20 x 1.5 20 10 50
    AD13.0 WTF-M20M-13.0 M20 x 1.5 20 15 50
    AD15.8 WTF-M16-15.8-ST M16 x 1.5 16 10 50
    AD15.8 WTF-M16-15.8 M16 x 1.5 16 15 50
    AD15.8 WTF-M20-15.8-ST M20 x 1.5 20 10 50
    AD15.8 WTF-M20-15.8 M20 x 1.5 20 15 50
    AD15.8 WTF-M22-15.8-ST M22 x 1.5 22 10 50
    AD15.8 WTF-M22-15.8 M22 x 1.5 22 15 50
    AD15.8 WTF-M25-15.8-ST M25 x 1.5 25 12 50
    AD15.8 WTF-M25-15.8 M25 x 1.5 25 15 50
    AD18.5 WTF-M16-18.5-ST M16 x 1.5 16 10 50
    AD18.5 WTF-M16-18.5 M16 x 1.5 16 15 50
    AD18.5 WTF-M20-18.5-ST M20 x 1.5 20 10 50
    AD18.5 WTF-M20-18.5 M20 x 1.5 20 15 50
    AD18.5 WTF-M22-18.5-ST M22 x 1.5 22 10 50
    AD18.5 WTF-M22-18.5 M22 x 1.5 22 15 50
    AD18.5 WTF-M25-18.5-ST M25 x 1.5 25 12 50
    AD21.2 WTF-M20-21.2-ST M20 x 1.5 20 10 50
    AD21.2 WTF-M20-21.2 M20 x 1.5 20 15 50
    AD21.2 WTF-M25-21.2-ST M25 x 1.5 25 10 50
    AD21.2 WTF-M25-21.2 M25 x 1.5 25 15 50
    AD25.0 WTF-M25-25.0-ST M25 x 1.5 25 10 50
    AD25.0 WTF-M25-25.0 M25 x 1.5 25 15 50
    AD26.2 WTF-M25-26.2-ST M25 x 1.5 25 10 50
    AD26.2 WTF-M25-26.2 M25 x 1.5 25 15 50
    AD28.5 WTF-M25-28.5-ST M25 x 1.5 25 10 50
    AD28.5 WTF-M25-28.5 M25 x 1.5 25 15 50
    AD34.5 WTF-M32-34.5-ST M32 x 1.5 32 10 20
    AD34.5 WTF-M32-34.5 M32 x 1.5 32 15 20
    AD42.5 WTF-M40-42.5 M40 x 1.5 40 15 10
    AD42.5 WTF-M50-42.5 M50 x 1.5 50 15 10
    AD48 WTF-M50-48 M50 x 1.5 50 15 10
    AD54.5 WTF-M50-54.5 M50 x 1.5 50 22 10
    AD54.5 WTF-M63-54.5 M63 x 1.5 63 25 10
    AD60 WTF-M50-60 M50 x 1.5 50 22 10
    AD60 WTF-M50-60 M63 x 1.5 63 25 10
    AD10.0 WTF-PG7-10.0 PG7 12.5 9 50
    AD10.0 WTF-PG9-10.0 PG9 15.2 9 50
    AD13.0 WTF-PG11-13.0 PG11 18.6 10 50
    AD15.8 WTF-PG13.5-15.8 PG13.5 20.4 10 50
    AD15.8 WTF-PG16-15.8 PG13.5 22.5 10.8 50
    AD18.5 WTF-PG13.5-18.5 PG13.5 20.4 10 50
    AD18.5 WTF-PG16-18.5 PG13.5 22.5 10.8 50
    AD21.2 WTF-PG16-21.2 PG16 22.5 13 50
    AD21.2 WTF-PG21-21.2 PG21 28.3 13 50
    AD28.5 WTF-PG21-28.5 PG21 28.3 13 50
    AD34.5 WTF-PG29-34.5 PG29 37 13 20
    AD42.5 WTF-PG36-42.5 PG36 47 13 10
    AD54.5 WTF-PG48-54.5 PG48 59.3 16 10
    AD60 WTF-PG48-60 PG48 59.3 16 10
    AD10.0 WTF-PF1/4-10.0 G(PF)1/4 13.1 9 50
    AD13.0 WTF-PF3/8-13.0 G(PF)3/8 16.6 15 50
    AD15.8 WTF-PF1/2-15.8 G(PF)1/2 20.9 15 50
    AD18.5 WTF-PF1/2-18.5 G(PF)1/2 20.9 15 50
    AD21.2 WTF-PF1/2-21.2 G(PF)1/2 20.9 15 50
    AD21.2 WTF-PF3/4-21.2 G(PF)3/4 26.4 15 50
    AD28.5 WTF-PF3/4-28.5 G(PF)3/4 26.4 15 50
    AD34.5 WTF-PF1-34.5 G(PF)1 33.2 15 20
    AD34.5 WTF-PF1 1/4-42.5 G(PF)1 1/4 41.9 15 10
    AD54.5 WTF-PF1 1/2-54.5 G(PF)1 1/2 48 15 10
    AD54.5 WTF-PF2-54.5 G(PF)2 60 15 10
    AD60 WTF-PF1 1/2-60 G(PF)1 1/2 48 15 10
    AD60 WTF-PF2-60 G(PF)2 60 15 10
