PRODUCT NAME

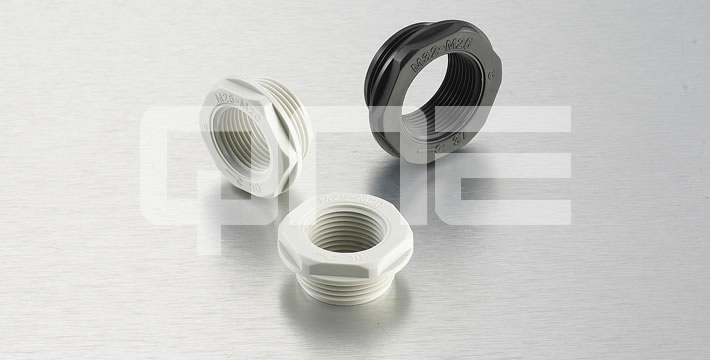

Nylon reducers
Material: UL-certified NYLON66, fire rating 94V-2.
Purpose: This product allows for the free conversion of different thread outer diameter sizes; customizable according to customer requirements to produce conversions between different thread lengths and other types of threads.
To allow switching between different thread outside diameter. For
example, from large metric external thread to small metric using. We
also can make as your request for this product.

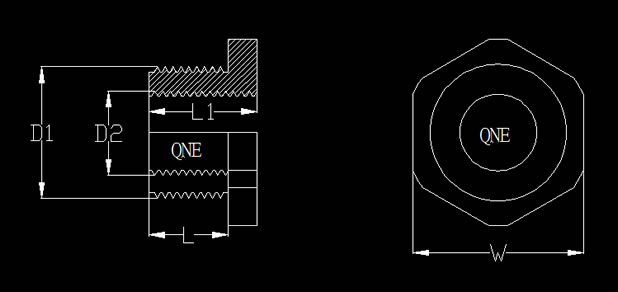

| Item. No. | D1 | D2 | L Thread length |
L1 Thread length |
W. across flats |
Pacing |
|---|---|---|---|---|---|---|
| NLBJH-M16-M12 | M16X1.5 | M12X1.5 | 8 | 12 | 22 | 100pcs |
| NLBJH-M20-M16 | M20X1.5 | M16X1.5 | 8 | 12 | 24.2 | 100pcs |
| NLBJH-M25-M20 | M25X1.5 | M20X1.5 | 10 | 15 | 29 | 100pcs |
| NLBJH-M32-M25 | M32X1.5 | M25X1.5 | 10 | 15 | 35.9 | 50pcs |
| NLBJH-M40-M32 | M40X1.5 | M32X1.5 | 10 | 15 | 45.8 | 25pcs |
| NLBJH-M50-M40 | M50X1.5 | M40X1.5 | 11.5 | 15 | 55 | 25pcs |
| NLBJH-M63-M50 | M63X1.5 | M50X1.5 | 11.5 | 16 | 67.5 | 25pcs |
