PRODUCT NAME

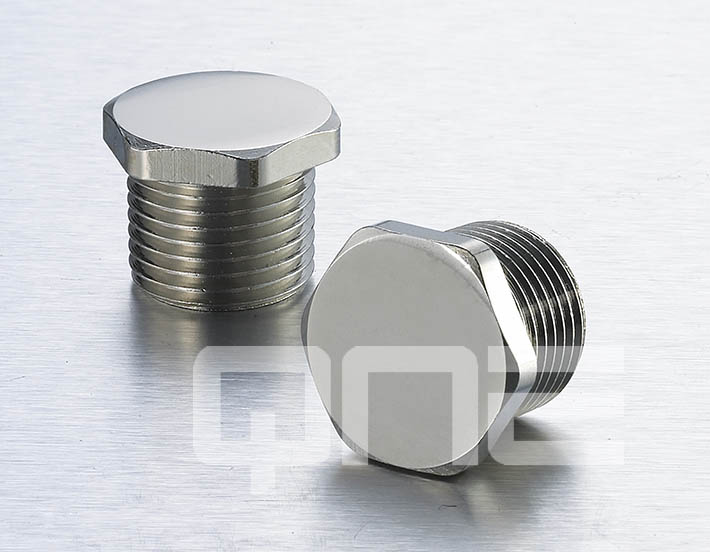

Hexagonal Shape Brass Screw Plugs
Material: Brass with nickel plated,EPDM Rubber
Protection degree: IP54, IP68
Working temperature: -40℃ to 100℃
Note: Special size and type, please contact us

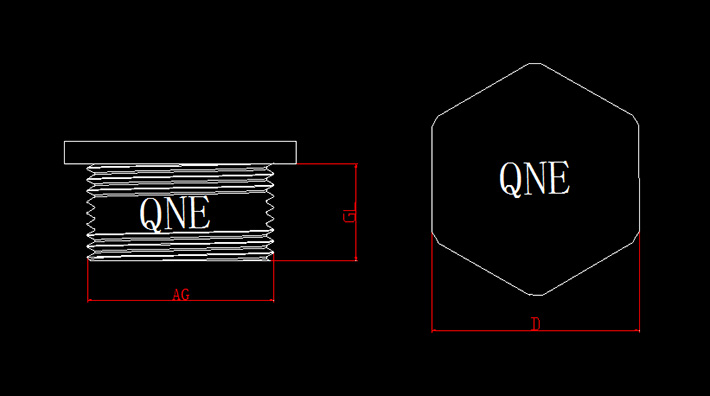

Type | AG mm | GL mm | D mm |
---|---|---|---|
QHBSP-PG7 | 12.5 | 5 | 14 |
QHBSP-PG9 | 15.2 | 6 | 17 |
QHBSP-PG11 | 18.6 | 6 | 20 |
QHBSP-PG13.5 | 20.4 | 6.5 | 22 |
QHBSP-PG16 | 22.5 | 6.5 | 24 |
QHBSP-PG21 | 28.3 | 7 | 30 |
QHBSP-PG29 | 37 | 8 | 39 |
QHBSP-PG36 | 47 | 9 | 50 |
QHBSP-PG42 | 54 | 10 | 57 |
QHBSP-PG48 | 59.3 | 10 | 64 |
QHBSP-M12 | 12 | 5 | 14 |
QHBSP-M16 | 16 | 6 | 17 |
QHBSP-M18 | 18 | 6 | 20 |
QHBSP-M20 | 20 | 6.5 | 22 |
QHBSP-M22 | 22 | 6.5 | 24 |
QHBSP-M25 | 25 | 6.5 | 27 |
QHBSP-M32 | 32 | 7 | 35 |
QHBSP-M40 | 40 | 8 | 43 |
QHBSP-M50 | 50 | 9 | 55 |
QHBSP-M63 | 63 | 10 | 66 |
