PRODUCT NAME
Plastic threadless sealing plug
product material: Product features: Made of PA material
Color types: black
Installation method:Insert the stopper directly into the hole, and then tighten the nut.
Scope of application: For use with QNE cable glands Colors are optional and easy to install

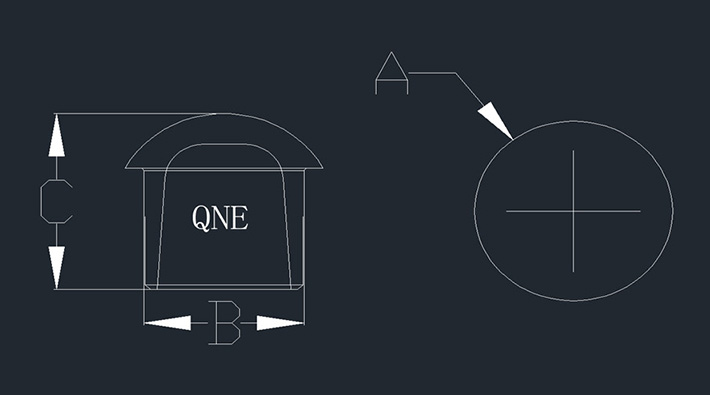

| Cat.No. |
O.D. | Length C | Std.Pkg. pcs |
|
|---|---|---|---|---|
| A | B | |||
| NPR-6 | 8 | 6 | 12.5 | 100 |
| NPR-8 | 10 | 8 | 13.5 | 100 |
| NPR-10 | 12.5 | 10 | 13.5 | 100 |
| NPR-12 | 15 | 12 | 14.5 | 100 |
| NPR-14 | 17 | 14 | 15 | 100 |
| NPR-16 | 20 | 16 | 15.5 | 100 |
| NPR-18 | 21 | 18 | 16 | 100 |
| NPR-25 | 28 | 25 | 21 | 100 |
| NPR-31 | 34 | 31 | 23 | 100 |
| NPR-41 | 45 | 41 | 26.5 | 100 |
| NPR-45 | 48 | 45 | 27.5 | 100 |
| NPR-51 | 55 | 51 | 29 | 100 |
