PRODUCT NAME
Hexagon socket screw-in plug
product material: Nylon plastic
Protection level: IP68 pressure
Operating temperature: -40°C to 100°C
Color type: Gray, black, other colors can be customized

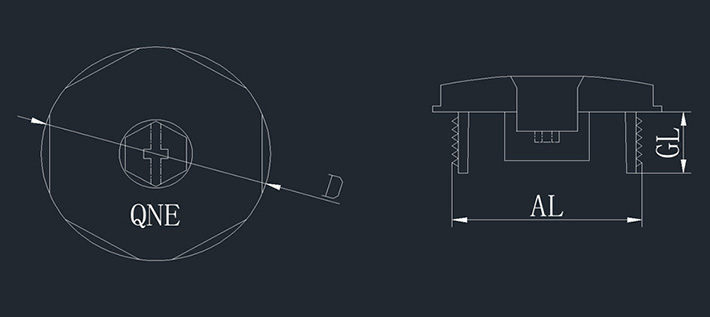

| Type | AG mm | GL mm | D mm |
|---|---|---|---|
| QNEFSP-M12×1.5 | 12 | 10 | 16 |
| QNEFSP-M16×1.5 | 16 | 10 | 20 |
| QNEFSP-M20×1.5 | 20 | 10 | 25 |
| QNEFSP-M25×1.5 | 25 | 11 | 30 |
| QNEFSP-M32×1.5 | 32 | 11 | 38 |
| QNEFSP-M40×1.5 | 40 | 11 | 46 |
| QNEFSP-M50×1.5 | 50 | 11 | 57 |
| QNEFSP-M63×1.5 | 63 | 11 | 70 |
| QNEFSP-NPT 3/8 | 16.6 | 10 | 22 |
| QNEFSP-NPT 1/2 | 20.9 | 10 | 26 |
| QNEFSP-NPT 3/4 | 26.4 | 11 | 32 |
| QNEFSP-NPT 1 | 33.2 | 11 | 39 |
| QNEFSP-NPT1 1/4 | 41.9 | 11 | 48 |
| QNEFSP-NPT1 1/2 | 48 | 11 | 53 |
| QNEFSP-NPT 2 | 60 | 11 | 65 |
| *Any screw cap can be customized* |
