    PRODUCT NAME

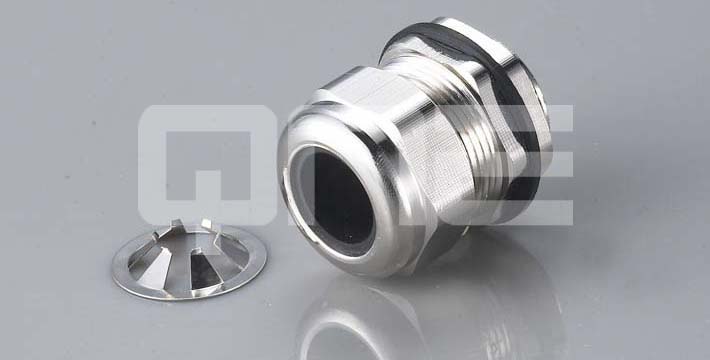

    EMC Metal BCG Cable Glands M, PG

    Thread: Metric, PG, G(PF), and NPT thread

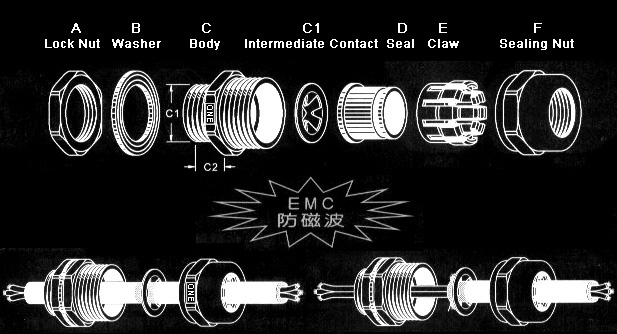

    Materials: Brass with nickel plated for A. C. C1. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts.
    Working temperature: -40℃ to 100℃
    Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
    Application: To transfer the effect of EMI.

    Seal Holes Thread Item. No. Cable
    Range Ф    		 Thread O.D.
    C1    		 Panel
    Mounting
    Hole    		 Thread
    Length C2(    		 Spanner
    Size
    A & F    		 Std.Pkg.
    pcs
    M12×1.5 EMC-MBA12-5.5 3-5.5 12 12~12.3 8 17/17 10
    M12×1.5 EMC-MBA12-7.8 4.5-8 12 12~12.3 8 17/17 10
    M12×1.5 EMC-MBA12L-5.5 3-5.5 12 12~12.3 15 17/17 10
    M12×1.5 EMC-MBA12L-7.8 4.5-8 12 12~12.3 15 17/17 10
    M16×1.5 EMC-MBA16S-5.5 3-5.5 16 16~16.3 8 18/18 10
    M16×1.5 EMC-MBA16S-7.8 4.5-8 16 16~16.3 8 18/18 10
    M16×1.5 EMC-MBA16SL-5.5 3-5.5 16 16~16.3 15 18/18 10
    M16×1.5 EMC-MBA16SL-7.8 4.5-8 16 16~16.3 15 18/18 10
    M16×1.5 EMC-MBA16-07 4-7 16 16~16.3 8 22/22 10
    M16×1.5 EMC-MBA16-10 6-10 16 16~16.3 8 22/22 10
    M16×1.5 EMC-MBA16L-7 4-7 16 16~16.3 15 22/22 10
    M16×1.5 EMC-MBA16L-10 6-10 16 16~16.3 15 22/22 10
    M18×1.5 EMC-MBA18-7 4-7 18 18~18.3 8 22/22 10
    M18×1.5 EMC-MBA18-10 6-10 18 18~18.3 8 22/22 10
    M18×1.5 EMC-MBA18L-7 4-7 18 18~18.3 15 22/22 10
    M18×1.5 EMC-MBA18L-10 6-10 18 18~18.3 15 22/22 10
    M20×1.5 EMC-MBA20M-08 5-8.8 20 20~20.3 9 24/24 10
    M20×1.5 EMC-MBA20M-11 7-12 20 20~20.3 9.5 24/24 10
    M20×1.5 EMC-MBA20S-8.8 4-8.8 20 20~20.3 9.5 24/24 10
    M20×1.5 EMC-MBA20S-12.5 7-12.5 20 20~20.3 9.5 24/24 10
    M20×1.5 EMC-MBA20SL-8.8 4-8.8 20 20~20.3 15 24/24 10
    M20×1.5 EMC-MBA20SL-12.5 7-12.5 20 20~20.3 15 24/24 10
    M20×1.5 EMC-MBA20-11 7-11 20 20~20.3 9.5 25/25 10
    M20×1.5 EMC-MBA20-14 9-14 20 20~20.3 9.5 25/25 10
    M20×1.5 EMC-MBA20L-11 7-11 20 20~20.3 15 25/25 10
    M20×1.5 EMC-MBA20L-14 9-14 20 20~20.3 15 25/25 10
    M22×1.5 EMC-MBA22-11 7-11 22 22~22.3 9.5 25/25 10
    M22×1.5 EMC-MBA22-14 9-14 22 22~22.3 9.5 25/25 10
    M22×1.5 EMC-MBA22L-11 7-11 22 22~22.3 15 25/25 10
    M22×1.5 EMC-MBA22L-14 9-14 22 22~22.3 15 25/25 10
    M24×1.5 EMC-MBA24-16 12-16 24 24~24.3 12 30/30 10
    M24×1.5 EMC-MBA24-18 14-18 24 24~24.3 12 30/30 10
    M24×1.5 EMC-MBA24L-16 12-16 24 24~24.3 15 30/30 10
    M24×1.5 EMC-MBA24L-18 14-18 24 24~24.3 15 30/30 10
    M25×1.5 EMC-MBA25S-11 7-11 25 25~25.4 12 25/25 10
    M25×1.5 EMC-MBA25S-14 9-14 25 25~25.4 12 25/25 10
    M25×1.5 EMC-MBA25SL-11 7-11 25 25~25.4 15 25/25 10
    M25×1.5 EMC-MBA25SL-14 9-14 25 25~25.4 15 25/25 10
    M25×1.5 EMC-MBA25-16 12-16 25 25~25.4 12 30/30 10
    M25×1.5 EMC-MBA25-18 14-18 25 25~25.4 12 30/30 10
    M25×1.5 EMC-MBA25L-16 12-16 25 25~25.4 15 30/30 10
    M25×1.5 EMC-MBA25L-18 14-18 25 25~25.4 15 30/30 10
    M32×1.5 EMC-MBA32-22 16-22 32 32~32.4 12.5 40/40 10
    M32×1.5 EMC-MBA32-25 18-25 32 32~32.4 12.5 40/40 10
    M32×1.5 EMC-MBA32L-22 16-22 32 32~32.4 15 40/40 10
    M32×1.5 EMC-MBA32L-25 18-25 32 32~32.4 15 40/40 10
    M40×1.5 EMC-MBA40-26 21-26 40 40~40.4 15 50/50 10
    M40×1.5 EMC-MBA40-31 24-31 40 40~40.4 15 50/50 10
    M40×1.5 EMC-MBA40L-26 21-26 40 40~40.4 20 50/50 10
    M40×1.5 EMC-MBA40L-31 24-31 40 40~40.4 20 50/50 10
    M50×1.5 EMC-MBA50-33 25-33 50 50~50.4 15 59/59 5
    M50×1.5 EMC-MBA50-41 31-41 50 50~50.4 15 59/59 5
    M50×1.5 EMC-MBA50L-33 25-33 50 50~50.4 22 59/59 5
    M50×1.5 EMC-MBA50L-41 31-41 50 50~50.4 22 59/59 5
    M63×1.5 EMC-MBA63-45 35-45 63 63~63.4 17 69/69 1
    M63×1.5 EMC-MBA63-46 38-46 63 63~63.4 15 73/73 2
    M63×1.5 EMC-MBA63-49 40-50 63 63~63.4 15 73/73 2
    M63×1.5 EMC-MBA63L-46 35-46 63 63~63.4 17 75/75 1
    M63×1.5 EMC-MBA63L-51 44-51 63 63~63.4 17 75/75 1
    PG 7 EMC-PBA7-5.5 3-5.5 12.5 12.5~12.8 8 17/17 10
    PG 7 EMC-PBA7-7.8 4.5-8 12.5 12.5~12.8 8 17/17 10
    PG 7 EMC-PBA7L-5.5 3-5.5 12.5 12.5~12.8 15 17/17 10
    PG 7 EMC-PBA7L-7.8 4.5-8 12.5 12.5~12.8 15 17/17 10
    PG 9 EMC-PBA9-5.5 3-5.5 15.2 15.2~15.5 8 18/18 10
    PG 9 EMC-PBA9-7.8 4.5-8 15.2 15.2~15.5 8 18/18 10
    PG 9 EMC-PBA9L-5.5 3-5.5 15.2 15.2~15.5 15 18/18 10
    PG 9 EMC-PBA9L-7.8 4.5-8 15.2 15.2~15.5 15 18/18 10
    PG 11 EMC-PBA11-07 4-7 18.6 18.6~18.9 9 22/22 10
    PG 11 EMC-PBA11-10 6-10 18.6 18.6~18.9 9 22/22 10
    PG 11 EMC-PBA11L-7 4-7 18.6 18.6~18.9 15 22/22 10
    PG 11 EMC-PBA11L-10 6-10 19.6 18.6~18.9 15 22/22 10
    PG 13.5 EMC-PBA13.5-8.8 4-8.8 20.4 20.4~20.7 9.5 24/24 10
    PG 13.5 EMC-PBA13.5-12.5 7-12.5 20.4 20.4~20.7 9.5 24/24 10
    PG 13.5 EMC-PBA13.5L-8.8 4-8.8 20.4 20.4~20.7 15 24/24 10
    PG 13.5 EMC-PBA13.5L-12.5 7-12.5 20.4 20.4~20.7 15 24/24 10
    PG 16 EMC-PBA16-11 7-11 22.5 22.5~22.8 9.5 25/25 10
    PG 16 EMC-PBA16-14 9-14 22.5 22.5~22.8 9.5 25/25 10
    PG 16 EMC-PBA16L-11 7-11 22.5 22.5~22.8 15 25/25 10
    PG 16 EMC-PBA16L-14 9-14 22.5 22.5~22.8 15 25/25 10
    PG 21 EMC-PBA21-16 12-16 28.3 28.3~28.7 12 30/30 10
    PG 21 EMC-PBA21-18 14-18 28.3 28.3~28.7 12 30/30 10
    PG 21 EMC-PBA21L-16 12-16 28.3 28.3~28.7 15 30/30 10
    PG 21 EMC-PBA21L-18 14-18 28.3 28.3~28.7 15 30/30 10
    PG 29 EMC-PBA29-22 16-22 37 37~37.4 12.5 40/40 10
    PG 29 EMC-PBA29 -25 18-25 37 37~37.4 12.5 40/40 10
    PG 29 EMC-PBA29L-22 16-22 37 37~37.4 15 40/40 10
    PG 29 EMC-PBA29L-25 18-25 37 37~37.4 15 40/40 10
    PG 36 EMC-PBA36-26 21-26 47 47~47.4 15 50/50 10
    PG 36 EMC-PBA36-31 24-31 47 47~47.4 15 50/50 10
    PG 42 EMC-PBA42-33 25-33 54 54~54.4 15 59/59 10
    PG 42 EMC-PBA42-41 31-41 54 54~54.4 15 59/59 10
    PG 48 EMC-PBA48-45 35-45 59.3 54~54.4 17 69/69 10
