PRODUCT NAME
Spiral 90°Elbow cable glands (Divided type)
Metric
PG
Thread: Metric, PG, G (PF), and NPT thread

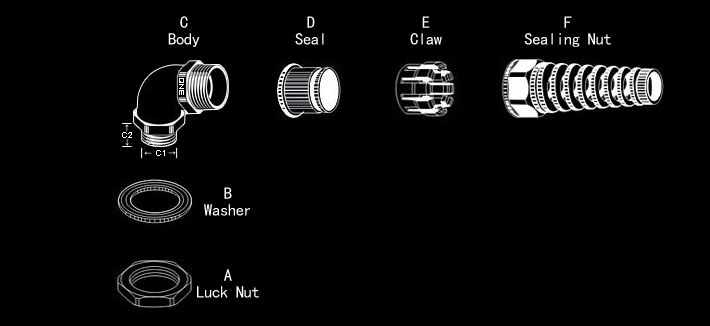

Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. E. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/ alkali, etc ).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency. Spiral and 90°design to protect cable from breakage.
Color: Black(RAL9005)、gray(RAL7035),other color available upon request.
| Thread | Item. No. | Cable Range |
Thread O. D. |
Thread Length |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|---|---|
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | (pcs) | ||
| M16×1.5 | SECG-M16A-7-ST | 4-7 | 16 | 10 | 22/22 | 10 |
| M16×1.5 | SECG-M16A-10-ST | 6-10 | 16 | 10 | 22/22 | 10 |
| M20×1.5 | SECG-M20A-11 | 6-11 | 20 | 15 | 27/27 | 10 |
| M20×1.5 | SECG-M20A-14 | 9-14 | 20 | 15 | 27/27 | 10 |
| M25×1.5 | SECG-M25A-16 | 10-16 | 25 | 15 | 33/33 | 10 |
| M25×1.5 | SECG-M25A-18 | 13-18 | 25 | 15 | 33/33 | 10 |
