PRODUCT NAME
Spiral Cable Glands (Divided type)
Thread: Metric, PG, G(PF), and NPT thread

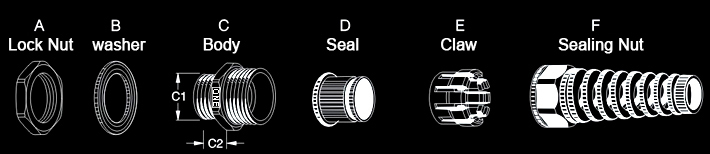

Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.
| Thread | Item. No. | Cable Range |
Thread O. D. |
Thread Length |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|---|---|
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | (pcs) | ||
| M12 x 1.5 | SCG-M12A -5.5 | 3-5.5 | 12 | 8.5 | 18/19 | 50 |
| M12 x 1.5 | SCG-M12A -8 | 4.5-8 | 12 | 8.5 | 18/19 | 50 |
| M16 x 1.5 | SCG-M16AS -5.5-ST | 3-5.5 | 16 | 10 | 22/19 | 50 |
| M16 x 1.5 | SCG-M16AS -8-ST | 4.5-8 | 16 | 10 | 22/19 | 50 |
| M16 x 1.5 | SCG-M16A -7-ST | 4-7 | 16 | 10 | 22/22 | 50 |
| M16 x 1.5 | SCG-M16A -10-ST | 6-10 | 16 | 10 | 22/22 | 50 |
| M16 x 1.5 | SCG-M16AL -7 | 4-7 | 16 | 15 | 22/22 | 50 |
| M16 x 1.5 | SCG-M16AL -10 | 6-10 | 16 | 15 | 22/22 | 50 |
| M20 x 1.5 | SCG-M20AM -7 | 6-7 | 20 | 15 | 27/22 | 20 |
| M20 x 1.5 | SCG-M20AM -10 | 9-10 | 20 | 15 | 27/22 | 20 |
| M20 x 1.5 | SCG-M20AS -9-ST | 5-9 | 20 | 10 | 27/24 | 20 |
| M20 x 1.5 | SCG-M20AS -12.5-ST | 6-12.5 | 20 | 10 | 27/24 | 20 |
| M20 x 1.5 | SCG-M20AS -11 | 4-8.8 | 20 | 10 | 27/24 | 20 |
| M20 x 1.5 | SCG-M20AS -14 | 7-12.5 | 20 | 10 | 27/24 | 20 |
| M20 x 1.5 | SCG-M20ASL -11 | 5-9 | 20 | 15 | 27/24 | 20 |
| M20 x 1.5 | SCG-M20ASL -14 | 6-12.5 | 20 | 15 | 27/24 | 20 |
| M20 x 1.5 | SCG-M20A -11-ST | 7-11 | 20 | 10 | 27/27 | 20 |
| M20 x 1.5 | SCG-M20A -14-ST | 9-14 | 20 | 10 | 27/27 | 20 |
| M20 x 1.5 | SCG-M20AL -11 | 7-11 | 20 | 15 | 27/27 | 20 |
| M20 x 1.5 | SCG-M20AL -14 | 9-14 | 20 | 15 | 27/27 | 20 |
| M20 x 1.5 | SCG-M20AZ-13 | 10-13 | 20 | 15 | 27/33 | 20 |
| M20 x 1.5 | SCG-M20AZ -16 | 13-16 | 20 | 15 | 27/33 | 20 |
| M22 x 1.5 | SCG-M22A -11-ST | 7-11 | 22 | 10 | 29/27 | 20 |
| M22 x 1.5 | SCG-M22A -14-ST | 9-14 | 22 | 10 | 29/27 | 20 |
| M25 x 1.5 | SCG-M25AS -11--ST | 6-11 | 25 | 10 | 33/27 | 20 |
| M25 x 1.5 | SCG-M25AS -14--ST | 9-14 | 25 | 10 | 33/27 | 20 |
| M25 x 1.5 | SCG-M25A -16-ST | 10-16 | 25 | 10 | 33/33 | 20 |
| M25 x 1.5 | SCG-M25A -18-ST | 13-18 | 25 | 10 | 33/33 | 20 |
| M25 x 1.5 | SCG-M25A -16 | 12-16 | 25 | 15 | 33/33 | 20 |
| M25 x 1.5 | SCG-M25A -18 | 14-18 | 25 | 15 | 33/33 | 20 |
| M25 x 1.5 | SCG-M25AL -16 | 10-16 | 25 | 15 | 33/33 | 20 |
| M25 x 1.5 | SCG-M25AL -18 | 13-18 | 25 | 15 | 33/33 | 20 |
| M32 x 1.5 | SCG-M32A -22 | 15-22 | 32 | 15 | 41/42 | 20 |
| M32 x 1.5 | SCG-M32A -25 | 18-25 | 32 | 15 | 41/42 | 20 |
| PG7 | SCG-PG7A -5.5 | 3-5.5 | 12.5 | 8 | 17/19 | 50 |
| PG7 | SCG-PG7A -8 | 4.5-8 | 12.5 | 8 | 17/19 | 50 |
| PG9 | SCG-PG9A -5.5 | 3-5.5 | 15.2 | 8.2 | 22/19 | 50 |
| PG9 | SCG-PG9A -8 | 4.5-8 | 15.2 | 8.2 | 22/19 | 50 |
| PG11 | SCG-PG11A -7 | 4-7 | 18.6 | 10 | 24/22 | 50 |
| PG11 | SCG-PG11A -10 | 6-10 | 18.6 | 10 | 24/22 | 50 |
| PG13.5 | SCG-PG13.5A-8.8 | 4-8.8 | 20.4 | 10 | 27/24 | 20 |
| PG13.5 | SCG-PG13.5A-12.5 | 7-12.5 | 20.4 | 10 | 27/24 | 20 |
| PG13.5 | SCG-PG13.5AZ-8.8 | 7-11 | 20.4 | 10 | 27/27 | 20 |
| PG13.5 | SCG-PG13.5AZ-11 | 6-11 | 20.4 | 10.8 | 27/27 | 20 |
| PG13.5 | SCG-PG13.5AZ-12.5 | 9-14 | 20.4 | 10 | 27/27 | 20 |
| PG13.5 | SCG-PG13.5AZ-14 | 9-14 | 20.4 | 10.8 | 27/27 | 20 |
| PG16 | SCG-PG16A -11 | 7-11 | 22.5 | 10.8 | 30/27 | 20 |
| PG16 | SCG-PG16A -14 | 9-14 | 22.5 | 10.8 | 30/27 | 20 |
| PG16 | SCG-PG16AZ-15 | 10-15 | 22.5 | 12 | 30/33 | 20 |
| PG16 | SCG-PG16AZ -17 | 13-17 | 22.5 | 12 | 30/33 | 20 |
| PG21 | SCG-PG21A -16 | 10-16 | 28.3 | 12 | 36/33 | 20 |
| PG21 | SCG-PG21A -18 | 13-18 | 28.3 | 12 | 36/33 | 20 |
| PG29 | SCG-PG29A -22 | 15-22 | 37 | 12 | 46/41 | 20 |
| PG29 | SCG-PG29A -24 | 18-25 | 37 | 12 | 46-41 | 20 |
| G 1/4 | SCG-G 1/4A -5 | 3-5.5 | 13.157 | 8.5 | 19/19 | 50 |
| G 1/4 | SCG-G 1/4A -8 | 4-8 | 13.157 | 8.5 | 19/19 | 50 |
| G 3/8 | SCG-G 3/8AL -7 | 4-7 | 16.662 | 15 | 22/22 | 50 |
| G 3/8 | SCG-G 3/8AL -10 | 6-10 | 16.662 | 15 | 22/22 | 50 |
| G 1/2 | SCG-G 1/2A -9 | 4-8.8 | 20.955 | 15 | 27/24 | 20 |
| G 1/2 | SCG-G 1/2A -12.5 | 7-12.5 | 20.955 | 15 | 27/24 | 20 |
| G 1/2 | SCG-G 1/2AL -11 | 6-11 | 20.955 | 15 | 27/24 | 20 |
| G 1/2 | SCG-G 1/2AL -14 | 9-14 | 20.955 | 15 | 27/24 | 20 |
| G 3/4 | SCG-G 3/4A -13 | 7-13 | 26.441 | 15 | 36/33 | 20 |
| G 3/4 | SCG-G 3/4A -17.5 | 12.5-18 | 26.441 | 15 | 36/33 | 20 |
| G 3/4 | SCG-G 3/4AL -16 | 10-16 | 26.441 | 15 | 36/33 | 20 |
| G 3/4 | SCG-G 3/4AL -18 | 13-18 | 26.441 | 15 | 36/33 | 20 |
| G 1 | SCG-G 1AL -22 | 15-22 | 33.249 | 15 | 46/14 | 20 |
| G 1 | SCG-G 1AL -24 | 18-25 | 33.249 | 15 | 46/14 | 20 |
