    PRODUCT NAME

    Nylon Cable Glands (Multi-hole & Flat-hole)



    Thread: Metric, PG, G(PF), and NPT thread

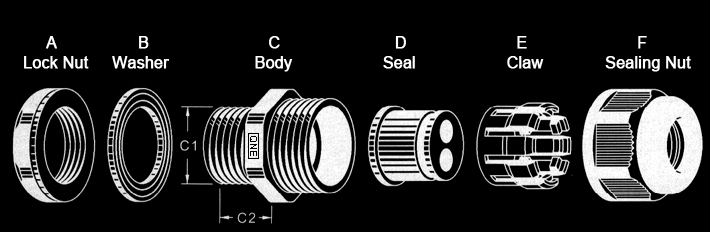

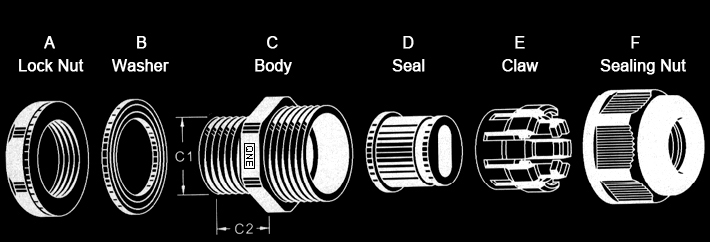

    Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. E. F parts; EPDM rubber for B. D parts.
    Protection degree: IP68
    Working temperature: -40℃ to 100℃
    Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
    Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.
    Seals: For cable outlet holes (several holes and flat), all the cables can not easily entangled and waterproof respectively.


    Seal
    Holes    		 Thread Cat No. Cable
    Range Ф    		 Thread 0.D.
    C1    		 Panel
    Mounting
    Hole    		 Cable
    Thread
    Length
    C2    		 Spanner
    Size
    A & F    		 Std.Pkg.
    pcs
    Black Gray
    M12×1.5 MG12A-H2-03B MG12A-H2-03GL 3~1.2 12 12~12.2 9 18/19 50
    M12×1.5 MG16A-H2-3.2B MG16A-H2-3.2GL 2.4-3.2 16 16~16.2 10 22/22 50
    M12×1.5 MG16A-H2-3.2B-ST MG16A-H2-3.2GL-ST 2.4-3.2 16 16~16.2 10 22/22 50
    M16×1.5 MG16A-H2-04B MG16A-H2-04GL 4~1.6 16 16~16.2 15 22/22 50
    M20×1.5 MG20A-H2-03B MG20A-H2-03GL 3.5~2 20 20~20.3 15 27/27 50
    M20×1.5 MG20A-H2-06B MG20A-H2-06GL 6~2.5 20 20~20.3 15 27/27 50
    M25×1.5 MG25A-H2-05B MG25A-H2-05GL 5~2 25 25~25.4 15 33/33 50
    M25×1.5 MG25A-H2-08B MG25A-H2-08GL 8.7~4.5 25 25~25.4 15 33/33 50
    M32×1.5 MG32A-H2-10B MG32A-H2-10GL 10~5 32 32~32.4 15 41/41 10
    M12×1.5 MG12A-H3-02B MG12A-H3-02GL 2.6~1.2 12 12~12.2 9 18/19 50
    M16×1.5 MG16A-H3-04B MG16A-H3-04GL 4~1.6 16 16~16.2 15 22/22 50
    M20×1.5 MG20A-H3-03B MG20A-H3-03GL 3.5~1.5 20 20~20.3 15 27/27 50
    M20×1.5 MG20A-H3-05B MG20A-H3-05GL 5~2 20 20~20.3 15 27/27 50
    M25×1.5 MG25A-H3-05B MG25A-H3-05GL 5~2 25 25~25.4 15 33/33 50
    M25×1.5 MG25A-H3-08B MG25A-H3-08GL 8~4 25 25~25.4 15 33/33 50
    M32×1.5 MG32A-H3-10B MG32A-H3-10GL 10~5 32 32~32.4 15 41/41 10
    M12×1.5 MG12A-H4-02B MG12A-H4-02GL 2.3~1 12 12~12.2 9 18/19 50
    M16×1.5 MG16A-H4-03B MG16A-H4-03GL 3~1.2 16 16~16.2 15 22/22 50
    M20×1.5 MG20A-H4-03B MG20A-H4-03GL 3.5~1.5 20 20~20.3 15 27/27 50
    M20×1.5 MG20A-H4-04B MG20A-H4-04GL 4.5~2 20 20~20.3 15 27/27 50
    M25×1.5 MG25A-H4-05B MG25A-H4-05GL 5~2 25 25~25.4 15 33/33 50
    M25×1.5 MG25A-H4-07B MG25A-H4-07GL 7~3.5 25 25~25.4 15 33/33 50
    M32×1.5 MG32A-H4-09B MG32A-H4-09GL 9~4.5 32 32~32.4 15 41/41 10
    M16×1.5 MG16A-H5-02B MG16A-H5-02GL 2.5~1 16 16~16.2 15 22/22 50
    M20×1.5 MG20A-H5-03B MG20A-H5-03GL 3~1.2 20 20~20.3 15 27/27 50
    M20×1.5 MG20A-H5-04B MG20A-H5-04GL 4.2~1.7 20 20~20.3 15 27/27 50
    M25×1.5 MG25A-H5-03B MG25A-H5-03GL 3.5~1.5 25 25~25.4 15 33/33 50
    M25×1.5 MG25A-H5-06B MG25A-H5-06GL 6~3 25 25~25.4 15 33/33 50
    M32×1.5 MG32A-H5-08B MG32A-H5-08GL 8~4 32 32~32.4 15 41/41 10
    M16×1.5 MG16A-H6-02B MG16A-H6-02GL 2~1 16 16~16.2 15 22/22 50
    M20×1.5 MG20A-H6-03B MG20A-H6-03GL 3~1.2 20 20~20.3 15 27/27 50
    M25×1.5 MG25A-H6-03B MG25A-H6-03GL 3.5~1.5 25 25~25.4 15 33/33 50
    M25×1.5 MG25A-H6-05B MG25A-H6-05GL 5.3~2.4 25 25~25.4 15 33/33 50
    M32×1.5 MG32A-H6-07B MG32A-H6-07GL 7~3.5 32 32~32.4 15 41/41 10
    M20×1.5 MG20A-H7-03B MG20A-H7-03GL 3~1.2 20 20~20.3 15 27/27 50
    M25×1.5 MG25A-H7-03B MG25A-H7-03GL 3.5~1.5 25 25~25.4 15 33/33 50
    M32×1.5 MG32A-H7-06B MG32A-H7-06GL 6~3 32 32~32.4 15 41/41 10
    M20×1.5 MG20A-H8-02B MG20A-H8-02GL 2.8~1 20 20~20.3 15 27/27 50
    M25×1.5 MG25A-H8-03B MG25A-H8-03GL 3.5~1.5 25 25~25.4 15 33/33 50
    M16×1.5 MG16A-0610B MG16A-0610GL 6~10 16 16~16.2 15 22/22 50
    M20×1.5 MG20A-0612B MG20A-0612GL 6.5~12 20 20~20.3 15 27/27 50
    M20×1.5 MG20A-0614B MG20A-0614GL 6~14 20 20~20.3 15 27/27 50
    M20×1.5 MG20A-0712B MG20A-0712GL 7~12 20 20~20.3 15 27/27 50
    M20×1.5 MG20A-0714B MG20A-0714GL 7~14 20 20~20.3 15 27/27 50
    M25×1.5 MG25A-0614B MG25A-0614GL 6~14 25 25~25.4 15 33/33 50
    M25×1.5 MG25A-0714B MG25A-0714GL 7~14 25 25~25.4 15 33/33 50
    M32×1.5 MG32A-0822B MG32A-0822GL 8~22 32 32~32.4 15 41/41 10
    M40×1.5 MG40A-1028B MG40A-1028GL 10~28.5 40 40~40.3 20 50/50 10
    M40×1.5 MG40A-0529B MG40A-0529GL 5.5~29 40 40~40.3 20 50/50 10
