    PRODUCT NAME

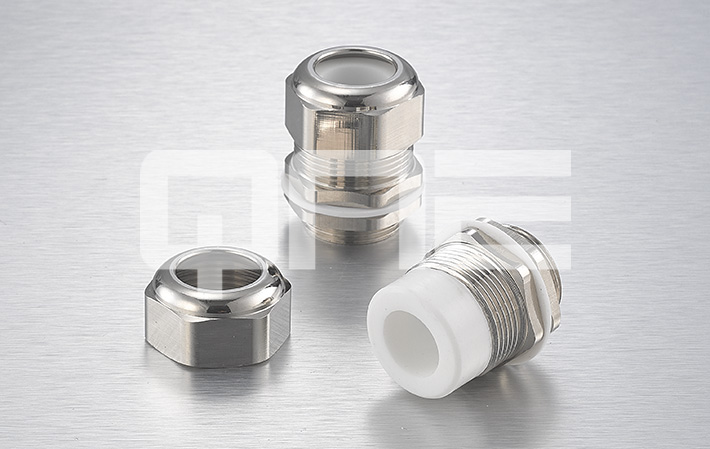

    High temperature BCG Brass cable glands

    Thread: Metric, PG, G(PF), and NPT thread

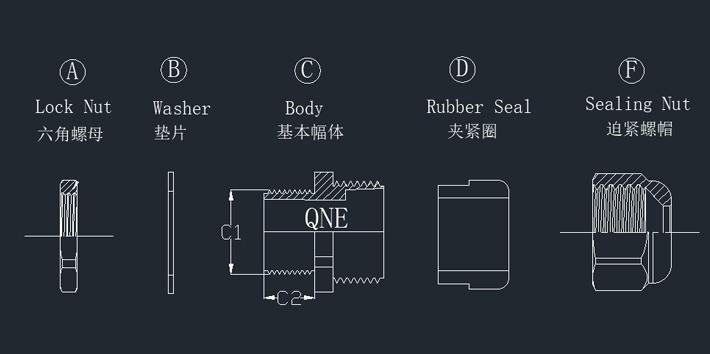

    Materials：Brass with nickel plated for A. C. F parts, special high temperature resistance rubber for B. D parts. (Accept to make super quality high temperature resistance rubber).

    Working temperature: -50℃ to 180℃;（-60℃至260℃ is available upon request）

    Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

    Thread Item.No. Cable Range
    (mm)    		 Thread O.D.
    (mm)    		 Thread Length
    (mm)    		 Spanner Size F&A
    (mm)    		 Std.Pkg
    (pcs)
    M6x1 HT-BCG-M6 -3.0 2-3.0 6 5 9/9 20
    M8x1.25 HT-BCG-M8 -5 3-4.8 8 5.57 11/11 20
    M10 x 1.5 HT-BCG-M10 -6.5 3-6.5 10 14/14 20
    M12x1.5 HT-BCG-M12S-6.5 3-6.5 12 7 14/14 20
    M12x1.5 HT-BCG-M12-5.5 3-5.5 12 8 18/18 10
    M12x1.5 HT-BCG-M12-7.8 4.5-8 12 8 18/18 10
    M12x1.5 HT-BCG-M12S-6-L 3-6.5 12 15 14/14 20
    M12x1.5 HT-BCG-M12-5.5-L 3-5.5 12 15 18/18 10
    M12x1.5 HT-BCG-M12-7.8-L 4.5-8 12 15 18/18 10
    M16 x 1.5 HT-BCG-M16S-5.5 3-5.5 16 8 18/18 10
    M16 x 1.5 HT-BCG-M16S-7.8 4.5-8 16 8 18/18 10
    M16 x 1.5 HT-BCG-M16-7 4-7 16 8 22/22 10
    M16 x 1.5 HT-BCG-M16-10 6-10 16 8 22/22 10
    M16 x 1.5 HT-BCG-M16S-5.5-L 3-5.5 16 15 18/18 10
    M16 x 1.5 HT-BCG-M16S-7.8-L 4.5-8 16 15 18/18 10
    M16 x 1.5 HT-BCG-M16-7-L 4-7 16 15 22/22 10
    M16 x 1.5 HT-BCG-M16-10-L 6-10 16 15 22/22 10
    M20 x 1.5 HT-BCG-M20S-8.8 4-8.8 20 9.5 24/24 10
    M20 x 1.5 HT-BCG-M20S-12.5 7-12.5 20 9.5 24/24 10
    M20 x 1.5 HT-BCG-M20-11 7-11 20 9.5 25/25 10
    M20 x 1.5 HT-BCG-M20-14 9-14 20 9.5 25/25 10
    M20 x 1.5 HT-BCG-M20S-8.8-L 4-8.8 20 15 24/24 10
    M20 x 1.5 HT-BCG-M20S-12.5-L 7-12.5 20 15 24/24 10
    M20 x 1.5 HT-BCG-M20-11-L 7-11 20 15 25/25 10
    M20 x 1.5 HT-BCG-M20-14-L 9-14 20 15 25/25 10
    M25 x 1.5 HT-BCG-M25S-11 7-11 25 12 25/25 10
    M25 x 1.5 HT-BCG-M25S-14 9-14 25 12 25/25 10
    M25 x 1.5 HT-BCG-M25-16 10-16 25 12 30/30 10
    M25 x 1.5 HT-BCG-M25-18 14-18 25 12 30/30 10
    M25 x 1.5 HT-BCG-M25S-11-L 7-11 25 15 25/25 10
    M25 x 1.5 HT-BCG-M25S-14-L 9-14 25 15 25/25 10
    M25 x 1.5 HT-BCG-M25-16-L 10-16 25 15 30/30 10
    M25 x 1.5 HT-BCG-M25-18-L 14-18 25 15 30/30 10
    M32x 1.5 HT-BCG-M32-22 16-22 32 12.5 40/40 10
    M32x 1.5 HT-BCG-M32-25 18-25 32 12.5 40/40 10
    M32x 1.5 HT-BCG-M32-22-L 16-22 32 15 40/40 10
    M32x 1.5 HT-BCG-M32-25-L 18-25 32 15 40/40 10
    M40x 1.5 HT-BCG-M40-26 21-26 40 15 50/50 10
    M40x 1.5 HT-BCG-M40-31 24-31 40 15 50/50 10
    M40x 1.5 HT-BCG-M40-26-L 21-26 40 20 50/50 10
    M40x 1.5 HT-BCG-M40-31-L 24-31 40 20 50/50 10
    M50x 1.5 HT-BCG-M50 -33 25-33 50 15 59/59 5
    M50x 1.5 HT-BCG-M50-41 31-41 50 15 59/59 5
    M50x 1.5 HT-BCG-M50-33-L 25-33 50 22 59/59 5
    M50x 1.5 HT-BCG-M50-41-L 31-41 50 22 59/59 5
    M63 x 1.5 HT-BCG-M63 -45 35-45 63 17 68/68 1
    M63 x 1.5 HT-BCG-M63L-46 39-46 63 17 75/75 1
    M63 x 1.5 HT-BCG-M63L-51 44-51 63 17 75/75 1
    M75 x 2 HT-BCG-M75 -56 50-56 75 22 93/93 1
    M75x2 HT-BCG-M75 -66 56-66 75 22 93/93 1
    M80 x 2 HT-BCG-M80 -56 50-56 80 22 93/93 1
    M80x2 HT-BCG-M80 -66 56-66 80 22 93/93 1
    M90x2 HT-BCG-M90 -68 58-68 90 24 110/110 1
    M90x2 HT-BCG-M90 -77 66-77 90 24 110/110 1
    M100 x 2 HT-BCG-M100 -68 58-68 100 24 110/110 1
    M100x2 HT-BCG-M100 -77 66-77 100 24 110/110 1
    PG7 HT-BCG-PG7S-6.5 3-6.5 12.5 7 14/14 20
    PG7 HT-BCG-PG7-5.5 3-5.5 12.5 8 18/18 10
    PG7 HT-BCG-PG7-7.8 4.5-8 12.5 8 18/18 10
    PG7 HT-BCG-PG7S-5.5-L 3-6.5 12.5 15 14/14 20
    PG7 HT-BCG-PG7-5.5-L 3-5.5 12.5 15 18/18 10
    PG7 HT-BCG-PG7-7.8-L 4.5-8 12.5 15 18/18 10
    PG9 HT-BCG-PG9 -5.5 3-5.5 15.2 8 18/18 10
    PG9 HT-BCG-PG9-7.8 4.5-8 15.2 8 18/18 10
    PG9 HT-BCG-PG9-5.5-L 3-5.5 15.2 15 18/18 10
    PG9 HT-BCG-PG9-7.8-L 4.5-8 15.2 15 18/18 10
    PG11 HT-BCG-PG11-7 4-7 18.6 9 22/22 10
    PG11 HT-BCG-PG11-10 6-10 18.6 9 22/22 10
    PG11 HT-BCG-PG11-7-L 4-7 18.6 15 22/22 10
    PG11 HT-BCG-PG11-10-L 6-10 18.6 15 22/22 10
    PG13.5 HT-BCG-PG13.5-8.8 4-8.8 20.4 9.5 24/24 10
    PG13.5 HT-BCG-PG13.5-12.5 7-12.5 20.4 9.5 24/24 10
    PG13.5 HT-BCG-PG13.5-8.8-L 4-8.8 20.4 15 24/24 10
    PG13.5 HT-BCG-PG13.5-12.5-L 7-12.5 20.4 15 24/24 10
    PG16 HT-BCG-PG16-11 46214 22.5 9.5 25/25 10
    PG16 HT-BCG-PG16-14 46279 22.5 9.5 25/25 10
    PG16 HT-BCG-PG16-11-L 46214 22.5 15 25/25 10
    PG16 HT-BCG-PG16-14-L 46279 22.5 15 25/25 10
    PG21 HT-BCG-PG21-16 10-16 28.3 12 30/30 10
    PG21 HT-BCG-PG21-18 14-18 28.3 12 30/30 10
    PG21 HT-BCG-PG21-16-L 10-16 28.3 15 30/30 10
    PG21 HT-BCG-PG21-18-L 14-18 28.3 15 30/30 10
    PG29 HT-BCG-PG29-22 16-22 37 12.5 40/40 10
    PG29 HT-BCG-PG29-25 18-25 37 12.5 40/40 10
    PG29 HT-BCG-PG29-22-L 16-22 37 15 40/40 10
    PG29 HT-BCG-PG29-25-L 18-25 37 15 40/40 10
    PG36 HT-BCG-PG36-26 21-26 47 15 50/50 10
    PG36 HT-BCG-PG36-31 24-31 47 15 50/50 10
    PG42 HT-BCG-PG42-33 25-33 54 15 59/59 10
    PG42 HT-BCG-PG42-41 31-41 54 15 59/59 10
    PG48 HT-BCG-PG48-45 35-45 59.3 17 68/68 5
    G（PF）1/4 HT-BCG-PF 1/4 -5.5 3-5.5 13.1 8 17/17 10
    G（PF）1/4 HT-BCG-PF1/4 -7.8 4.5-8 13.1 8 17/17 10
    G（PF）3/8 HT-BCG-PF 3/8-7 4-7 16.6 9 22/22 10
    G（PF）3/8 HT-BCG-PF3/8-10 6-10 16.6 9 22/22 10
    G（PF）1/2 HT-BCG-PF 1/2-8.8 4-8.8 20.9 9.5 24/24 10
    G（PF）1/2 HT-BCG-PF1/2-12.5 7-12.5 20.9 9.5 24/24 10
    G（PF）1/2 HT-BCG-PF1/2-11 7-11 20.9 9.5 25/25 10
    G（PF）1/2 HT-BCG-PF1/2-14 9-14 20.9 9.5 25/25 10
    G（PF）3/4 HT-BCG-PF 3/4-16 10-16 26.4 12 30/30 10
    G（PF）3/4 HT-BCG-PF3/4-18 14-18 26.4 12 30/30 10
    G（PF）1 HT-BCG-PF 1-22 16-22 33.2 12.5 40/40 10
    G（PF）1 HT-BCG-PF1-25 18-25 33.2 12.5 40/40 10
    G（PF）1 1/4 HT-BCG-PF1 1/4-26 21-26 41.9 15 50/50 10
    G（PF）1 1/4 HT-BCG-PF11/4-31 24-31 41.9 15 50/50 10
    G（PF）11/2 HT-BCG-PF1 1/2-33 25-33 48 15 59/59 10
    G（PF）11/2 HT-BCG-PF11/2-41 31-41 48 15 59/59 10
    G（PF）2 HT-BCG-PF 2-45 35-45 60 68/68 5
    NPT1/4 HT-BCG-NPT 1/4 -5.5 3-5.5 13.1 8 17 10
    NPT1/4 HT-BCG-NPT1/4 -7.8 4.5-8 13.1 8 17 10
    NPT3/8 HT-BCG-NPT 3/8-7 4-7 16.6 9 22 10
    NPT3/8 HT-BCG-NPT3/8-10 6-10 16.6 9 22 10
    NPT1/2 HT-BCG-NPT 1/2-8.8 4-8.8 20.9 9.5 24 10
    NPT1/2 HT-BCG-NPT1/2-12.5 7-12.5 20.9 9.5 24 10
    NPT1/2 HT-BCG-NPT1/2-11 7-11 20.9 9.5 25 10
    NPT1/2 HT-BCG-NPT1/2-14 9-14 20.9 9.5 25 10
    NPT3/4 HT-BCG-NPT 3/4-16 10-16 26.4 12 30 10
    NPT3/4 HT-BCG-NPT3/4-18 14-18 26.4 12 30 10
    NPT1 HT-BCG-NPT 1-22 16-22 33.2 12.5 40 10
    NPT1 HT-BCG-NPT1-25 18-25 33.2 12.5 40 10
    NPT1 1/4 HT-BCG-NPT 1 1/4-26 21-26 41.9 15 50 10
    NPT1 1/4 HT-BCG-NPT1 1/4-31 24-31 41.9 15 50 10
    NPT1 1/2 HT-BCG-NPT 1 1/2-33 25-33 48 15 59 10
    NPT1 1/2 HT-BCG-NPT1 1/2-41 31-41 48 15 59 10
    NPT 2
