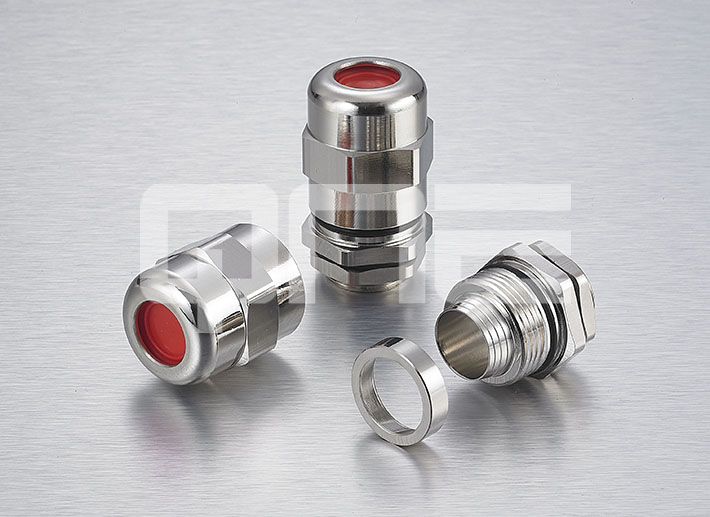

Explosion Proof Metal Cable Glands
Thread: Metric, G (PF), and NPT thread.
Materials: Brass with nickel plated and silicon rubber.
Working temperature: -40℃ to 200℃.
Ex-marking: Ex eb ⅡC Gb；Ex tb ⅢC Db.
Applications: Widely used in hazardous area，connecting to explosion-proof electric equipment, especially in the installation of automation engineering circuit.
| Item. No. | Cable Range (mm) | Thread | Thread O.D.AG(mm) | Thread Length GL(mm) | Std.Pkg (pcs) |
|---|---|---|---|---|---|
| EX-BCG-M20-14 | 9-14 | M20 x 1.5 | 20 | 9.5 | 10 |
| EX-BCG-M25-18 | 13-18 | M25 x 1.5 | 25 | 12 | 10 |
| EX-BCG-M32-25 | 18-25 | M32 x 1.5 | 32 | 12.5 | 10 |
| EX-BCG-M40-31 | 24-31 | M40 x 1.5 | 40 | 15 | 10 |
