PRODUCT NAME

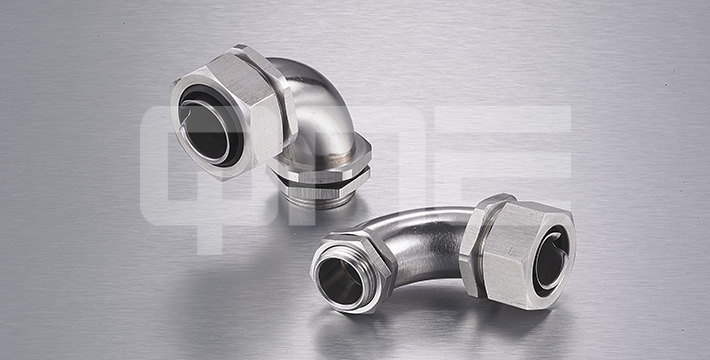

90°Elbow Stainless Steel Flexible Conduit Fitting
• Thread: Metric, PG, G(PF), and NPT thread
• Materials: 304 Stainless Steel for lock nut, body, ferrule and sealing nut; EPDM rubber for washer and rubber ring.
• Protection degree: IP66
• Working temperature: -40℃ to 100℃
• Application: Connecting metal flexible conduits to protect cables and waterproof
| Item.No. | Adapt to metal hose(mm) | Adapt to metal hose(Inch) | Thread |
|---|---|---|---|
| DPSS-Ф10-M16 | Ф10 | 1/4 | M16×1.5 |
| DPSS-Ф13-M16 | Ф13 | 3/8 | M16×1.5 |
| DPSS-Ф13-M20 | Ф13 | 3/8 | M20×1.5 |
| DPSS-Ф16-M18 | Ф16 | 1/2 | M18×1.5 |
| DPSS-Ф16-M20 | Ф16 | 1/2 | M20×1.5 |
| DPSS-Ф16-M24 | Ф16 | 1/2 | M24×1.5 |
| DPSS-Ф20-M20 | Ф20 | 3/4 | M20×1.5 |
| DPSS-Ф20-M25 | Ф20 | 3/4 | M25×1.5 |
| DPSS-Ф20-M27 | Ф20 | 3/4 | M27×2.0 |
| DPSS-Ф20-M30 | Ф20 | 3/4 | M30×2.0 |
| DPSS-Ф25-M25 | Ф25 | 1 | M25×1.5 |
| DPSS-Ф25-M32 | Ф25 | 1 | M32×1.5 |
| DPSS-Ф25-M33 | Ф25 | 1 | M33×2.0 |
| DPSS-Ф25-M36 | Ф25 | 1 | M36×2.0 |
| DPSS-Ф32-M40 | Ф32 | 1-1/4 | M40×1.5 |
| DPSS-Ф32-M42 | Ф32 | 1-1/4 | M42×2.0 |
| DPSS-Ф32-M48 | Ф32 | 1-1/4 | M48×2.0 |
| DPSS-Ф38-M40 | Ф38 | 1-1/2 | M40×1.5 |
| DPSS-Ф38-M48 | Ф38 | 1-1/2 | M48×2.0 |
| DPSS-Ф38-M50 | Ф38 | 1-1/2 | M50×1.5 |
| DPSS-Ф51-M50 | Ф51 | 2 | M50×1.5 |
| DPSS-Ф51-M60 | Ф51 | 2 | M60×2.0 |
| DPSS-Ф51-M63 | Ф51 | 2 | M63×1.5 |
| DPSS-Ф10-PG9 | Ф10 | 1/4 | PG9 |
| DPSS-Ф13-PG11 | Ф13 | 3/8 | PG11 |
| DPSS-Ф13-PG13.5 | Ф13 | 3/8 | PG13.5 |
| DPSS-Ф16-PG13.5 | Ф16 | 1/2 | PG13.5 |
| DPSS-Ф16-PG16 | Ф16 | 1/2 | PG16 |
| DPSS-Ф20-PG21 | Ф20 | 3/4 | PG21 |
| DPSS-Ф25-PG29 | Ф25 | 1 | PG29 |
| DPSS-Ф32-PG29 | Ф32 | 1-1/4 | PG29 |
| DPSS-Ф38-PG36 | Ф38 | 1-1/2 | PG36 |
| DPSS-Ф38-PG42 | Ф38 | 1-1/2 | PG42 |
| DPSS-Ф51-PG48 | Ф51 | 2 | PG48 |
| DPSS-Ф10-G1/4 | Ф10 | 1/4 | G1/4 |
| DPSS-Ф13-G3/8 | Ф13 | 3/8 | G3/8 |
| DPSS-Ф16-G1/2 | Ф16 | 1/2 | G1/2 |
| DPSS-Ф20-G3/4 | Ф20 | 3/4 | G3/4 |
| DPSS-Ф25-G1 | Ф25 | 1 | G1 |
| DPSS-Ф32-G1-1/4 | Ф32 | 1-1/4 | G1-1/4 |
| DPSS-Ф38-G1-1/2 | Ф38 | 1-1/2 | G1-1/2 |
| DPSS-Ф51-G2 | Ф51 | 2 | G2 |
| DPSS-Ф10-NPT1/4 | Ф10 | 1/4 | NPT1/4 |
| DPSS-Ф13-NPT3/8 | Ф13 | 3/8 | NPT3/8 |
| DPSS-Ф16-NPT1/2 | Ф16 | 1/2 | NPT1/2 |
| DPSS-Ф20-NPT3/4 | Ф20 | 3/4 | NPT3/4 |
| DPSS-Ф25-NPT1 | Ф25 | 1 | NPT1 |
| DPSS-Ф32-NPT1-1/4 | Ф32 | 1-1/4 | NPT1-1/4 |
| DPSS-Ф38-G1-1/2 | Ф38 | 1-1/2 | NPT1-1/2 |
| DPSS-Ф51-NPT2 | Ф51 | 2 | NPT2 |
