    Nylon Cable Glands (Divided Type)

    Metric

    PG

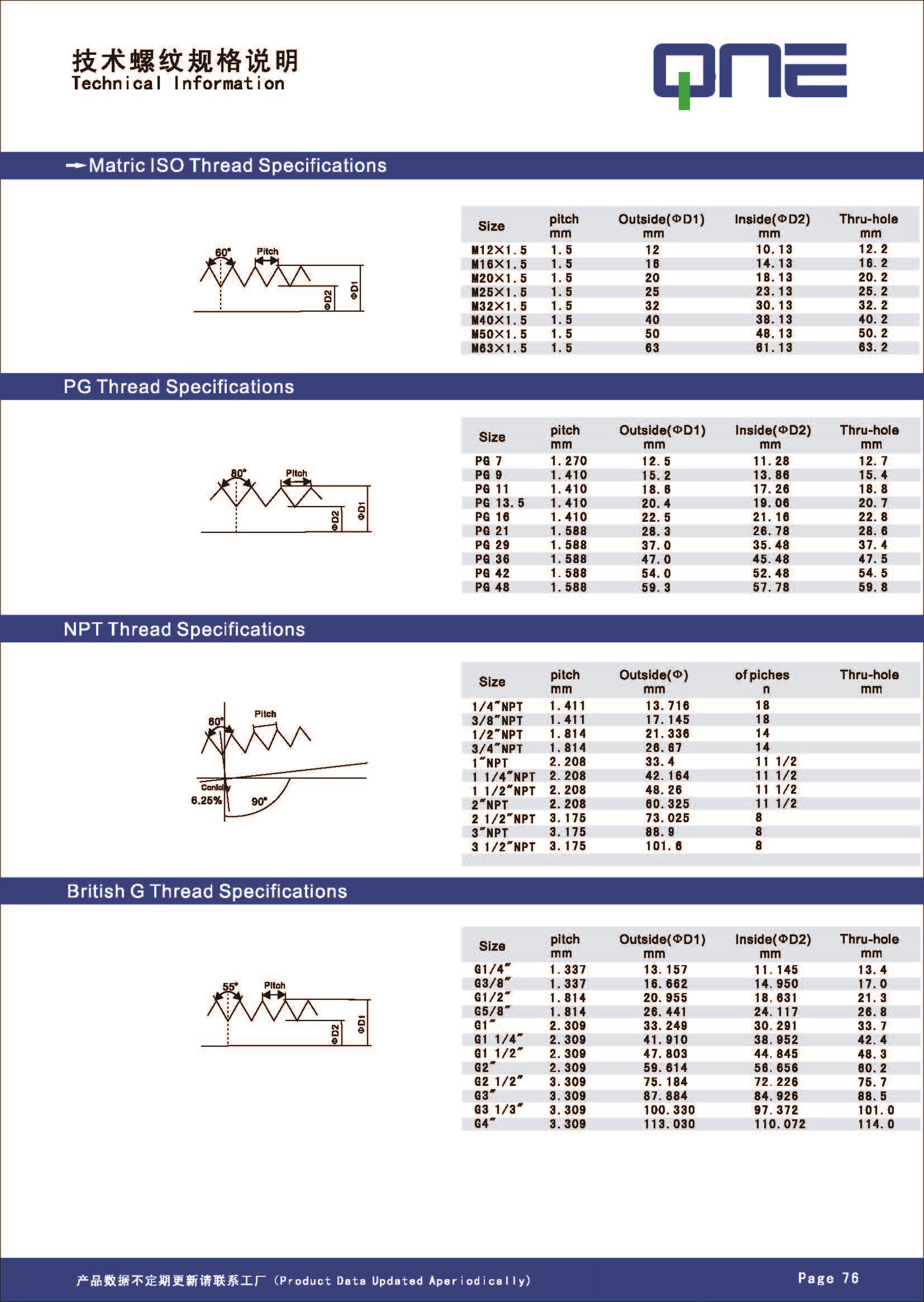

    Thread: Metric, PG, G(PF), and NPT thread

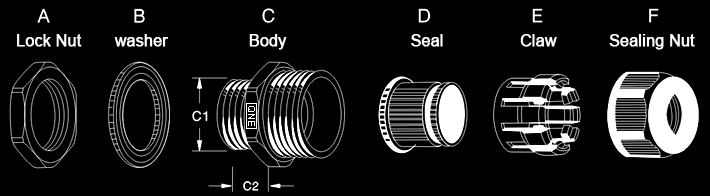

    Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. E. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
    Protection degree: IP68
    Working temperature: -40℃ to 100℃
    Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
    Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.

    Thread Item. No. Cable
    Range    		 Thread
    O. D.    		 Thread
    Length    		 Spanner
    Size    		 Std. Pkg
    Ф(mm) C1(mm) C2(mm) A&F(mm) (pcs)
    M12 x 1.5 NCG-M12A -5.5 3-5.5 12 8.5 18/19 50
    M12 x 1.5 NCG-M12A -8 4.5-7.8 12 8.5 18/19 50
    M16 x 1.5 NCG-M16AS -5.5-ST 3-5.5 16 10 22/19 50
    M16 x 1.5 NCG-M16AS -8-ST 4-8 16 10 22/19 50
    M16 x 1.5 NCG-M16AS -5.5 3-5.5 16 15 22/19 50
    M16 x 1.5 NCG-M16AS -8 4-8 16 15 22/19 50
    M16 x 1.5 NCG-M16A -7-ST 4-7 16 10 22/22 50
    M16 x 1.5 NCG-M16A -10-ST 6-10 16 10 22/22 50
    M16 x 1.5 NCG-M16A-11 6-11 16 10 22/22 50
    M16 x 1.5 NCG-M16AL -7 4-7 16 15 22/22 50
    M16 x 1.5 NCG-M16AL -10 6-10 16 15 22/22 50
    M20 x 1.5 NCG-M20AS -9-ST 5-9 20 10 24/24 50
    M20 x 1.5 NCG-M20AS -12.5-ST 6-12.5 20 10 24/24 50
    M20 x 1.5 NCG-M20A -11-ST 6-11 20 10 27/27 50
    M20 x 1.5 NCG-M20A -14-ST 9-14 20 10 27/27 50
    M20 x 1.5 NCG-M20AL -11 6-11 20 15 27/27 50
    M20 x 1.5 NCG-M20AL -14 9-14 20 15 27/27 50
    M22 x 1.5 NCG-M22A -11-ST 6-11 20 10 27/27 50
    M22 x 1.5 NCG-M22A -14-ST 9-14 20 10 27/27 50
    M22 x 1.5 NCG-M22A -11 6-11 20 15 27/27 50
    M22 x 1.5 NCG-M22A -14 9-14 20 15 27/27 50
    M25 x 1.5 NCG-M25AS -11--ST 6-11 25 10 33/27 50
    M25 x 1.5 NCG-M25AS -14--ST 9-14 25 10 33/27 50
    M25 x 1.5 NCG-M25A -16-ST 10-16 25 10 33/33 50
    M25 x 1.5 NCG-M25A -18-ST 13-18 25 10 33/33 50
    M25 x 1.5 NCG-M25AL -16 10-16 25 15 33/33 50
    M25 x 1.5 NCG-M25AL -18 13-18 25 15 33/33 50
    M32 x 1.5 NCG-M32A -22 15-22 32 15 41/42 20
    M32 x 1.5 NCG-M32A -25 18-25 32 15 41/42 20
    M40 x 1.5 NCG-M40A -26 20-26 40 20 50/52 10
    M40 x 1.5 NCG-M40A -31 24-31 40 20 50/52 10
    M50 x 1.5 NCG-M50A -33 25-33 50 22 62/62 10
    M50 x 1.5 NCG-M50A -41 31-41 50 22 62/62 10
    M63 x 1.5 NCG-M63A -46 39-46 63 25 75/75 10
    M63 x 1.5 NCG-M63A -51 44-51 63 25 75/75 10
    M75 x 2.0 NCG-M75A -60 50-60 75 25 92/92 1
    M75 x 2.0 NCG-M75A -66 56-66 75 25 92/92 1
    M90 x 2.0 NCG-M90A -68 58-68 90 25 110/110 1
    M90 x 2.0 NCG-M90A -77 66-77 90 25 110/110 1
    PG7 NCG-PG7A -5.5 3-5.5 12.5 8 17/19 50
    PG7 NCG-PG7A -8 4.5-7.8 12.5 8 17/19 50
    PG9 NCG-PG9A -5.5 3-5.5 15.2 8.2 22/19 50
    PG9 NCG-PG9A -8 4.5-7.8 15.2 8.2 22/19 50
    PG11 NCG-PG11A -7 4-7 18.6 10 24/22 50
    PG11 NCG-PG11A -10 6-10 18.6 10 24/22 50
    PG13.5 NCG-PG13.5A-8.8 5-8.8 20.4 10 27/24 50
    PG13.5 NCG-PG13.5A-12.5 7-12.5 20.4 10 27/24 50
    PG13.5 NCG-PG13.5AZ -11 6-11 20.4 10.8 27/27 50
    PG13.5 NCG-PG13.5AZ -14 9-14 20.4 10.8 27/27 50
    PG16 NCG-PG16A -11 6-11 22.5 10.8 30/27 50
    PG16 NCG-PG16A -14 9-14 22.5 10.8 30/27 50
    PG16 NCG-PG16AZ -15 10-15 22.5 12 30/33 50
    PG16 NCG-PG16AZ -17 13-17 22.5 12 30/33 50
    PG21 NCG-PG21A -16 10-16 28.3 12 36/33 50
    PG21 NCG-PG21A -18 13-18 28.3 12 36/33 50
    PG29 NCG-PG29A -22 15-22 37 12 46/41 20
    PG29 NCG-PG29A -24 18-25 37 12 46/41 20
    PG36 NCG-PG36A -26 20-26 47 14 57/52 10
    PG36 NCG-PG36A -31 24-31 47 14 57/52 10
    PG42 NCG-PG42A -33 25-33 54 15 64/62 10
    PG42 NCG-PG42A -41 31-41 54 15 64/62 10
    G 1/4 NCG-G 1/4A -5 3-5.5 13.157 8.5 19/19 50
    G 1/4 NCG-G 1/4A -8 5-7.8 13.157 8.5 19/19 50
    G 3/8 NCG-G 3/8AL -7 4-7 16.662 10 22/22 50
    G 3/8 NCG-G 3/8AL -10 6-10 16.662 10 22/22 50
    G 1/2 NCG-G 1/2A -9 5-8.8 20.955 10 27/24 50
    G 1/2 NCG-G 1/2A -12.5 7-12.5 20.955 10 27/24 50
    G 1/2 NCG-G 1/2AL -11 6-11 20.955 15 27/24 50
    G 1/2 NCG-G 1/2AL -14 9-14 20.955 15 27/24 50
    G 3/4 NCG-G 3/4AL -13 7-13 26.441 12 36/33 50
    G 3/4 NCG-G 3/4AL -17.5 12.5-18 26.441 12 36/33 50
    G 3/4 NCG-G 3/4AL -16 10-16 26.441 15 36/33 50
    G 3/4 NCG-G 3/4AL -18 13-18 26.441 15 36/33 50
    G 1 NCG-G 1AL -22 15-22 33.249 15 46/41 20
    G 1 NCG-G 1AL -24 17-25 33.249 15 46/41 20
    G 1 1/4 NCG-G 1 1/4AL -25.5 17-25.5 41.91 16 57/52 10
    G 1 1/4 NCG-G 1 1/4AL -31 24-32 41.91 15 57/52 10
    G 1 1/2 NCG-G 1 1/2AL -33 25-33 48 22 60/62 10
    G 1 1/2 NCG-G 1 1/2AL -41 31-41 48 22 60/62 10
    G 2 NCG-G 2AL -46 39-46 60 26 72/65 10
    G 2 NCG-G 2AL -51 44-51 60 26 72/65 10
