PRODUCT NAME

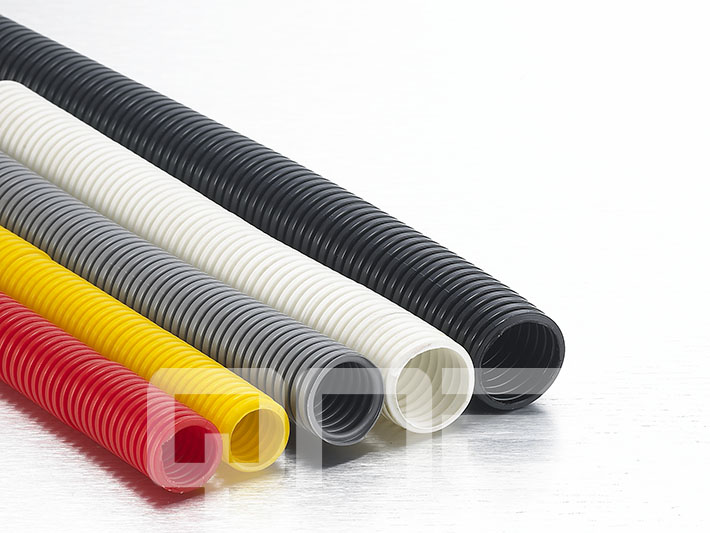

Plastic Flexible Pipes
Polyamide Flexible Pipe
Material: Nylon PA6
Working temperature: -40℃ to 125℃, 140℃ can be reached but kept only for a short time
Style: Close and split
Colour: Black, other color available upon request.
Property: Good flexibility, twist resistance and good bending performance, able to bear heavy loads; acid resistant, lubricant resistant and coolant resistant; luster on surface and abrasion resistant.
Load bearing capacity: able to bear the heavy pressure from treading of feet without cracking or deformation. It can promptly recoil with no damages.
Application: Machinery building, electrical insulating protection, illuminating equipment, automobile manufacturing, flight equipments, metro, trains and automatic control, etc.

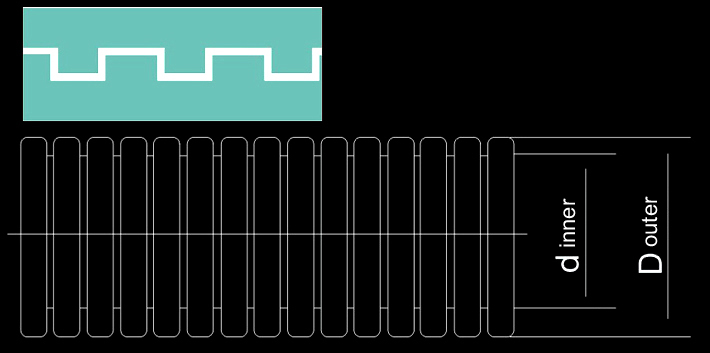

| Specification(AD) | Item. No. | Inner diameter x Outer diameter (mm) |
Curved radius (mm) |
Std. Pkg(m) |
|---|---|---|---|---|
| AD10.0 | FP-PA-10.0 | 6.5 x 10.0 | 16 | 100 |
| AD11.6 | FP-PA-11.6 | 8.0 x 11.6 | 16 | 100 |
| AD13.0 | FP-PA-13.0 | 10.0 x 13.0 | 20 | 100 |
| AD15.8 | FP-PA-15.8 | 12.0 x 15.8 | 30 | 100 |
| AD18.5 | FP-PA-18.5 | 14.3 x 18.5 | 40 | 100 |
| AD21.2 | FP-PA-21.2 | 17.0 x 21.2 | 45 | 100 |
| AD25.0 | FP-PA-25.0 | 20.0 x 25.0 | 45 | 50 |
| AD28.5 | FP-PA-28.5 | 23.0 x 28.5 | 50 | 50 |
| AD34.5 | FP-PA-34.5 | 29.0 x 34.5 | 60 | 50 |
| AD42.5 | FP-PA-42.5 | 36.0 x 42.5 | 70 | 50 |
| AD54.5 | FP-PA-54.5 | 48.0 x 54.5 | 90 | 25 |
Flame retardant Polyamide Flexible Pipe
Material: Nylon PA6 (flammability V-0)
Working temperature: -40℃ to 125℃, 140℃ can be reached but kept only for a short time
Style: Close and split
Colour: Black, other color available upon request.
Property: Good flexibility, twist resistance and good bending performance, able to bear heavy loads; acid resistant, lubricant resistant and coolant resistant; luster on surface and abrasion resistant.
Load bearing capacity: able to bear the heavy pressure from treading of feet without cracking or deformation. It can promptly recoil with no damages.
Application: Machinery building, electrical insulating protection, illuminating equipment, automobile manufacturing, flight equipments, metro, trains and automatic control, etc.

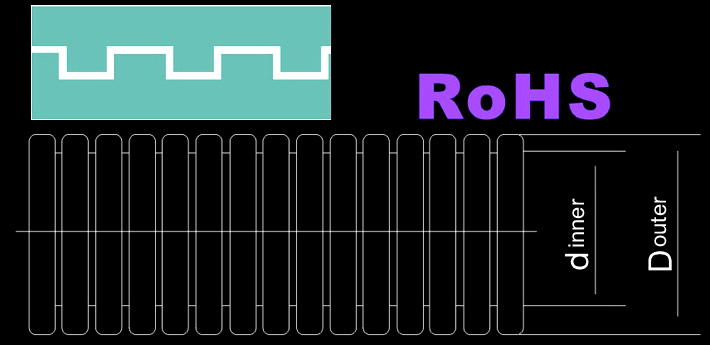

| Specification(AD) | Item. No. | Inner diameter x Outer diameter (mm) |
Curved radius (mm) |
Std. Pkg(m) |
|---|---|---|---|---|
| AD10.0 | FFP-PA-10.0 | 6.5 x 10.0 | 16 | 100 |
| AD11.6 | FFP-PA-11.6 | 8.0 x 11.6 | 16 | 100 |
| AD13.0 | FFP-PA-13.0 | 10.0 x 13.0 | 20 | 100 |
| AD15.8 | FFP-PA-15.8 | 12.0 x 15.8 | 30 | 100 |
| AD18.5 | FFP-PA-18.5 | 14.3 x 18.5 | 40 | 100 |
| AD21.2 | FFP-PA-21.2 | 17.0 x 21.2 | 45 | 100 |
| AD25.0 | FFP-PA-25.0 | 20.0 x 25.0 | 45 | 50 |
| AD28.5 | FFP-PA-28.5 | 23.0 x 28.5 | 50 | 50 |
| AD34.5 | FFP-PA-34.5 | 29.0 x 34.5 | 60 | 50 |
| AD42.5 | FFP-PA-42.5 | 36.0 x 42.5 | 70 | 50 |
| AD54.5 | FFP-PA-54.5 | 48.0 x 54.5 | 90 | 25 |
PE Flexible Pipe
Material: PE（Polyethylene）
Working temperature: -30℃ to 100℃, 120℃ can be reached but kept only for a short time
Style: Close and split
Colour: Black, other color available upon request.
Property: Good flexibility, smooth and bright surface, chemical corrosion resistant
Application: It can be used in machineries, electric equipment, foodstuff machineries, automatic meters and gauges, motors, protecting the cables from abrasion and providing insulation to the wires and cables.
How to use: Insert the wires and cables into the pipe and fit respective types of flexible joints before using.

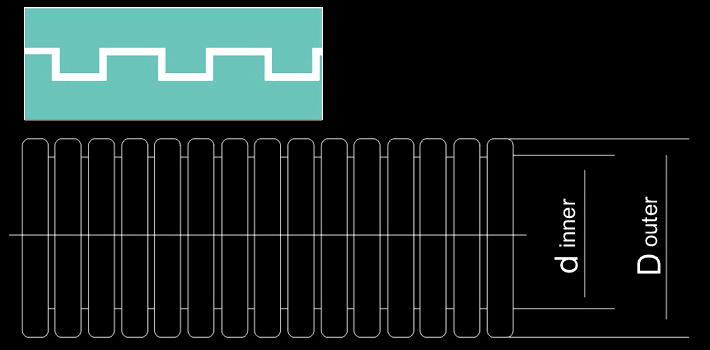

| Specification(AD) | Item. No. | Inner diameter x Outer diameter (mm) |
Curved radius (mm) |
Std. Pkg(m) |
|---|---|---|---|---|
| AD10.0 | FP-PE-10.0 | 6.5 x 10.0 | 16 | 100 |
| AD11.6 | FP-PE-11.6 | 8.0 x 11.6 | 16 | 100 |
| AD13.0 | FP-PE-13.0 | 10.0 x 13.0 | 20 | 100 |
| AD15.8 | FP-PE-15.8 | 12.0 x 15.8 | 30 | 100 |
| AD18.5 | FP-PE-18.5 | 14.3 x 18.5 | 40 | 100 |
| AD21.2 | FP-PE-21.2 | 17.0 x 21.2 | 45 | 100 |
| AD25.0 | FP-PE-25.0 | 20.0 x 25.0 | 45 | 100 |
| AD28.5 | FP-PE-28.5 | 23.0 x 28.5 | 50 | 50 |
| AD34.5 | FP-PE-34.5 | 29.0 x 34.5 | 60 | 50 |
| AD42.5 | FP-PE-42.5 | 36.0 x 42.5 | 70 | 50 |
| AD54.5 | FP-PE-54.5 | 48.0 x 54.5 | 90 | 25 |
Flame retardant PP Flexible Pipe
Material: PP (Polypropylene), flammability V-0
Working temperature: -30℃ to 100℃, 110℃ can be reached but kept only for a short time
Style: Close and split
Colour: Black, other color available upon request.
Property: Good flexibility, smooth and bright surface, chemical corrosion resistant
Application: Mainly used in automobiles wiring. But it can also be used in machineries, automatic meters and gauges, motors, protecting the cables from abrasion and providing insulation to the wires and cables.
How to use: Insert the wires and cables into the pipe and fit respective types of flexible joints before using
| Specification(AD) | Item. No. | Inner diameter x Outer diameter (mm) |
Curved radius (mm) |
Std. Pkg(m) |
|---|---|---|---|---|
| AD10.0 | FFF-PP-10.0 | 6.5 x 10.0 | 16 | 100 |
| AD11.6 | FFF-PP-11.6 | 8.0 x 11.6 | 16 | 100 |
| AD13.0 | FFF-PP-13.0 | 10.0 x 13.0 | 20 | 100 |
| AD15.8 | FFF-PP-15.8 | 12.0 x 15.8 | 30 | 100 |
| AD18.5 | FFF-PP-18.5 | 14.3 x 18.5 | 40 | 100 |
| AD21.2 | FFF-PP-21.2 | 17.0 x 21.2 | 45 | 100 |
| AD25.0 | FFF-PP-25.0 | 20.0 x 25.0 | 45 | 50 |
| AD28.5 | FFF-PP-28.5 | 23.0 x 28.5 | 50 | 50 |
| AD34.5 | FFF-PP-34.5 | 29.0 x 34.5 | 60 | 50 |
| AD42.5 | FFF-PP-42.5 | 36.0 x 42.5 | 70 | 50 |
| AD54.5 | FFF-PP-54.5 | 48.0 x 54.5 | 90 | 25 |
