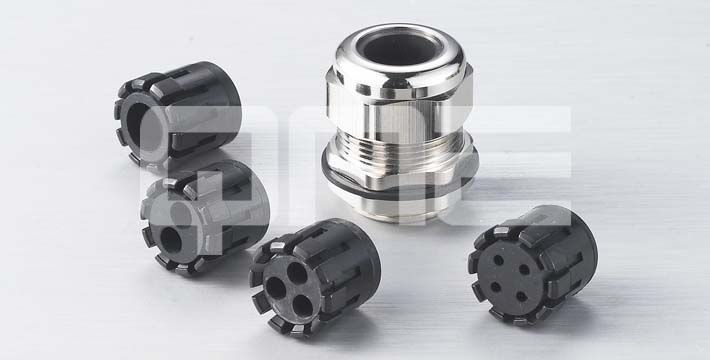

Metal Cable Glands (Multi-hole & Flat-hole)
Metric
PG
G(PF)
NPT
Thread: Metric, PG, G(PF), and NPT thread

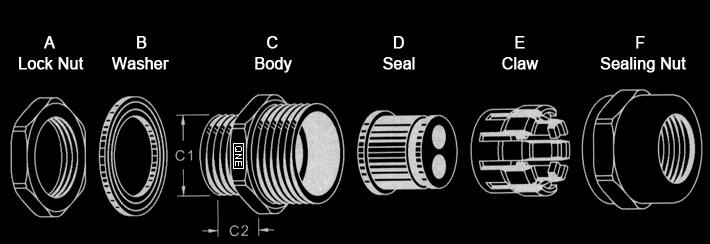

Materials: Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts..
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Seals: For cable outlet holes (several holes and flat), all the cables can not easily entangled and waterproof respectively.
| Seal Holes |
Thread | Cat No. | Cable Range Ф |
Thread 0.D. C1 |
Panel Mounting Hole |
Cable Thread Length C2 |
Spanner Size A & F |
Std.Pkg. pcs |
|---|---|---|---|---|---|---|---|---|
 |
M12×1.5 | MBA12-H2-03 | 3~1.2 | 12 | 12~12.3 | 8 | 17/17 | 10 |
| M16×1.5 | MBA16-H2-04 | 4~1.6 | 16 | 16~16.3 | 9 | 22/22 | 10 | |
| M20×1.5 | MBA20M-H2-05 | 5.3~1.5 | 20 | 20~20.3 | 9.5 | 24/24 | 10 | |
| M20×1.5 | MBA20-H2-03 | 3.5~2 | 20 | 20~20.3 | 9.5 | 26/26 | 10 | |
| M20×1.5 | MBA20-H2-06 | 6~2.5 | 20 | 20~20.3 | 9.5 | 26/26 | 10 | |
| M25×1.5 | MBA25-H2-05 | 5~2 | 25 | 25~25.4 | 12 | 32/32 | 10 | |
| M25×1.5 | MBA25-H2-08 | 8~4.5 | 25 | 25~25.4 | 12 | 32/32 | 10 | |
| M32×1.5 | MBA32-H2-10 | 10~5 | 32 | 32~32.4 | 12.5 | 41/41 | 10 | |
| G1/4 | FBA13-H2-03 | 3~1.2 | 13.1 | 13.1~13.4 | 8 | 17/17 | 10 | |
| G3/8 | FBA17-H2-04 | 4~1.6 | 16.6 | 16.6~16.9 | 9 | 22/22 | 10 | |
| G1/2 | FBA21-H2-03 | 3.5~2 | 20.9 | 20.9~21.2 | 9.5 | 26/26 | 10 | |
| G1/2 | FBA21-H2-06 | 6~2.5 | 20.9 | 20.9~21.2 | 9.5 | 26/26 | 10 | |
| G3/4 | FBA26-H2-05 | 5~2 | 26.4 | 26.4~26.8 | 12 | 32/32 | 10 | |
| G3/4 | FBA26-H2-08 | 8~4.5 | 26.4 | 26.4~26.8 | 12 | 32/32 | 10 | |
| G1 | FBA33-H2-10 | 10~5 | 33.2 | 33.2~33.6 | 12.5 | 41/41 | 10 | |
| PG 7 | PBA7-H2-03 | 3~1.2 | 12.5 | 12.5~12.8 | 8 | 17/17 | 10 | |
| PG 9 | PBA9-H2-03 | 3~1.2 | 15.2 | 15.2~15.5 | 8 | 18/17 | 10 | |
| PG 11 | PBA11-H2-04 | 4~1.6 | 18.6 | 18.6~18.9 | 9 | 22/22 | 10 | |
| PG 13.5 | PBA13.5-H2-05 | 5.3~1.5 | 20.4 | 20.4~20.7 | 9.5 | 24/24 | 10 | |
| PG 16 | PBA16-H2-03 | 3.5~2 | 22.5 | 22.5~22.8 | 9.5 | 26/26 | 10 | |
| PG 16 | PBA16-H2-06 | 6~2.5 | 22.5 | 22.5~22.8 | 9.5 | 26/26 | 10 | |
| PG 21 | PBA21-H2-05 | 5~2 | 28.3 | 28.3~28.7 | 12 | 32/32 | 10 | |
| PG 21 | PBA21-H2-08 | 8~4.5 | 28.3 | 28.3~28.7 | 12 | 32/32 | 10 | |
| PG 29 | PBA29-H2-10 | 10~5 | 37 | 37~37.4 | 12.5 | 41/41 | 10 | |
| NPT 3/8 | NBA17-H2-04 | 4~1.6 | 17.1 | - | 13 | |||
| NPT 1/2 | NBA21-H2-03 | 3.5~2 | 21.3 | - | 13 | |||
| NPT 1/2 | NBA21-H2-06 | 6~2.5 | 21.3 | - | 13 | |||
| NPT 3/4 | NBA26-H2-05 | 5~2 | 26.6 | - | 14 | |||
| NPT 3/4 | NBA26-H2-08 | 8~4.5 | 26.6 | - | 14 | |||
| NPT 1 | NBA33-H2-10 | 10~5 | 33.5 | - | 15 | |||
 |
M12×1.5 | MBA12-H3-02 | 2.6~1.2 | 12 | 12~12.3 | 8 | 17/17 | 10 |
| M16×1.5 | MBA16-H3-04 | 4~1.6 | 16 | 16~16.3 | 9 | 22/22 | 10 | |
| M20×1.5 | MBA20M-H3-05 | 5~2 | 20 | 20~20.3 | 9.5 | 24/24 | 10 | |
| M20×1.5 | MBA20-H3-03 | 3.5~1.5 | 20 | 20~20.3 | 9.5 | 26/26 | 10 | |
| M20×1.5 | MBA20-H3-05 | 5~2 | 20 | 20~20.3 | 9.5 | 26/26 | 10 | |
| M25×1.5 | MBA25-H3-05 | 5~2 | 25 | 25~25.4 | 12 | 32/32 | 10 | |
| M25×1.5 | MBA25-H3-08 | 8~4 | 25 | 25~25.4 | 12 | 32/32 | 10 | |
| M32×1.5 | MBA32-H3-10 | 10~5 | 32 | 32~32.4 | 12.5 | 41/41 | 10 | |
| G1/4 | FBA13-H3-02 | 2.6~1.2 | 13.1 | 13.1~13.4 | 8 | 17/17 | 10 | |
| G3/8 | FBA17-H3-04 | 4~1.6 | 16.6 | 16.6~16.9 | 9 | 22/22 | 10 | |
| G1/7 | FBA21-H3-03 | 3.5~1.5 | 20.9 | 20.9~21.2 | 9.5 | 26/26 | 10 | |
| G1/2 | FBA21-H3-05 | 5~2 | 20.9 | 20.9~21.2 | 9.5 | 26/26 | 10 | |
| G3/4 | FBA26-H3-05 | 5~2 | 26.4 | 26.4~26.8 | 12 | 32/32 | 10 | |
| G3/4 | FBA26-H3-08 | 8~4 | 26.4 | 26.4~26.8 | 12 | 32/32 | 10 | |
| G1 | FBA33-H3-10 | 10~5 | 33.2 | 33.2~33.6 | 12.5 | 41/41 | 10 | |
| PG 7 | PBA7-H3-02 | 2.6~1.2 | 12.5 | 12.5~12.8 | 8 | 17/17 | 10 | |
| PG 9 | PBA9-H3-02 | 2.6~1.2 | 15.2 | 15.2~15.5 | 8 | 18/17 | 10 | |
| PG 11 | PBA11-H3-04 | 4~1.6 | 18.6 | 18.6~18.9 | 9 | 22/22 | 10 | |
| PG 13.5 | PBA13.5-H3-05 | 5~2 | 20.4 | 20.4~20.7 | 9.5 | 24/24 | 10 | |
| PG 16 | PBA16-H3-03 | 3.5~1.5 | 22.5 | 22.5~22.8 | 9.5 | 26/26 | 10 | |
| PG 16 | PBA16-H3-05 | 5~2 | 22.5 | 22.5~22.8 | 9.5 | 26/26 | 10 | |
| PG 21 | PBA21-H3-05 | 5~2 | 28.3 | 28.3~28.7 | 12 | 32/32 | 10 | |
| PG 21 | PBA21-H3-08 | 8~4 | 28.3 | 28.3~28.7 | 12 | 32/32 | 10 | |
| PG 29 | PBA29-H3-10 | 10~5 | 37 | 37~37.4 | 12.5 | 41/41 | 10 | |
| NPT 3/8 | NBA17-H3-04 | 4~1.6 | 17.1 | - | 13 | 22 | 10 | |
| NPT 1/2 | NBA21-H3-03 | 3.5~1.5 | 21.3 | - | 13 | 26 | 10 | |
| NPT 1/2 | NBA21-H3-05 | 5~2 | 21.3 | - | 13 | 26 | 10 | |
| NPT 3/4 | NBA26-H3-05 | 5~2 | 26.6 | - | 14 | 32 | 10 | |
| NPT 3/4 | NBA26-H3-08 | 8~4 | 26.6 | - | 14 | 32 | 10 | |
| NPT 1 | NBA33-H3-10 | 10~5 | 33.5 | - | 15 | 41 | 10 | |
 |
M12×1.5 | MBA12-H4-02 | 2.3~1 | 12 | 12~12.3 | 8 | 17/17 | 10 |
| M16×1.5 | MBA16-H4-03 | 3-1.2 | 16 | 16~16.3 | 9 | 22/22 | 10 | |
| M20×1.5 | MBA20M-H4-04 | 4.2-1.7 | 20 | 20~20.3 | 9.5 | 24/24 | 10 | |
| M20×1.5 | MBA20-H4-03 | 3.5-1.5 | 20 | 20~20.3 | 9.5 | 26/26 | 10 | |
| M20×1.5 | MBA20-H4-04 | 4.5-2 | 20 | 20~20.3 | 9.5 | 26/26 | 10 | |
| M25×1.5 | MBA25-H4-05 | 5-2 | 25 | 25~25.4 | 12 | 32/32 | 10 | |
| M25×1.5 | MBA25-H4-07 | 7-3.5 | 25 | 25~25.4 | 12 | 32/32 | 10 | |
| M32×1.5 | MBA32-H4-09 | 9-4.5 | 32 | 32~32.4 | 12.5 | 41/41 | 10 | |
| G1/4 | FBA13-H4-02 | 2.3-1 | 13.1 | 13.1~13.4 | 8 | 17/17 | 10 | |
| G3/8 | FBA17-H4-03 | 3-1.2 | 16.6 | 16.6~16.9 | 9 | 22/22 | 10 | |
| G1/2 | FBA21-H4-03 | 3.5-1.5 | 20.9 | 20.9~21.2 | 9.5 | 26/26 | 10 | |
| G1/2 | FBA21-H4-04 | 4.5-2 | 20.9 | 20.9~21.2 | 9.5 | 26/26 | 10 | |
| G3/4 | FBA26-H4-05 | 5-2 | 26.4 | 26.4~26.8 | 12 | 32/32 | 10 | |
| G3/4 | FBA26-H4-07 | 7-3.5 | 26.4 | 26.4~26.8 | 12 | 32/32 | 10 | |
| G1 | FBA33-H4-09 | 9-4.5 | 33.2 | 33.2~33.6 | 12.5 | 41/41 | 10 | |
| PG 7 | PBA7-H4-02 | 2.3-1 | 12.5 | 12.5~12.8 | 8 | 17/17 | 10 | |
| PG 9 | PBA9-H4-02 | 2.3-1 | 15.2 | 15.2~15.5 | 8 | 18/17 | 10 | |
| PG 11 | PBA11-H4-03 | 3-1.2 | 18.6 | 18.6~18.9 | 9 | 22/22 | 10 | |
| PG 13.5 | PBA13.5-H4-04 | 4.2-1.7 | 20.4 | 20.4~20.7 | 9.5 | 24/24 | 10 | |
| PG 16 | PBA16-H4-03 | 3.5-1.5 | 22.5 | 22.5~22.8 | 9.5 | 26/26 | 10 | |
| PG 16 | PBA16-H4-04 | 4.5-2 | 22.5 | 22.5~22.8 | 9.5 | 26/26 | 10 | |
| PG 21 | PBA21-H4-05 | 5-2 | 28.3 | 28.3~28.7 | 12 | 32/32 | 10 | |
| PG 21 | PBA21-H4-07 | 7-3.5 | 28.3 | 28.3~28.7 | 12 | 32/32 | 10 | |
| PG 29 | PBA29-H4-09 | 9-4.5 | 37 | 37~37.4 | 12.5 | 41/41 | 10 | |
| NPT 3/8 | NBA17-H4-03 | 3-1.2 | 17.1 | - | 13 | 22 | 10 | |
| NPT 1/2 | NBA21-H4-03 | 3.5-1.5 | 21.3 | - | 13 | 26 | 10 | |
| NPT 1/2 | NBA21-H4-04 | 4.5-2 | 21.3 | - | 13 | 26 | 10 | |
| NPT 3/4 | NBA26-H4-05 | 5-2 | 26.6 | - | 14 | 32 | 10 | |
| NPT 3/4 | NBA26-H4-07 | 7-3.5 | 26.6 | - | 14 | 32 | 10 | |
| NPT 1 | NBA33-H4-09 | 9-4.5 | 33.5 | - | 15 | 41 | 10 | |
 |
M16×1.5 | MBA16-H5-02 | 2.5-1 | 16 | 16~16.3 | 9 | 22/22 | 10 |
| M20×1.5 | MBA20-H5-03 | 3-1.2 | 20 | 20~20.3 | 9.5 | 26/26 | 10 | |
| M20×1.5 | MBA20-H5-04 | 4.2-1.7 | 20 | 20~20.3 | 9.5 | 26/26 | 10 | |
| M25×1.5 | MBA25-H5-03 | 3.5-1.5 | 25 | 25~25.4 | 12 | 32/32 | 10 | |
| M25×1.5 | MBA25-H5-06 | 6-3 | 25 | 25~25.4 | 12 | 32/32 | 10 | |
| M32×1.5 | MBA32-H5-08 | 8-4 | 32 | 32~32.4 | 12.5 | 41/41 | 10 | |
| G3/8 | FBA17-H5-02 | 2.5-1 | 16.6 | 16.6~16.9 | 9 | 22/22 | 10 | |
| G1/2 | FBA21-H5-03 | 3-1.2 | 20.9 | 20.9~21.2 | 9.5 | 26/26 | 10 | |
| G1/2 | FBA21-H5-04 | 4.2-1.7 | 20.9 | 20.9~21.2 | 9.5 | 26/26 | 10 | |
| G3/4 | FBA26-H5-03 | 3.5-1.5 | 26.4 | 26.4~26.8 | 12 | 32/32 | 10 | |
| G3/4 | FBA26-H5-06 | 6-3 | 26.4 | 26.4~26.8 | 12 | 32/32 | 10 | |
| G1 | FBA33-H5-08 | 8-4 | 33.2 | 33.2~33.6 | 12.5 | 41/41 | 10 | |
| PG 11 | PBA11-H5-02 | 2.5-1 | 18.6 | 18.6~18.9 | 9 | 22/22 | 10 | |
| PG 16 | PBA16-H5-03 | 3-1.2 | 22.5 | 22.5~22.8 | 9.5 | 26/26 | 10 | |
| PG 16 | PBA16-H5-04 | 4.2-1.7 | 22.5 | 22.5~22.8 | 9.5 | 26/26 | 10 | |
| PG 21 | PBA21-H5-03 | 3.5-1.5 | 28.3 | 28.3~28.7 | 12 | 32/32 | 10 | |
| PG 21 | PBA21-H5-06 | 6-3 | 28.3 | 28.3~28.7 | 12 | 32/32 | 10 | |
| PG 29 | PBA29-H5-08 | 8-4 | 37 | 37~37.4 | 12.5 | 41/41 | 10 | |
| NPT 3/8 | NBA17-H5-02 | 2.5-1 | 17.1 | - | 13 | 22 | 10 | |
| NPT 1/2 | NBA21-H5-03 | 3-1.2 | 21.3 | - | 13 | 26 | 10 | |
