    PRODUCT NAME

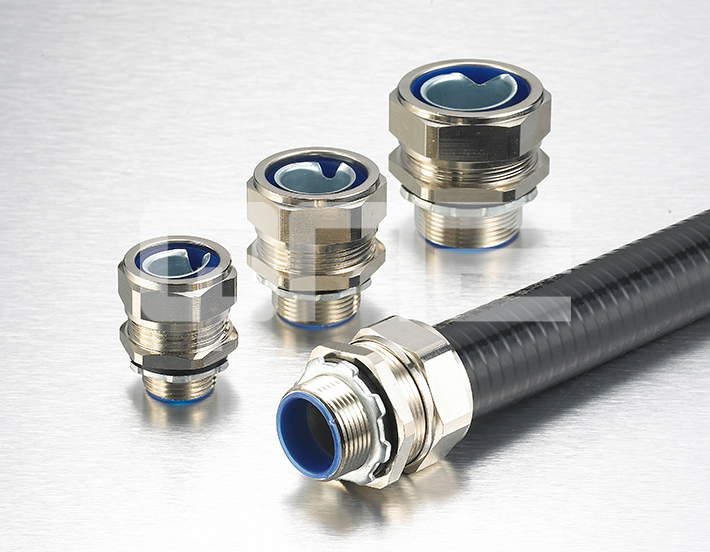

    Liquid Tight Metal Flexible Conduit Fitting

    •Thread: Metric, PG, G(PF), and NPT thread

    •Materials:Brass with nickel plated for B,G parts; metal for A,C parts, TPE plastic for C,F parts; EPDM rubber for B part. •Protection degree: IP66

    •Working temperature: -40℃ to 100℃

    •Application: Connect metal flexible conduit fitting to protect cables and waterproof Accept special size as customized

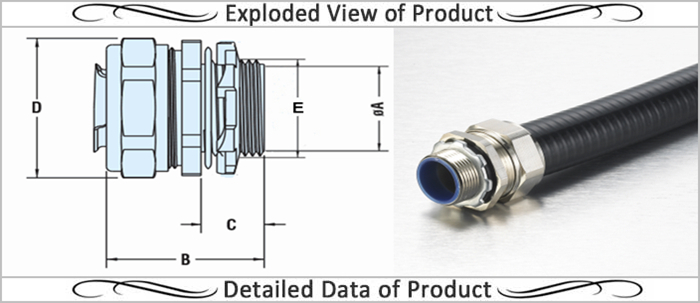

    Size Outer
    Diameter(E)
    mm    		 Inner
    Diameter(A)
    mm    		 Thread
    Length(C)
    mm    		 Total
    Length(B)
    mm    		 Spanner
    Size(D)    		 Conduit
    Size
    inch mm
    JSSGJ-M16×1.5 16 13.8 10 31 25.7 3/8 12
    JSSGJ-M20×1.5 20 14.8 12 38.1 28.6 1/2 16
    JSSGJ-M25×1.5 25 18.8 13.5 42.9 34.9 3/4 20
    JSSGJ-M32×1.5 32 25.8 17.5 46 42.4 1 25
    JSSGJ-M40×1.5 40 33.4 18 48.5 53 1-1/4 32
    JSSGJ-M50×1.5 50 39.3 23 58.5 59 1-1/2 38
    JSSGJ-M63×1.5 63 49.2 28 66.8 74 5 51
    JSSGJ-PG11 18.6 13.8 10 31 25.7 3/8 12
    JSSGJ-PG16 22.5 14.8 12 38.1 28.6 1/2 16
    JSSGJ-PG21 28.3 18.8 13.5 42.9 34.9 3/4 20
    JSSGJ-PG29 37 25.8 17.5 46 42.4 1 25
    JSSGJ-PG36 47 33.4 18 48.5 53 1-1/4 32
    JSSGJ-PG42 54 39.3 23 58.5 59 1-1/2 38
    JSSGJ-PG48 59.3 49.2 28 66.8 74 2 51
    JSSGJ-NPT3/8 16.6 13.8 10 31 25.7 3/8 12
    JSSGJ-NPT1/2 20.9 14.8 12 38.1 28.6 1/2 16
    JSSGJ-NPT3/4 26.4 18.8 13.5 42.9 34.9 3/4 20
    JSSGJ-NPT1 33.2 25.8 17.5 46 42.4 1 25
    JSSGJ-NPT1-1/4 41.9 33.4 48.5 48.5 53 1-1/4 32
    JSSGJ-NPT1-1/2 48 39.3 23 58.5 59 1-1/2 38
    JSSGJ-NPT-2 60 49.2 28 66.8 74 2 38
    JSSGJ-G3/8 16.6 13.8 10 31 25.7 3/8 12
    JSSGJ-G1/2 20.9 14.8 12 38.1 28.6 1/2 16
    JSSGJ-G3/4 26.4 18.8 13.5 42.9 34.9 3/4 20
    JSSGJ-G1 33.2 25.8 17.5 46 42.4 1 25
    JSSGJ-G1-1/4 41.9 33.4 18 48.5 53 1-1/4 32
    JSSGJ-G1-1/2 48 39.3 23 58.5 59 1-1/2 38
    JSSGJ-G-2 60 49.2 28 66.8 74 2 51
