PRODUCT NAME

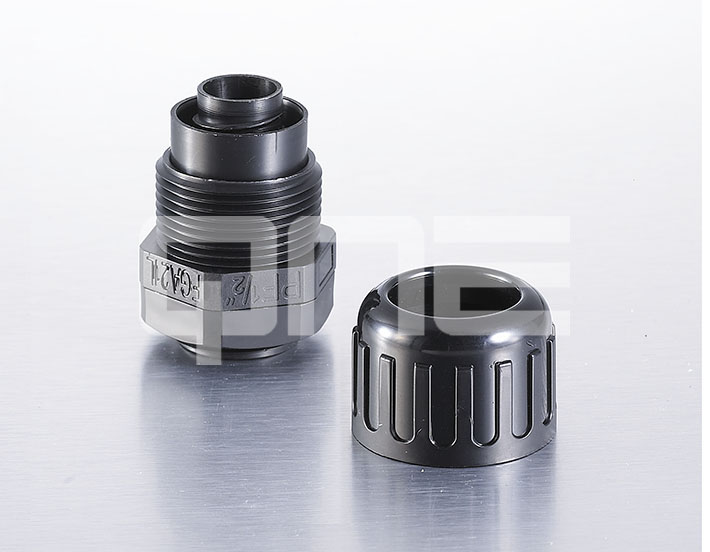

PA Fittings For Convoluted Metal Conduits
Thread: Metric, PG, G(PF), and NPT thread
Materials: UL approved Nylon PA66 (Flammability UL 94V-2)
Colours: Black(RAL9005),Gray(RAL7035)
Working temperature: -40℃ to 100℃
Application: Connect metal flexible conduit to provide strong pull-out strength and anti-vibration function; waterproof
| Accommodated Pipes |

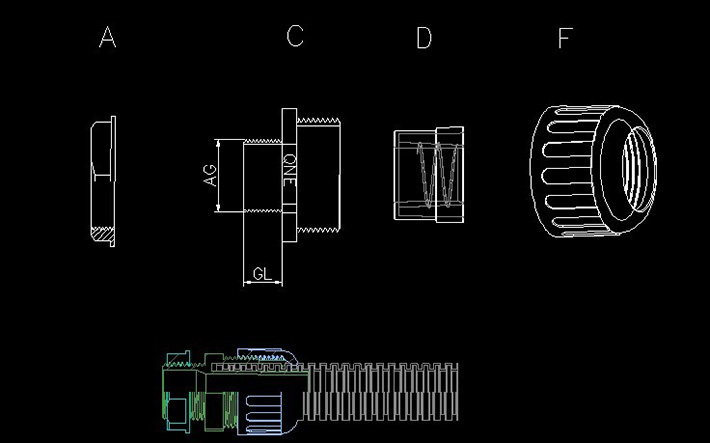

Item. No. | Thread | AG Outer diameter (mm) |
Thread Length GL (mm) |
Std. Pkg(pcs) |
|---|---|---|---|---|---|
| 5/16”管 | SJSSGJ-M16-AD15.8-ST | M16 x 1.5 | 16 | 10 | 50 |
| 5/16”管 | SJSSGJ-M16-AD15.8 | M16 x 1.5 | 16 | 15 | 50 |
| 3/8”管 | SJSSGJ-M16-AD15.8-ST | M16 x 1.5 | 16 | 10 | 50 |
| 3/8”管 | SJSSGJ-M16-AD15.8 | M16 x 1.5 | 16 | 15 | 50 |
| 1/2”管 | SJSSGJ-M20-AD21.2-ST | M20 x 1.5 | 20 | 10 | 50 |
| 1/2”管 | SJSSGJ-M20-AD21.2 | M20 x 1.5 | 20 | 15 | 50 |
| 3/4”管 | SJSSGJ-M25-AD26.2-ST | M25 x 1.5 | 25 | 10 | 50 |
| 3/4”管 | SJSSGJ-M25-AD26.2 | M25 x 1.5 | 25 | 15 | 50 |
| 1”管 | SJSSGJ-M32-AD34.5-ST | M32 x 1.5 | 32 | 10 | 20 |
| 1”管 | SJSSGJ-M32-34.5 | M32 x 1.5 | 32 | 15 | 20 |
| 1 1/4”管 | SJSSGJ-M40-AD42.5 | M40 x 1.5 | 40 | 15 | 10 |
| 1 1/2”管 | SJSSGJ-M50-AD48 | M50 x 1.5 | 50 | 15 | 10 |
| 2”管 | SJSSGJ-M63-AD54.5 | M63x 1.5 | 63 | 25 | 10 |
| 5/16”管 | SJSSGJ-PG16-15.8 | PG16 | 22.5 | 10.8 | 50 |
| 3/8”管 | SJSSGJ-PG16-15.8 | PG16 | 22.5 | 10.8 | 50 |
| 1/2”管 | SJSSGJ-PG16-21.2 | PG16 | 22.5 | 13 | 50 |
| 3/4”管 | SJSSGJ-PG21-28.5 | PG21 | 28.3 | 13 | 50 |
| 1”管 | SJSSGJ-PG29-34.5 | PG29 | 37 | 13 | 20 |
| 5/16”管 | SJSSGJ-PF1/2-15.8 | G(PF)1/2 | 20.9 | 15 | 50 |
| 3/8”管 | SJSSGJ-PF1/2-18.5 | G(PF)1/2 | 20.9 | 15 | 50 |
| 1/2”管 | SJSSGJ-PF1/2-21.2 | G(PF)1/2 | 20.9 | 15 | 50 |
| 3/4”管 | SJSSGJ-PF3/4-28.5 | G(PF)3/4 | 26.4 | 15 | 50 |
| 1”管 | SJSSGJ-PF1-34.5 | G(PF)1 | 33.2 | 15 | 20 |
| 1 1/4”管 | SJSSGJ-PF1 1/4-42.5 | G(PF)1 1/4 | 41.9 | 15 | 10 |
| 1 1/2”管 | SJSSGJ-PF1 1/2-48 | G(PF)1 1/2 | 48 | 15 | 10 |
| 2”管 | SJSSGJ-PF2-54.5 | G(PF)2 | 60 | 15 | 10 |
