PRODUCT NAME
Superb pullout strength corrugated tubing fittings (Quick-fit)-patent
Material: NYLON PA
Install for Use：

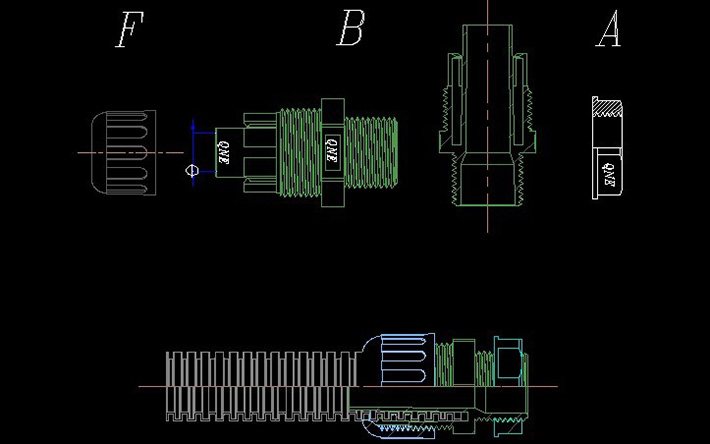

1. Put the body of corrugated tubing fittings into panel mounting hole, assembly can then be secured in the panel by the locknut.
2. Insert the corrugated tubing into the tubing fittings, then tightens the domed sealing nut.
Color: Black, light grey, other color available upon request
Thread type: Metric, PG thread. Other threads available upon request.
Application: Superb pullout strength, suitable for each material (PA/PE/PP) corrugated tubing etc, ignore the material of corrugated tubing and performance, can solve the issues of split plastic corrugated tubing to join and fixed, can quick-fit to assemble, superb pullout strength and waterproof performance.
| Accommodated Pipes |
Maximum cable to cross Ф |
Item. No. | Thread | AG Outer diameter (mm) |
Thread Length GL (mm) |
Std. Pkg (pcs) |
|---|---|---|---|---|---|---|
| AD15.8 | Ф9.5 | QNE-M16-15.8 | M16 x 1.5 | 16 | 15 | 50 |
| AD15.8 | Ф9.5 | QNE-M20-15.8 | M20 x 1.5 | 20 | 15 | 50 |
| AD15.8 | Ф9.5 | QNE-PG16-15.8 | PG16 | 22.5 | 10.8 | 50 |
| AD18.5 | Ф10.2 | QNE-M16-18.5 | M16 x 1.5 | 16 | 15 | 50 |
| AD18.5 | Ф10.2 | QNE-M20-18.5 | M20 x 1.5 | 20 | 15 | 50 |
| AD18.5 | Ф12 | QNE-PG16-18.5 | PG16 | 22.5 | 10.8 | 50 |
