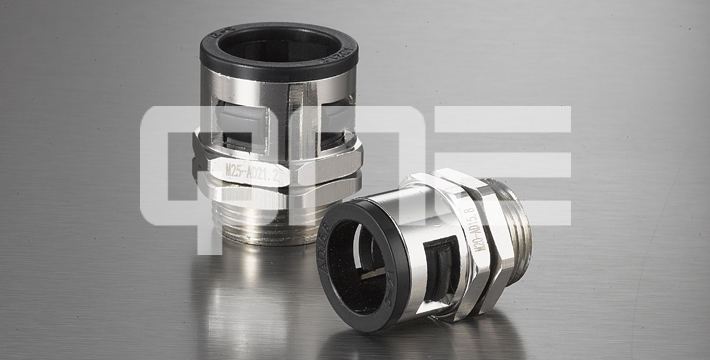

Brass Quick Connector for Flexible Pipes
Thread: Metric, PG, G(PF), and NPT thread
Brass with nickel plated for A. C parts, UL approved Nylon PA66
(Flammability UL 94V-2) for F part.(Can make as customer's requirement)
Working temperature: -40℃ to 100℃
Features: The claws of excellent design, to provide a fast & safe
connection with the tubing and to get an excellent result of the pullout
strength to be the best balanced performers for cable protection
system.
| Accommodated Pipes |

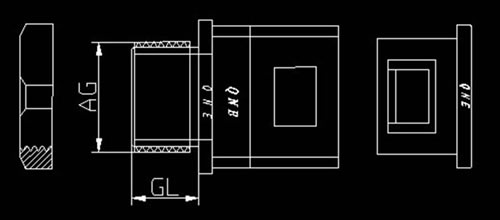

Item. No. | Thread | AG Outer diameter (mm) |
Thread Length GL (mm) |
Std. Pkg(pcs) |
|---|---|---|---|---|---|
| AD10.0 | QBCTF-M10 -10.0 | M10 x 1.5 | 10 | 10 | 20 |
| AD10.0 | QBCTF-M12 -10.0 | M12 x 1.5 | 12 | 10 | 20 |
| AD13.0 | QBCTF-M12 -13.0 | M12 x 1.5 | 12 | 10 | 20 |
| AD13.0 | QBCTF-M16 -13.0 | M16 x 1.5 | 16 | 10 | 20 |
| AD13.0 | QBCTF-M18 -13.0 | M18 x 1.5 | 18 | 10 | 20 |
| AD13.0 | QBCTF-M20 -13.0 | M20 x 1.5 | 20 | 10 | 20 |
| AD15.8 | QBCTF-M16 -15.8 | M16 x 1.5 | 16 | 12.5 | 20 |
| AD15.8 | QBCTF-M18 -15.8 | M18 x 1.5 | 18 | 12.5 | 20 |
| AD15.8 | QBCTF-M20 -15.8 | M20 x 1.5 | 20 | 12.5 | 20 |
| AD18.5 | QBCTF-M18-18.5 | M18 x 1.5 | 18 | 12.5 | 20 |
| AD18.5 | QBCTF-M20 -18.5 | M20 x 1.5 | 20 | 12.5 | 20 |
| AD18.5 | QBCTF-M22 -18.5 | M22 x 1.5 | 22 | 12.5 | 20 |
| AD21.2 | QBCTF-M20 -21.2 | M20 x 1.5 | 20 | 13 | 10 |
| AD21.2 | QBCTF-M22 -21.2 | M22 x 1.5 | 22 | 13 | 10 |
| AD21.2 | QBCTF-M24 -21.2 | M24 x 1.5 | 24 | 13 | 10 |
| AD21.2 | QBCTF-M25 -21.2 | M25 x 1.5 | 25 | 13 | 10 |
| AD25.0 | QBCTF-M25 -25.0 | M25 x 1.5 | 25 | 13 | 10 |
| AD28.5 | QBCTF-M25 -28.5 | M25 x 1.5 | 25 | 13 | 10 |
| AD28.5 | QBCTF-M27 -28.5 | M27 x 1.5 | 27 | 13 | 10 |
| AD28.5 | QBCTF-M30 -28.5 | M30 x 1.5 | 30 | 13 | 10 |
| AD28.5 | QBCTF-M30 -28.5-2 | M30 x 2 | 30 | 13 | 10 |
| AD28.5 | QBCTF-M32 -28.5 | M32 x 1.5 | 32 | 13 | 10 |
| AD34.5 | QBCTF-M32 -34.5 | M32 x 1.5 | 32 | 14 | 5 |
| AD34.5 | QBCTF-M36 -34.5 | M36 x 1.5 | 36 | 14 | 5 |
| AD34.5 | QBCTF-M36 -34.5-2 | M36 x 2 | 36 | 14 | 5 |
| AD34.5 | QBCTF-M40 -34.5 | M40 x 1.5 | 40 | 14 | 5 |
| AD42.5 | QBCTF-M40 -42.5 | M40 x 1.5 | 40 | 15 | 5 |
| AD42.5 | QBCTF-M42 -42.5 | M42 x 1.5 | 42 | 15 | 5 |
| AD42.5 | QBCTF-M48 -42.5 | M48 x 1.5 | 48 | 15 | 5 |
| AD42.5 | QBCTF-M48 -42.5-2 | M48 x 2 | 48 | 15 | 5 |
| AD42.5 | QBCTF-M50 -42.5 | M50 x 1.5 | 50 | 15 | 5 |
| AD54.5 | QBCTF-M50 -54.5 | M50 x 1.5 | 50 | 16 | 1 |
| AD54.5 | QBCTF-M60 -54.5 | M60 x 1.5 | 60 | 16 | 1 |
| AD54.5 | QBCTF-M63 -54.5 | M63 x 1.5 | 60 | 16 | 1 |
| AD10.0 | QBCTF-PG7 -10.0 | PG7 | 12.4 | 8.5 | 20 |
| AD13.0 | QBCTF-PG9 -13.0 | PG9 | 15.2 | 10 | 20 |
| AD15.8 | QBCTF-PG11 -15.8 | PG11 | 18.4 | 12.5 | 20 |
| AD18.5 | QBCTF-PG13.5 -18.5 | PG13.5 | 20.4 | 12.5 | 20 |
| AD21.2 | QBCTF-PG16 -21.2 | PG16 | 22.5 | 13 | 10 |
| AD25 | QBCTF-PG21 -25 | PG21 | 28.3 | 13 | 10 |
| AD28.5 | QBCTF-PG21 -28.5 | PG21 | 28.3 | 13 | 10 |
| AD34.5 | QBCTF-PG29 -34.5 | PG29 | 37 | 14 | 5 |
| AD42.5 | QBCTF-PG36 -42.5 | PG36 | 47 | 15 | 5 |
| AD54 | QBCTF-PG42 -54.5 | PG42 | 54 | 16 | 1 |
| AD54 | QBCTF-PG48 -54.5 | PG48 | 59.3 | 16 | 1 |
| AD10.0 | QBCTF-G1/4 -10.0 | G(PF) 1/4 | 13.1 | 8.5 | 20 |
| AD13.0 | QBCTF-G3/8 -13.0 | G(PF) 3/8 | 16.6 | 10 | 20 |
| AD15.8 | QBCTF-G3/8 -15.8 | G(PF) 3/8 | 16.6 | 12.5 | 20 |
| AD15.8 | QBCTF-G1/2 -15.8 | G(PF) 1/2 | 20.9 | 12.5 | 20 |
| AD18.5 | QBCTF-G1/2 -18.5 | G(PF) 1/2 | 20.9 | 12.5 | 20 |
| AD21.2 | QBCTF-G1/2 -21.2 | G(PF) 1/2 | 20.9 | 13 | 10 |
| AD21.2 | QBCTF-G3/4 -21.2 | G(PF) 3/4 | 26.4 | 13 | 10 |
| AD25.0 | QBCTF-G3/4 -25 | G(PF) 3/4 | 26.4 | 13 | 10 |
| AD28.5 | QBCTF-G3/4 -28.5 | G(PF) 3/4 | 26.4 | 13 | 10 |
| AD34.5 | QBCTF-G1 -34.5 | G(PF) 1 | 33.2 | 14 | 5 |
| AD42.5 | QBCTF-G1 1/4 -42.5 | G(PF) 1 1/4 | 41.9 | 15 | 5 |
| AD54.5 | QBCTF-G1 1/2 -54.5 | G(PF) 1 1/2 | 48 | 16 | 1 |
| AD54.5 | QBCTF-G2 -54.5 | G(PF) 2 | 60 | 16 | 1 |
| AD21.2 | QBCTF-PF1/2-21.2 | G(PF)1/2 | 20.9 | 15 | 10 |
| AD21.2 | QBCTF-PF3/4-21.2 | G(PF)3/4 | 26.4 | 15 | 10 |
| AD28.5 | QBCTF-PF3/4-28.5 | G(PF)3/4 | 26.4 | 15 | 10 |
| AD34.5 | QBCTF-PF1-34.5 | G(PF)1 | 33.2 | 15 | 5 |
| AD42.5 | QBCTF-PF1 1/4-42.5 | G(PF)1 1/4 | 41.9 | 15 | 5 |
| AD54.5 | QBCTF-PF1 1/2-54.5 | G(PF)1 1/2 | 48 | 15 | 1 |
| AD54.5 | QBCTF-PF2-54.5 | G(PF)2 | 60 | 15 | 1 |
| AD60 | QBCTF-PF1 1/2-60 | G(PF)1 1/2 | 48 | 15 | 1 |
| AD60 | QBCTF-PF2-60 | G(PF)2 | 30 | 15 | 1 |
