    PRODUCT NAME

    Quick Connector for Flexible Pipes

    Thread: Metric, PG, G (PF/BSP/PS), and NPT thread
    Materials: UL approved Nylon PA66 (Flammability UL 94V-2)
    Working temperature: -40℃ to 100℃
    Features: The claws of excellent design, to provide a fast & safe connection with the tubing and to get an excellent result of the pullout strength to be the best balanced performers for cable protection system.
    Color: Black(RAL9005)、grey(RAL7035),other color available upon request.

    Accommodated

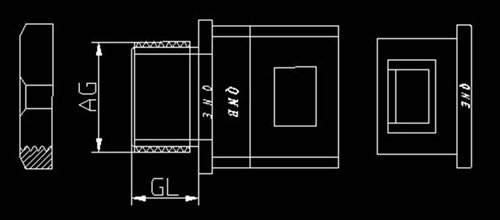

    Pipes    		 Item. No. Thread AG Outer
    diameter
    (mm)    		 Thread
    Length GL
    (mm)    		 Std.
    Pkg(pcs)
    AD10.0 QTF-M10 -10.0 M10 x 1.5 10 8.5 50
    AD10.0 QTF-M12 -10.0 M12 x 1.5 12 8.5 50
    AD13.0 QTF-M12 -13.0 M12 x 1.5 12 10 50
    AD13.0 QTF-M16 -13.0 M16 x 1.5 16 10 50
    AD13.0 QTF-M18 -13.0 M18 x 1.5 18 10 50
    AD13.0 QTF-M20 -13.0 M20 x 1.5 20 10 50
    AD15.8 QTF-M16 -15.8 M16 x 1.5 16 10 50
    AD15.8 QTF-M18 -15.8 M18 x 1.5 18 12.5 50
    AD15.8 QTF-M20 -15.8 M20 x 1.5 20 12.5 50
    AD18.5 QTF-M18 -18.5 M18 x 1.5 18 12.5 50
    AD18.5 QTF-M20 -18.5 M20 x 1.5 20 12.5 50
    AD18.5 QTF-M22 -18.5 M22 x 1.5 22 12.5 50
    AD21.2　 QTF-M20 -21.2 M20 x 1.5 20 13 50
    AD21.2　 QTF-M22 -21.2 M22 x 1.5 22 13 50
    AD21.2　 QTF-M24 -21.2 M24 x 1.5 24 13 50
    AD21.2　 QTF-M25 -21.2 M25 x 1.5 25 13 50
    AD25.0 QTF-M25-25.0 M25 x 1.5 25 13 50
    AD28.5 QTF-M25 -28.5 M25 x 1.5 25 13 20
    AD28.5　 QTF-M27 -28.5 M27 x 1.5 27 13 20
    AD28.5　 QTF-M30 -28.5 M30 x 1.5 30 13 20
    AD28.5　 QTF-M30 -28.5-2 M30 x 2 30 13 20
    AD28.5　 QTF-M32 -28.5 M32 x 1.5 32 13 20
    AD34.5 QTF-M32 -34.5 M32 x 1.5 32 14 10
    AD34.5 QTF-M36 -34.5 M36 x 1.5 36 14 10
    AD34.5 QTF-M36 -34.5-2 M36 x 2 36 14 10
    AD34.5 QTF-M40 -34.5 M40 x 1.5 40 14 10
    AD42.5 QTF-M40 -42.5 M40 x 1.5 40 15 8
    AD42.5 QTF-M42 -42.5 M42 x 1.5 42 15 8
    AD42.5 QTF-M48 -42.5 M48 x 1.5 48 15 8
    AD42.5 QTF-M48 -42.5-2 M48 x 2 48 15 8
    AD42.5 QTF-M50 -42.5 M50 x 1.5 50 15 8
    AD54.5 QTF-M50 -54.5 M50 x 1.5 50 16 5
    AD54.5 QTF-M60 -54.5 M60 x 1.5 60 16 5
    AD54.5 QTF-M63 -54.5 M63 x 1.5 60 16 5
    AD10.0 QTF-PG7 -10.0 PG7 12.4 8.5 50
    AD13.0 QTF-PG9 -13.0 PG9 15.2 10 50
    AD15.8 QTF-PG11 -15.8 PG11 18.4 12.5 50
    AD18.5 QTF-PG13.5 -18.5 PG13.5 20.4 12.5 50
    AD21.2 QTF-PG16 -21.2 PG16 22.5 13 50
    AD25 QTF-PG21 -25 PG21 28.3 13 20
    AD28.5 QTF-PG21 -28.5 PG21 28.3 13 20
    AD34.5 QTF-PG29 -34.5 PG29 37 14 10
    AD42.5 QTF-PG36 -42.5 PG36 47 15 8
    AD54.5 QTF-PG42 -54.5 PG42 54 16 5
    AD54.5 QTF-PG48 -54.5 PG48 59.3 16 5
    AD10.0 QTF-G1/4 -10.0 G(PF) 1/4 13.1 8.5 50
    AD13.0 QTF-G3/8 -13.0 G(PF) 3/8 16.6 10 50
    AD15.8 QTF-G3/8 -15.8 G(PF) 3/8 16.6 12.5 50
    AD15.8 QTF-G1/2 -15.8 G(PF) 1/2 20.9 12.5 50
    AD18.5 QTF-G1/2 -18.5 G(PF) 1/2 20.9 12.5 50
    AD21.2　 QTF-G1/2 -21.2 G(PF) 1/2 20.9 13 50
    AD21.2　 QTF-G3/4 -21.2 G(PF) 3/4 26.4 13 50
    AD25.0 QTF-G3/4 -25 G(PF) 3/4 26.4 13 50
    AD28.5 QTF-G3/4 -28.5 G(PF) 3/4 26.4 13 20
    AD34.5 QTF-G1 -34.5 G(PF) 1 33.2 14 10
    AD42.5 QTF-G1 1/4 -42.5 G(PF) 1 1/4 41.9 15 8
    AD54.5 QTF-G1 1/2 -54.5 G(PF) 1 1/2 48 16 5
    AD54.5 QTF-G2 -54.5 G(PF) 2 60 16 5
    AD21.2 QTF-PF1/2-21.2 G(PF)1/2 20.9 15 50
    AD21.2 QTF-PF3/4-21.2 G(PF)3/4 26.4 15 50
    AD28.5 QTF-PF3/4-28.5 G(PF)3/4 26.4 15 50
    AD34.5 QTF-PF1-34.5 G(PF)1 33.2 15 20
    AD42.5 QTF-PF1 1/4-42.5 G(PF)1 1/4 41.9 15 10
    AD54.5 QTF-PF1 1/2-54.5 G(PF)1 1/2 48 15 10
    AD54.5 QTF-PF2-54.5 G(PF)2 60 15 10
