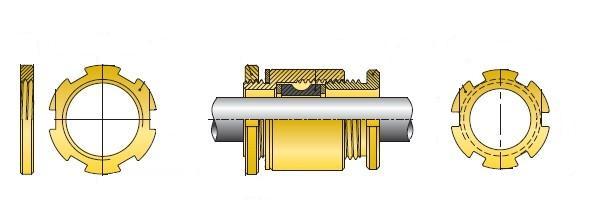

(Japan Type) Marine Stuffing Box Joint

Materials: Brass with nickel plated, EPDM Rubber

Type Standard: Japanese

Protection Level: IP54

Working Temperature: -40℃ to 100℃

Application: Stuffing Box joint is especially for the use of ship to protect the cable

Item. No.	Size	Thread	Clamping type	Cable Range (mm)	Thread Length (mm)	Board Diameter (mm)
QNE-JT3/8A	JT-10	3/8	A	6-7	11	18
QNE-JT3/8B	JT-10	3/8	B	7-8	11	18
QNE-JT1/2A	JT-15	1/2	A	8-9	11	22
QNE-JT1/2B	JT-15	1/2	B	9-10	11	22
QNE-JT1/2C	JT-15	1/2	C	9-11	11	22
QNE-JT3/4A	JT-20	3/4	A	11-12	11	27
QNE-JT3/4B	JT-20	3/4	B	12-13	11	27
QNE-JT3/4C	JT-20	3/4	C	12-15	11	27
QNE-JT1A	JT-25	1	A	15-16	11	34
QNE-JT1B	JT-25	1	B	16-18	11	34
QNE-JT1C	JT-25	1	C	16-20	11	34
QNE-JT1-1/4A	JT-30	1-1/4	A	20-22	12	43
QNE-JT1-1/4B	JT-30	1-1/4	B	22-24	12	43
QNE-JT1-1/4C	JT-30	1-1/4	C	22-26	12	43
QNE-JT1-1/2Aa	JT-35	1-1/2	A	26-28	12	49
QNE-JT1-1/2Ba	JT-35	1-1/2	B	28-30	12	49
QNE-JT1-1/2Ca	JT-35	1-1/2	C	26-30	12	49
QNE-JT1-1/2Ab	JT-40	1-1/2	A	30-32	12	49
QNE-JT1-1/2Bb	JT-40	1-1/2	B	32-34	12	49
QNE-JT1-1/2Cb	JT-40	1-1/2	C	30-34	12	49
QNE-JT2Aa	JT-45	2	A	34-36	12	61
QNE-JT2Ba	JT-45	2	B	36-38	12	61
QNE-JT2Ca	JT-45	2	C	36-40	12	61
QNE-JT2Ab	JT-50	2	A	40-42	12	61
QNE-JT2Bb	JT-50	2	B	42-44	12	61
QNE-JT2Cb	JT-50	2	C	40-44	12	61
QNE-JT2-1/2Aa	JT-55	2-1/2	A	44-46	12	76
QNE-JT2-1/2Ba	JT-55	2-1/2	B	46-48	12	76
QNE-JT2-1/2Ca	JT-55	2-1/2	C	46-50	12	76
QNE-JT2-1/2Ab	JT-60	2-1/2	A	50-52	12	76
QNE-JT2-1/2Bb	JT-60	2-1/2	B	52-54	12	76
QNE-JT2-1/2Cb	JT-60	2-1/2	C	52-56	12	76
QNE-JT3Aa	JT-65	3	A	56-58	14	89
QNE-JT3Ba	JT-65	3	B	58-60	14	89
QNE-JT3Ab	JT-70	3	A	60-62	14	89
QNE-JT3Bb	JT-70	3	B	62-64	14	89
QNE-JT3Ac	JT-75	3	A	64-66	14	89
QNE-JT3Bc	JT-75	3	B	66-70	14	89
