PRODUCT NAME
Inner Thread Metric Nylon Cable Gland
· Thread: Metric
· Material: UL approved Halogen-free Nylon PA66(Flamability UL 94V-2), (Accept to make flammability UL 94V-0 ); EPDM rubber(Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
· Protection degree: IP68
· Working temperature: -40℃-100℃ in static state, or instantaneous heat resistant up to 120℃; -20℃-80℃ in dynamic state, or instantaneous heat resistant up to 100℃
· Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
· Colours: Black(RAl9005), gray(RAL7035), other color available upon request

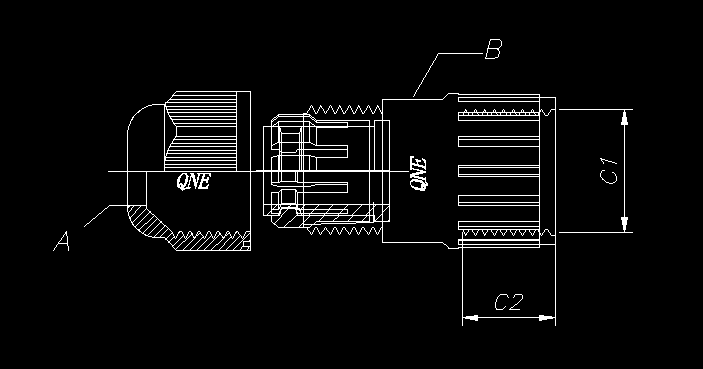

| Item. No. | Cable Range Ф (mm)A |
thread inside diameter C1 (MM) |
Thread Length C2 (mm) |
Spanner Size A&B (mm) |
Std. Pkg(pcs) |
|---|---|---|---|---|---|
| NNCG-M20-H1-5 | 3-5 | 20x1.5 | 15 | 22/23 | 50 |
| NNCG-M20-H1-7 | 4-7 | 20x1.5 | 15 | 22/23 | 50 |
| NNCG-M20-H1-10 | 6-10 | 20x1.5 | 15 | 22/23 | 50 |
| NNCG-M20-H2-4 | 2.5-4 | 20x1.5 | 15 | 22/23 | 50 |
| NNCG-M20-H3-3 | 2-3 | 20x1.5 | 15 | 22/23 | 50 |
| NNCG-M20-H3-4 | 2.5-4 | 20x1.5 | 15 | 22/23 | 50 |
| NNCG-M20-H4-3.2 | 2-3.2 | 20x1.5 | 15 | 22/23 | 50 |
| NNCG-M20-H5-2.5 | 1.8-2.5 | 20x1.5 | 15 | 22/23 | 50 |
| NNCG-M20-H6-2.5 | 1.8-2.5 | 20x1.5 | 15 | 22/23 | 50 |
| NNCG-M25-H1-6.2 | 4-6 | 25x1.5 | 15 | 27/27 | 50 |
| NNCG-M25-H1-11 | 8-11 | 25x1.5 | 15 | 27/27 | 50 |
| NNCG-M25-H1-14 | 10-14 | 25x1.5 | 15 | 27/27 | 50 |
| NNCG-M25-H1-14 | 4-6 | 25x1.5 | 15 | 27/27 | 50 |
| NNCG-M25-H2-3 | 2-3 | 25x1.5 | 15 | 27/27 | 50 |
| NNCG-M25-H3-5 | 3-5 | 25x1.5 | 15 | 27/27 | 50 |
| NNCG-M25-H4-2.5 | 1.2-2.5 | 25x1.5 | 15 | 27/27 | 50 |
| NNCG-M25-H4-3.5 | 2-3.5 | 25x1.5 | 15 | 27/27 | 50 |
| NNCG-M25-H4-5 | 3.5-5 | 25x1.5 | 15 | 27/27 | 50 |
| NNCG-M25-H5-3 | 2-3 | 25x1.5 | 15 | 27/27 | 50 |
