PRODUCT NAME
Metal reducers, metal enlargers
Thread: Metric, PG, G (PF), and NPT thread
Material: Brass with nickel plated
Application: To allow switching between different thread outside diameter. For example, from large metric external thread to small metric using. We also can make as your request for this product.

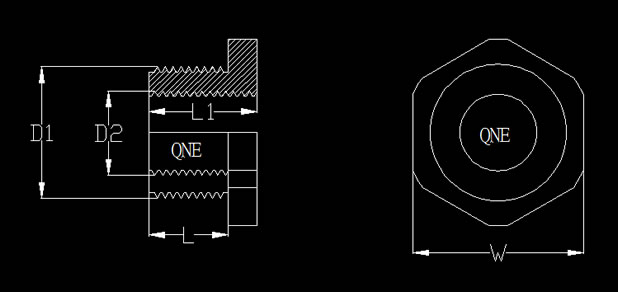

| Thread | Item. No. | Thread length |
Total length |
Spanner size |
Std. Pkg(pcs) |
|
|---|---|---|---|---|---|---|
| External thread |
Internal thread |
|||||
| M16×1.5 | M12×1.5 | M16M12 | 6.0mm | 8.5mm | 18mm | 10 |
| M20×1.5 | M16×1.5 | M20M16 | 6.5mm | 9.0mm | 22mm | 10 |
| M25×1.5 | M20×1.5 | M25M20 | 7.0mm | 10.0mm | 30mm | 10 |
| M32×1.5 | M25×1.5 | M32M25 | 8.0mm | 11.5mm | 40mm | 10 |
| M40×1.5 | M32×1.5 | M40M32 | 9.0mm | 12.5mm | 50mm | 10 |
| M50×1.5 | M40×1.5 | M50M40 | 10.0mm | 14.0mm | 59mm | 10 |
| M63×1.5 | M50×1.5 | M63M50 | 10.0mm | 14.0mm | 67mm | 10 |
| PG9 | PG7 | PG9PG7 | ||||
| PG11 | PG7 | PG11PG7 | ||||
| PG11 | PG9 | PG11PG9 | ||||
| PG13.5 | PG7 | PG13.5PG7 | ||||
| PG13.5 | PG9 | PG13.5PG9 | ||||
| PG13.5 | PG11 | PG13.5PG11 | ||||
| PG16 | PG7 | PG16PG7 | ||||
| PG16 | PG9 | PG16PG9 | ||||
| PG16 | PG11 | PG16PG11 | ||||
| PG16 | PG13.5 | PG16PG13.5 | ||||
| PG21 | PG11 | PG21PG11 | ||||
| PG21 | PG13.5 | PG21PG13.5 | ||||
| PG21 | PG16 | PG21PG16 | ||||
| PG29 | PG13.5 | PG29PG13.5 | ||||
| PG29 | PG16 | PG29PG16 | ||||
| PG29 | PG21 | PG29PG21 | ||||
| PG36 | PG21 | PG36PG21 | ||||
| PG36 | PG29 | PG36PG29 | ||||
| PG42 | PG29 | PG42PG29 | ||||
| PG42 | PG36 | PG42PG36 | ||||
| PG48 | PG36 | PG48PG36 | ||||
| PG48 | PG42 | PG48PG42 | ||||
| PG7 | PG9 | PG7PG9 | ||||
| PG9 | PG11 | PG9PG11 | ||||
| PG11 | PG13.5 | PG11PG13.5 | ||||
| PG11 | PG16 | PG11PG16 | ||||
| PG11 | PG21 | PG11PG21 | ||||
| PG13.5 | PG16 | PG13.5PG16 | ||||
| PG13.5 | PG21 | PG13.5PG21 | ||||
| PG16 | PG21 | PG16PG21 | ||||
| PG16 | PG29 | PG16PG29 | ||||
| PG21 | PG29 | PG21PG29 | ||||
| PG29 | PG36 | PG29PG36 | ||||
| PG36 | PG42 | PG36PG42 | ||||
| PG42 | PG48 | PG42PG48 | ||||
| M16 | M12 | M16M12 | ||||
| M18 | M16 | M18M16 | ||||
| M20 | M12 | M20M12 | ||||
| M20 | M16 | M20M16 | ||||
| M20 | M18 | M20M18 | ||||
| M24 | M20 | M24M20 | ||||
| M25 | M16 | M25M16 | ||||
| M25 | M24 | M25M24 | ||||
| M25 | M20 | M25M20 | ||||
| M27 | M16 | M27M16 | ||||
| M27 | M18 | M27M18 | ||||
| M27 | M25 | M27M25 | ||||
| M30 | M27 | M30M27 | ||||
| M32 | M16 | M32M16 | ||||
| M32 | M20 | M32M20 | ||||
| M32 | M24 | M32M24 | ||||
| M32 | M25 | M32M25 | ||||
| M40 | M25 | M40M25 | ||||
| M40 | M32 | M40M32 | ||||
| M50 | M25 | M50M25 | ||||
| M50 | M32 | M50M32 | ||||
| M50 | M40 | M50M40 | ||||
| M63 | M40 | M63M40 | ||||
| M63 | M50 | M63M50 | ||||
| M12 | M16 | M12M16 | ||||
| M12 | M20 | M12M20 | ||||
| M16 | M18 | M16M18 | ||||
| M16 | M20 | M16M20 | ||||
| M16 | M25 | M16M25 | ||||
| M18 | M20 | M18M20 | ||||
| M20 | M24 | M20M24 | ||||
| M20 | M25 | M20M25 | ||||
| M20 | M32 | M20M32 | ||||
| M25 | M30 | M25M30 | ||||
| M25 | M32 | M25M32 | ||||
| M25 | M40 | M25M40 | ||||
| M30 | M36 | M30M36 | ||||
| M32 | M40 | M32M40 | ||||
| M36 | M48 | M36M48 | ||||
| M40 | M50 | M40M50 | ||||
| PG9 | M16 | PG9M16 | ||||
| PG9 | M20 | PG9M20 | ||||
| PG11 | M20 | PG11M20 | ||||
| PG21 | M20 | PG21M20 | ||||
| PG16 | M25 | PG16M25 | ||||
| PG16 | M32 | PG16M32 | ||||
| PG21 | M32 | PG21M32 | ||||
| PG21 | M40 | PG21M40 | ||||
| PG9 | G3/8L | PG9G3/8L | ||||
| PG11 | G3/4 | PG11G3/4 | ||||
| PG11 | G3/8L | PG11G3/8L | ||||
| PG16 | G1/2 | PG16G1/2 | ||||
| PG16 | G3/4 | PG16G3/4 | ||||
| M16 | G1/2 | M16G1/2 | ||||
| M16 | NPT1/2 | M16NPT1/2 | ||||
| M20 | NPT1/2 | M20NPT1/2 | ||||
| M20 | G1/2 | M20G1/2 | ||||
| M20 | G3/4 | M20G3/4 | ||||
| M25 | G3/4 | M25G3/4 | ||||
| M32 | G1-1/4 | M32G1-1/4 | ||||
| M40 | G1-1/4 | M40G1-1/4 | ||||
| M16 | PG7 | M16PG7 | ||||
| M16 | PG9 | M16PG9 | ||||
| M18 | PG11 | M18PG11 | ||||
| M20 | PG11 | M20PG11 | ||||
| M24 | PG11 | M24PG11 | ||||
| M20 | PG13.5 | M20PG13.5 | ||||
| M20 | PG16 | M20PG16 | ||||
| M25 | PG16 | M25PG16 | ||||
| M30 | PG16 | M30PG16 | ||||
| M32 | PG16 | M32PG16 | ||||
| M25 | PG21 | M25PG21 | ||||
| M32 | PG21 | M32PG21 | ||||
| M24 | PG29 | M24PG29 | ||||
| M40 | PG29 | M40PG29 | ||||
| G1 | M27 | G1M27 | ||||
| G1 | G1-1/4 | G1G1-1/4 | ||||
| G1/2 | PG9 | G1/2PG9 | ||||
| G1/2 | PG11 | G1/2PG11 | ||||
| G1/2 | PG16 | G1/2PG16 | ||||
| G1/2 | PG16T | G1/2PG16T | ||||
| G1/4 | PG16 | G1/4PG16 | ||||
| G3/4 | PG16 | |||||
