PRODUCT NAME
Ventilated Metal Cable Glands
Thread: Metric thread

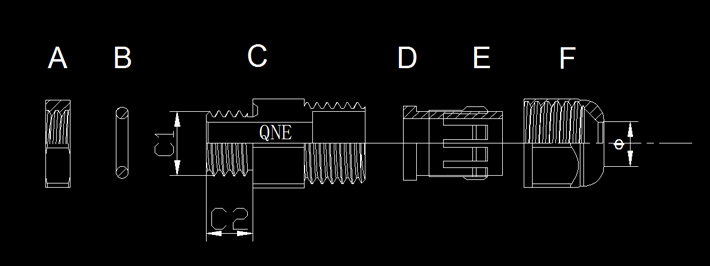

Brass with nickel plated for A. C. F parts, UL approved Nylon PA66 (Flammability UL 94V-2) for E part, EPDM rubber for B. D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Working temperature: -40℃ to 100℃,or instantaneous heat resistance up to 120℃;(can be customized -60 °C to 220 °C)
Features: Cable gland with ventilation function
| Thread | Item. No. | Cable Range |
Thread O. D. |
Thread Length |
Spanner Size |
Std. Pkg |
|---|---|---|---|---|---|---|
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | (pcs) | ||
| M12 x1.5 | TBCG-M12S-6.5 | 3-6.5 | 12 | 7 | 14/14 | 20 |
| M12 x1.5 | TBCG-M12 -5.5 | 3-5.5 | 12 | 8 | 18/18 | 10 |
| M12 x1.5 | TBCG-M12 -7.8 | 4.5-8 | 12 | 8 | 18/18 | 10 |
| M12 x1.5 | TBCG-M12S-5.5-L | 3-6.5 | 12 | 15 | 14/14 | 20 |
| M12 x1.5 | TBCG-M12 -5.5-L | 3-5.5 | 12 | 15 | 18/18 | 10 |
| M12 x1.5 | TBCG-M12 -7.8-L | 4.5-8 | 12 | 15 | 18/18 | 10 |
